1. What Is the Schneider Electric RM6? Core Definition
The Schneider Electric RM6 is a gas-insulated medium-voltage (MV) ring main unit (RMU) designed for 10kV–24kV power distribution. Built for compactness and reliability, it uses SF6 gas insulation to deliver a footprint up to 50% smaller than traditional air-insulated RMUs. As a prefabricated, factory-tested solution, the RM6 reduces on-site installation time, making it ideal for fast-track urban distribution projects and space-constrained environments.
2. Key Design Advantages: Compact & Safe MV Distribution
Compact Footprint
The SF6-insulated design enables ultra-compact dimensions, perfect for underground cable networks, street-side cabinets, and high-rise building electrical rooms. This compactness addresses a top pain point for urban MV power distribution projects where space is at a premium.
Enhanced Safety Features
Hermetically sealed metal enclosures isolate live parts, eliminating arc flash risks and protecting against dust, humidity, and corrosion. All operations—including switching and earthing—are interlocked to prevent human error, aligning with global demands for safe MV switchgear solutions.
Modular & Maintainable
Modular components (load switches, fuses, circuit breakers) enable quick replacement without full system shutdowns. This modularity minimizes downtime, a critical factor for industrial MV power reliability and grid uptime optimization.
3. Operational Flexibility: Manual & Motorized Control

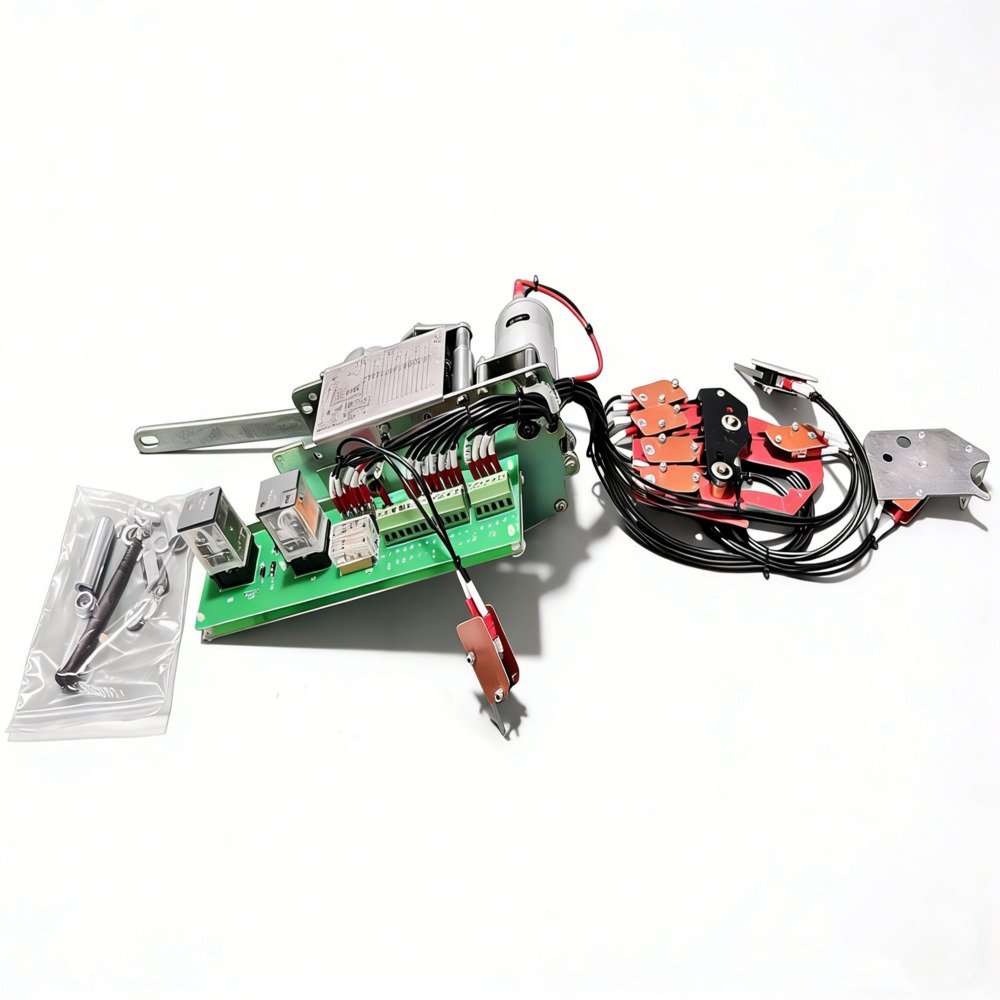

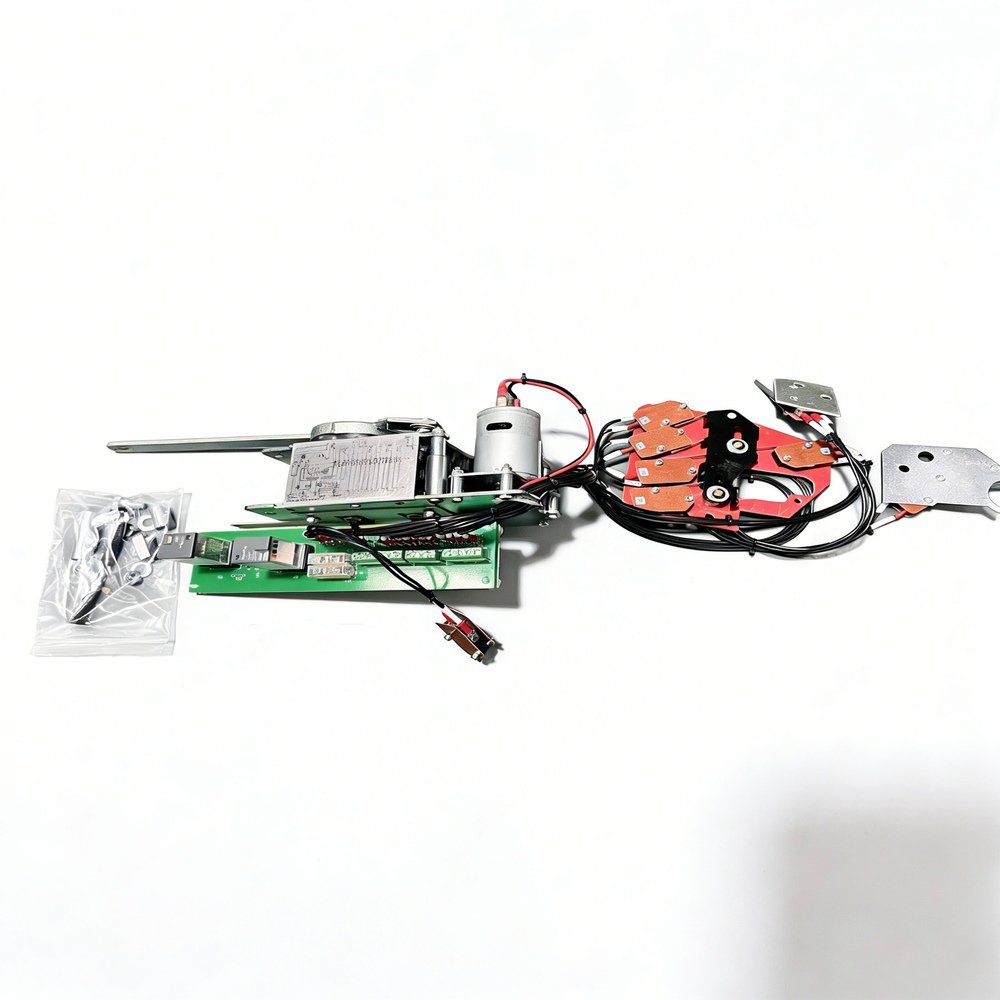

The RM6 supports both manual and motorized operation via the Electric Operating Mechanism for RM6-I Type Ring Main Unit, enabling seamless integration with smart grid automation systems. This purpose-built mechanism delivers reliable remote control for Schneider RM6 and compatible MV switchgear, with features like:
- Dual-mode operation (remote electric + local manual override)
- Precision position feedback via auxiliary contacts
- Mechanical interlocking to prevent misoperation
- Compatibility with Schneider RM6, ABB, and Siemens ring main units
Remote control capabilities allow utilities and industrial operators to monitor and adjust power flow in real time, supporting the shift toward automated MV distribution networks.
4. Global Compliance & Configurability
The RM6 meets international standards (IEC 62271, CE) and regional certifications, making it a trusted choice for international EPC contractors and global MV equipment procurement. Configurations range from basic load-break switches to circuit breaker units, supporting ring, radial, and dual-source topologies—ideal for renewable energy grid integration (solar/wind) and diverse distribution needs.
5. Real-World Applications: Where the RM6 Excels
- Urban Infrastructure: Street lighting, residential complexes, and underground rail networks benefit from its compact, weather-resistant design.
- Industrial & Data Centers: Ensures uninterrupted power for manufacturing plants and data centers, where reliability is non-negotiable.
- Commercial & Rural: Safe, space-saving solutions for hospitals, malls, and remote rural grids, bridging urban-rural power access.
- Automated Grids: Paired with the RM6-I electric operating mechanism, it enables smart grid monitoring and remote operation for modern utility networks.
6. Why Choose the Schneider RM6 for Modern Grids?
For engineers, utilities, and contractors searching for Schneider RM6 specifications, SF6-insulated RMU, or smart grid MV solutions, the RM6 delivers:
- Compact size for space-constrained projects
- Industry-leading safety and reliability
- Modular maintainability to reduce downtime
- Compatibility with smart grid automation via the RM6-I electric operating mechanism
- Global compliance for cross-border projects
As a future-proof MV distribution solution, the Schneider RM6 remains a cornerstone of modern power grids, balancing performance, safety, and adaptability for evolving energy needs.
To unlock full remote automation for your Schneider RM6 ring main unit, explore Xizi Energy’s Electric Operating Mechanism for RM6-I Type Ring Main Unit. Contact our team today for product specs, custom solutions, and bulk pricing.
