ABB SafePlus is a widely‑used compact metal‑enclosed switchgear for medium‑voltage secondary distribution up to 24 kV. Its modular setup accepts vacuum circuit breakers, switch‑fuse units, protection relays and remote‑control modules for varied distribution requirements.

Repeated switching cycles wear mechanical and electrical parts over time. In most field cases, you do not need full cabinet replacement. Targeted inspection, compatibility checks and component swap‑outs deliver the most cost‑effective fix.

This guide targets ABB SafePlus spare parts and SafePlus operating mechanism replacement. It walks through typical faults, compatibility checks, on‑site maintenance workflows, spare‑part planning and procurement tips to help engineers and buyers prevent mismatched parts and keep switchgear reliable.

For related product‑family insights, read our guide on ABB SafeRing spare parts. While SafePlus and SafeRing share some structural features, internal mechanisms and replacement rules differ, so always verify your actual hardware.

What Are ABB SafePlus Spare Parts?

ABB SafePlus spare parts refer to all interchangeable aftermarket components used for the daily operation, status indication, control signal transmission, safety interlocking, and routine maintenance of SafePlus series compact switchgear.

Based on public industry technical specifications for this product family, switchgear spare parts are classified according to installation, commissioning, and long-term operational cycles, with different levels of replacement difficulty. The actual spare part requirements vary significantly depending on on-site equipment voltage level, functional module type, control voltage, and optional configurations.

Commonly replaced SafePlus maintenance components in practical engineering include:

• Standard manual operating mechanisms
• Motorized operating mechanism assemblies
• Auxiliary switches and signal contact sets
• Mechanical safety interlocking components
• Switch position indication accessories
• Low-voltage control accessories and wiring components
• Electromagnetic coils and electrical actuators
• Earthing switch driving operating parts
• Vacuum circuit breaker mechanical components
• Other customized cabinet mechanical and electrical auxiliary parts

High-Failure ABB SafePlus Replacement Parts & Typical Fault Symptoms

Different components of SafePlus switchgear have distinct service lifespans and failure mechanisms. Mechanical parts wear out due to frequent cyclic operation, while electrical components suffer from contact oxidation, coil aging, poor wiring contact, and control circuit anomalies. The following four core component groups are the key focus of daily inspection and replacement.

1. SafePlus Operating Mechanisms

The operating mechanism is the core power execution component of SafePlus switchgear, responsible for converting manual or electric control commands into mechanical switching actions. It is closely linked to equipment safety interlocking and determines the stability of switch opening and closing operations.

Typical abnormal faults of aging mechanisms include:

• Stiff and laborious manual operation
• Incomplete switch opening or closing stroke
• Abnormal mechanical resistance and jamming during operation
• Failure of remote electric control operation
• Inaccurate or delayed switch position indication
• Motor energy storage and charging failure

Key Reminder: Operating mechanism replacement cannot rely solely on external appearance similarity. Mechanical stroke, interlocking logic, and interface dimensions must be fully matched with the original equipment.

2. Auxiliary Switches & Contact Components

Auxiliary contacts provide real-time electrical signal feedback for equipment status indication, automatic control, and remote SCADA monitoring, serving as the core signal transmission unit of switchgear automation systems.

Common failure manifestations of degraded auxiliary contacts:

• Inconsistent on-panel switch status display
• Unstable and intermittent remote signal feedback
• Interlock circuit failure leading to protection anomalies
• Frequent false alarms of the control system
• Mismatch between SCADA remote status and on-site actual status

Before replacement, it is necessary to verify contact combination logic, terminal arrangement, installation method, and electrical rated parameters to avoid signal mismatch after installation.

3. Motorized Operating Components

Motorized operating assemblies are essential supporting components for SafePlus switchgear applied in distribution automation, unattended substations, and remote fault isolation systems. Many engineering teams simply match the motor voltage during replacement, which easily causes overall system incompatibility.

Qualified motorized component replacement requires full‑system verification, including motor electrical parameters, mechanical connection interface, control circuit logic, operating stroke, and position feedback signal matching, to ensure coordinated operation with the original equipment control system.

For C‑module RMU retrofits, the 7S‑SC motorized operating mechanism for C‑module RMU offers drop‑in aftermarket‑compatible performance.

For F‑cabinet RMU upgrade projects, the 7S‑SF motorized operating mechanism for F‑cabinet RMU delivers drop‑in aftermarket‑compatible performance for field replacement.

For V‑cabinet aftermarket replacement scenarios, the 7S‑SV V‑cabinet motorized operating mechanism supports compatible retrofits for matching RMU units.

For comprehensive guidance covering mechanism selection, compatibility validation and field retrofit workflows, read our RMU Motorized Operating Mechanism: Replacement and Retrofit Guide.

4. Interlocking & Position Indication Components

Interlocking components belong to safety-level structural parts, which undertake the anti-misoperation protection function of switchgear. Any replacement part must completely restore the original mechanical action sequence and prevent dangerous operating combinations.

Based on public industry specifications, SafeRing and SafePlus share many mechanical operating interfaces, but internal module designs vary greatly. On-site configuration confirmation is mandatory before ordering any interchangeable components to eliminate safety hazards.

Complete Parameter List for Accurate SafePlus Spare Part Selection

The most common mistake in spare part procurement is relying only on the “SafePlus” series name for matching. Generic series labels cannot reflect the differences in internal mechanism and module configuration, which is the main cause of replacement failure.

To ensure 100% compatibility of ABB SafePlus replacement parts, please collect and provide the following complete technical information for supplier verification:

No.	Required Technical Information	Function & Purpose
1	Switchgear model & full configuration	Confirm overall cabinet design standards
2	Rated voltage (12kV/17.5kV/24kV)	Match insulation and electrical standards
3	Rated working current	Verify current-carrying component adaptability
4	Functional module type (VCB/Switch-fuse/Cable switch)	Distinguish different mechanism structures
5	Operation mode (Manual / Motorized)	Confirm power drive structure
6	Control voltage (AC/DC & exact value)	Avoid coil and motor burnout
7	Original part number or component code	Improve matching accuracy
8	Equipment nameplate complete data	Verify factory configuration parameters
9	Multi-angle photos of faulty assembly	Visual comparison for dimensional verification

Four-Dimensional Compatibility Verification for SafePlus Compatible Spare Parts

Aftermarket compatible spare parts cannot be judged by appearance alone. Professional engineering verification must be carried out from four dimensions to ensure no functional failure after installation.

1. Mechanical Compatibility

Verify all physical connection and operating parameters, including mounting hole position, shaft size, overall outline dimension, fixing method, mechanical operating stroke, action direction, and matching degree with the original mechanism interface. Many parts with identical appearance fail to operate normally due to different stroke lengths or shaft positions.

2. Electrical Compatibility

Physical consistency does not represent electrical consistency. It is necessary to confirm control voltage type, coil and motor electrical characteristics, contact combination logic, terminal layout, and insulation withstand standards to avoid circuit faults and component burnout.

3. Functional Compatibility

Replacement components must completely replicate the original functional logic. For example, position feedback contacts need to output standard electrical signals matching the control system; motorized mechanisms need to execute complete opening and closing sequences, not just simple mechanical rotation.

4. Configuration Compatibility

SafePlus switchgear supports multiple module combinations. Spare parts must be matched with the actual installed functional modules on-site, and universal generic parts are not applicable to customized cabinet configurations.

SafePlus Maintenance Decision: Component Repair or Replacement?

In on-site maintenance work, engineers need to scientifically judge whether to repair or replace faulty components. The standard processing flow is: On-site Inspection → Fault Root Cause Analysis → Component Condition Evaluation → Compatibility Verification → Installation & Commissioning Test.

Priority Replacement Scenarios

Direct replacement is recommended in the following situations:

• Severe mechanical wear, deformation or corrosion of components
• Burned and damaged electrical contact surfaces
• Permanent failure of coils and drive motors
• Unstable mechanism operation that cannot be adjusted and repaired
• Recurring faults after multiple on-site repairs

On-Site Repair Scenarios

For faults caused by loose wiring terminals, surface dust contamination, and minor mechanical position deviation, on-site cleaning, fastening and debugging can solve the problem without component replacement.

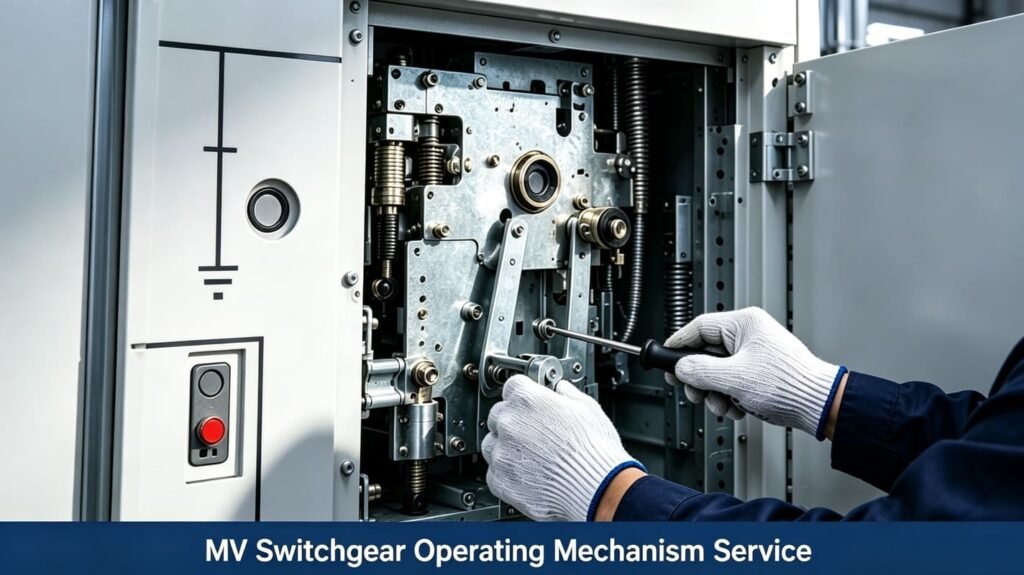

ABB RMU Operating Mechanism Replacement On-Site Checklist

ABB RMU operating mechanism replacement is the most frequent and core maintenance project for SafePlus switchgear. Complete parameter collection before construction can effectively avoid installation mismatch and secondary disassembly.

Inspection Category	Key Verification Content
Equipment Configuration	SafePlus cabinet functional module type
Voltage Level	12kV / 17.5kV / 24kV rated voltage
Operation Mode	Manual operation or motorized electric operation
Control Power Supply	AC/DC type and exact rated voltage
Signal Feedback	Auxiliary contact layout and position indication logic
Installation Interface	Mounting size and shaft matching parameters
Application Scenario	Local operation or remote automatic control

Safety Note: The replacement and commissioning of medium-voltage switchgear core components must be operated by qualified professional electricians in accordance with site safety specifications to avoid operational risks.

Scientific SafePlus Spare Parts Inventory Strategy

It is unnecessary for power stations and industrial enterprises to stock all types of spare parts. The inventory plan should be formulated based on equipment operating frequency, service life, environmental conditions and downtime loss. Priority stocking of core vulnerable parts can effectively reduce emergency maintenance time and power outage risks.

Recommended priority inventory components:

• Commonly used auxiliary contacts and signal feedback accessories
• Core wearing parts of operating mechanisms
• Motorized drive components for remote control equipment
• Control circuit accessories and electromagnetic coils
• Long lead-time customized mechanical components

Fast Quotation Guide: Information for SafePlus Spare Part Procurement

To improve quotation accuracy and delivery efficiency, users can provide the following complete materials to suppliers for one-time compatibility confirmation:

• Clear equipment nameplate photos
• Multi-angle detailed photos of faulty components (front, side, shaft and mounting area)
• Overall cabinet front photo
• Original part number (if available)
• Rated voltage and control voltage parameters
• Cabinet module type and operation mode
• Procurement quantity and on-site application requirements

In the absence of original part numbers, high-definition photos and dimensional sketches can also support professional customized compatible solutions.

Common Procurement & Replacement Mistakes to Avoid

• Solely relying on brand model: The SafePlus series contains dozens of internal configurations, and series naming cannot determine part compatibility.
• Judging fitness by appearance: Similar appearance does not mean consistent mechanical stroke and electrical parameters.
• Ignoring control voltage differences: Mismatched AC/DC voltage will directly burn coils and motor components.
• Misjudging faulty components: Signal anomalies may come from wiring and auxiliary contacts, not the main operating mechanism.
• Neglecting configuration verification: Generic parts cannot adapt to customized SafePlus module structures.

FAQ for ABB SafePlus Spare Parts & Maintenance

1. Are compatible aftermarket SafePlus spare parts reliable?

Yes. Professional aftermarket compatible components are engineered to fully match the original mechanical, electrical and functional interfaces. With strict compatibility verification, they can completely replace original parts and ensure long-term stable operation of switchgear.

2. What is the difference between OEM parts and compatible replacement parts?

OEM parts are produced by the original equipment manufacturer. Aftermarket compatible parts are independently manufactured components that meet all industry-standard interface parameters. They are cost-effective alternatives and not genuine OEM products.

3. Can I replace only the operating mechanism instead of the whole cabinet?

Yes. If the cabinet body, gas tank and main insulation system are intact, independent replacement of the failed operating mechanism is a mature and economical maintenance solution.

4. Are SafeRing and SafePlus spare parts interchangeable?

The two product families share partial operating interface designs, but their internal module structures and mechanism parameters are different. On-site configuration verification is mandatory before replacement to avoid mismatch.

5. How often should SafePlus switchgear be maintained?

There is no fixed unified cycle. The maintenance frequency depends on operating environment, switching times, temperature and humidity conditions. Condition-based maintenance is more scientific than regular fixed-cycle inspection.

Final Pre-Order Engineering Checklist

Confirm the following items one by one before purchasing ABB SafePlus spare parts to eliminate hidden operational risks:

• Equipment model and complete module configuration
• Rated voltage and control voltage parameters
• Original component part number and dimensional data
• Mechanical and electrical interface matching degree
• On-site operating environment and application requirements
• Post-installation testing and commissioning standards

Final Takeaway

The core of SafePlus switchgear maintenance is accurate compatibility matching and complete functional restoration. Blind pursuit of low-cost parts or neglect of parameter verification will lead to secondary faults and higher maintenance costs. Professional aftermarket compatible spare parts can fully restore the safety and operating performance of medium-voltage switchgear with higher cost performance.

If you need technical compatibility confirmation and quotation support for ABB SafePlus operating mechanisms and supporting spare parts, please send us your equipment nameplate information and faulty component photos. Our professional engineering team will provide one-to-one precise matching and technical solutions.
