RMU Spare‑Parts Complete Replacement & Maintenance Guide
Important Notice: ABB SafeRing is a trademark owned by ABB Group. This article references the product name solely for technical identification and compatibility reference. Xizi Energy is an independent manufacturer offering aftermarket compatible medium voltage switchgear components. All compatible spare parts offered are third-party manufactured and are NOT genuine ABB OEM components, unless formally confirmed in writing. Users must fully verify dimensional, mechanical and electrical compatibility prior to procurement and installation.
Compact medium-voltage ring main units are widely deployed within secondary power distribution networks. After long-term field operation, mechanical operating assemblies, auxiliary devices, position indicators and control accessories will require regular inspection, servicing or targeted replacement.
For field engineers and procurement teams searching for ABB SafeRing spare parts, the core challenge is often not finding replacement components, but answering these key questions:
Which assemblies require replacement? How do I confirm a compatible replacement unit? Should a faulty component be repaired or replaced entirely?
This practical engineering guide covers common ABB SafeRing replacement parts, core maintenance requirements and spare part selection principles for this class of gas-insulated RMU.
What Are Compatible Spare Parts for Compact Ring Main Units?
Compatible spare parts are interchangeable assemblies used to restore the stable operating performance of sealed ring main unit equipment, also known as ABB SafeRing replacement parts.
Depending on cabinet configuration and service life, typical replacement items include:
- Manual operating mechanisms
- Motorized operating mechanisms
- Auxiliary switches
- Position indication assemblies
- Control and monitoring accessories
- Mechanical interlocking components
- Earthing switch drive assemblies
- Low voltage control modules
- Voltage indication accessories
- Other mechanical and electrical auxiliary fittings
Official equipment maintenance documentation recommends maintaining targeted spare part inventory aligned with the full equipment lifecycle. Having critical components on hand helps shorten maintenance response time and reduce unexpected power outages.
Not every accessory needs replacement simply due to years of service. Component replacement decisions should be based on inspection results, actual operating condition, switching cycles, operating environment and physical wear.
Common Signs That RMU Components Require Replacement (Compatible for ABB SafeRing)
A frequent maintenance error is replacing parts based purely on equipment age. Condition-based assessment delivers better accuracy and cost control.
Difficult Manual Operation of the Operating Mechanism
If closing or opening actions require abnormal force, run unevenly, or fail to complete the full operating sequence, stop operation and perform a full inspection.
Common root causes include mechanical wear, corrosion, surface contamination, damaged springs or connecting linkages, degraded lubrication, assembly misalignment and internal component failure.
Unreliable Electrical Remote Operation
For motorized functional units, a typical fault symptom: manual local operation works normally, yet remote electrical switching fails.
This fault is not always caused by a failed drive motor. Potential issues may come from supply voltage, control wiring, auxiliary switch contacts, interlock circuits, position limit feedback, the main operating mechanism or external automation relays.
Replacing the motor without full circuit troubleshooting will create unnecessary procurement costs.
Mismatched Position Indication
When the on-panel position indicator conflicts with the actual mechanical switch state, serious operational safety risks arise.
Before returning the cabinet to service, inspect the operating mechanism, auxiliary contacts, wiring harnesses and full indication loop.
RMU On‑site Maintenance Checklist for Field Engineers (Compatible for ABB SafeRing)
Proper ABB SafeRing maintenance follows a standard workflow covering external mechanical assemblies and the complete electrical control circuit, and a complete ABB SafeRing maintenance checklist will help field technicians avoid missed inspection items.
Visual Inspection
Check for dust accumulation, surface corrosion, moisture ingress, damaged coating, abnormal mechanical wear, overheating traces and partial discharge marks, as well as broken auxiliary accessories.
Mechanical Function Test
Conduct testing under approved safety procedures:
Verify smooth manual operation, correct open/close sequences, reliable earthing switch action, valid mechanical interlocks, spring assembly integrity and accurate position feedback.
For motorized cabinets, complete electrical function testing under controlled conditions, with remote control disabled during maintenance.
Electrical Control Circuit Inspection
Inspect auxiliary contacts, control terminals, wiring harnesses, motor power supply, local/remote switching circuits, position feedback signals and interlock loops.
This step is critical when troubleshooting operating mechanism faults, as mechanism damage and control circuit faults often produce identical external symptoms.
Operating Mechanism Replacement Guidelines
The ABB SafeRing operating mechanism is the core moving assembly that executes switching commands inside the ring main unit.
Plan for full ABB SafeRing operating mechanism replacement when inspections uncover severe mechanical wear, heavy corrosion, broken parts or unstable operation that cannot be repaired economically.
Typical warning signs:
Excessive operating force, incomplete opening or closing, repeated operation failure, inconsistent mechanical position feedback, excessive linkage play, corrosion on moving parts, frequent motor operation failure and abnormal running noise.

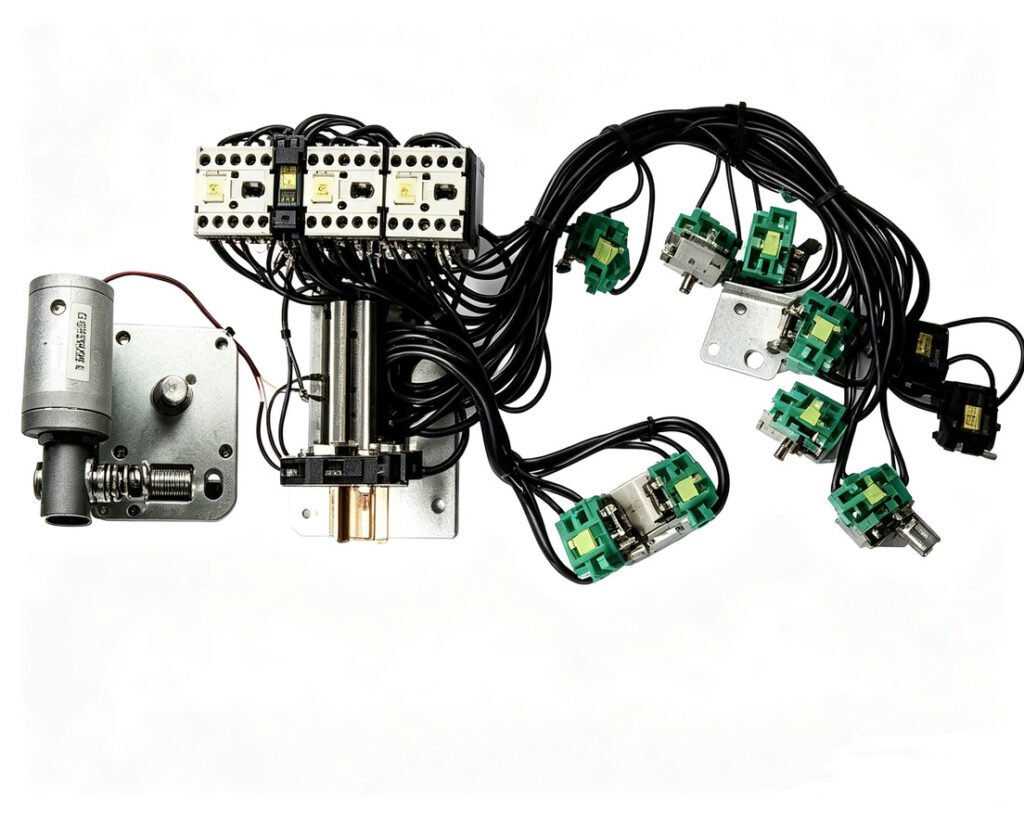

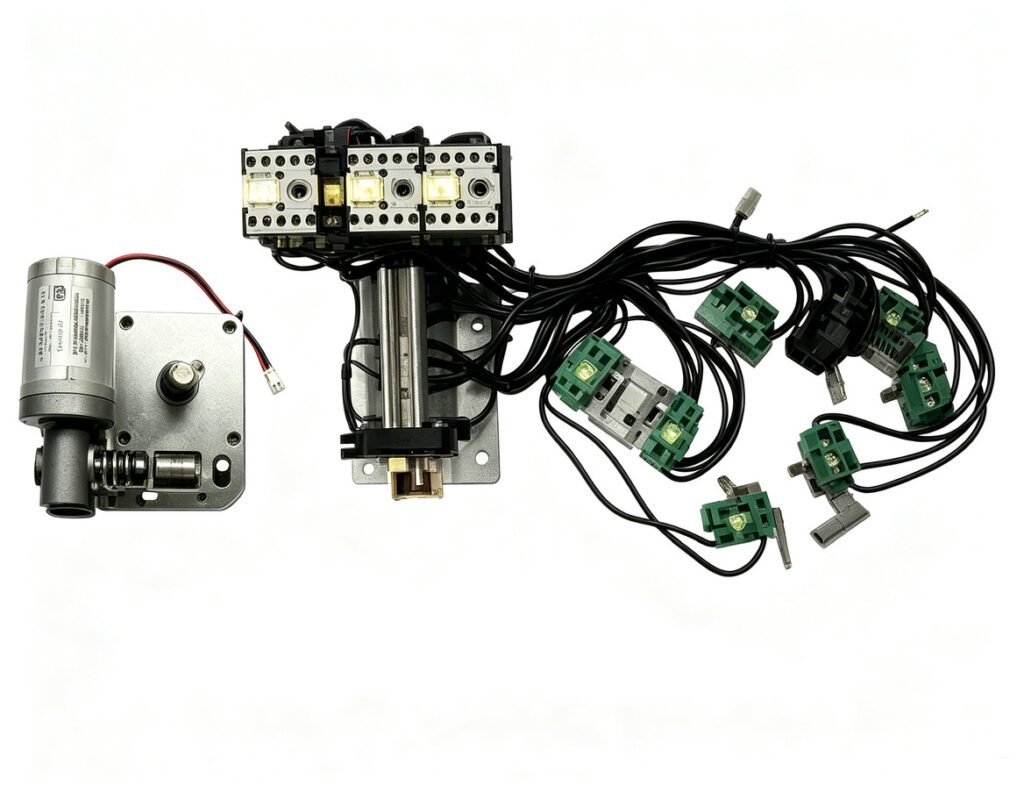

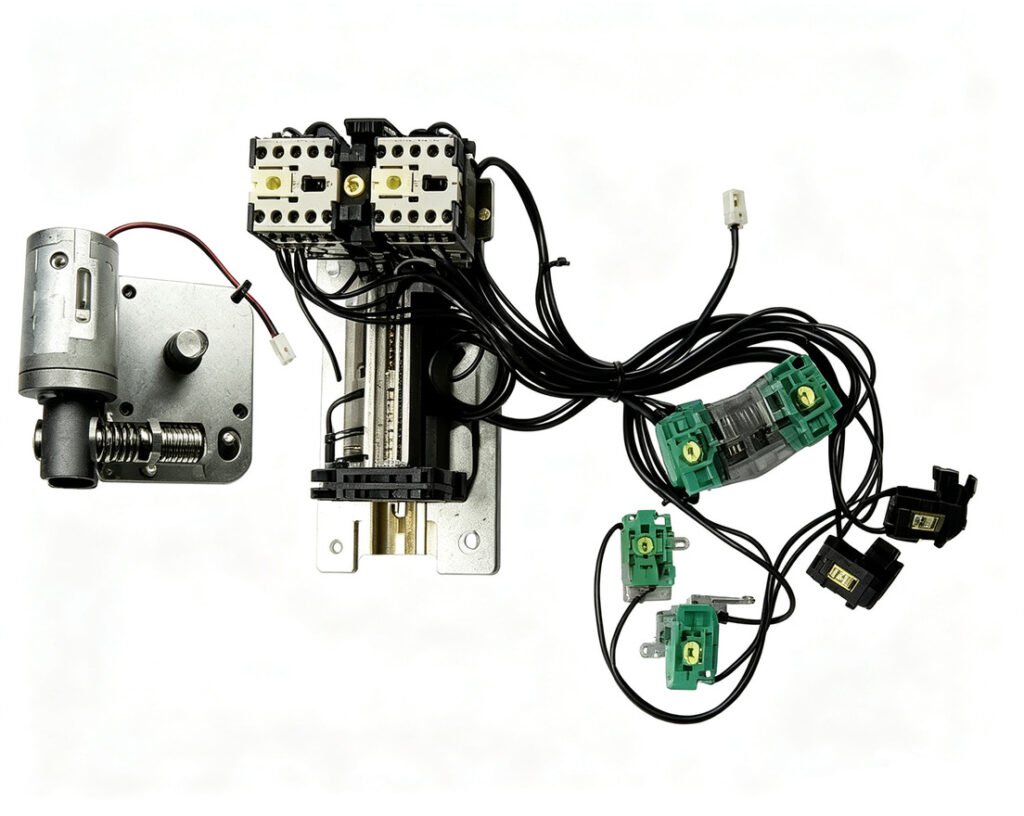

For ageing switchgear, replacing the whole mechanism assembly such as the motorized operating mechanism for RMU C cabinet, motorized operating mechanism for RMU F cabinet or motorized operating mechanism for RMU V cabinet is often more practical than repairing multiple worn individual parts, provided the replacement unit matches the cabinet design specifications.
Required Technical Data Before Ordering a Replacement Mechanism
Do not select components using only the general equipment name. Provide suppliers with the full information below:
Original cabinet model, rated voltage, rated current, switch functional configuration, manual or motorized design, existing mechanism model, control voltage (AC / DC), auxiliary contact layout, photos of the original assembly and nameplate technical data.
Clear photos of the existing mechanism effectively eliminate compatibility errors before formal quotation. For motor drive assemblies, matching control voltage is mandatory.
Motorized Operating Mechanism for Distribution Automation
Modern power distribution networks require increasing remote monitoring and switching capability. The ABB SafeRing motorized operating mechanism is a key retrofit component for projects including distribution automation, SCADA integration, unattended substations, feeder automation and remote fault isolation.
A motorized mechanism operates as part of a complete control system instead of a standalone component. Before retrofit, engineers must confirm mechanical compatibility, control voltage specifications, auxiliary contact layout, interlock design and remote control logic. Physical size matching alone is not sufficient for safe installation.

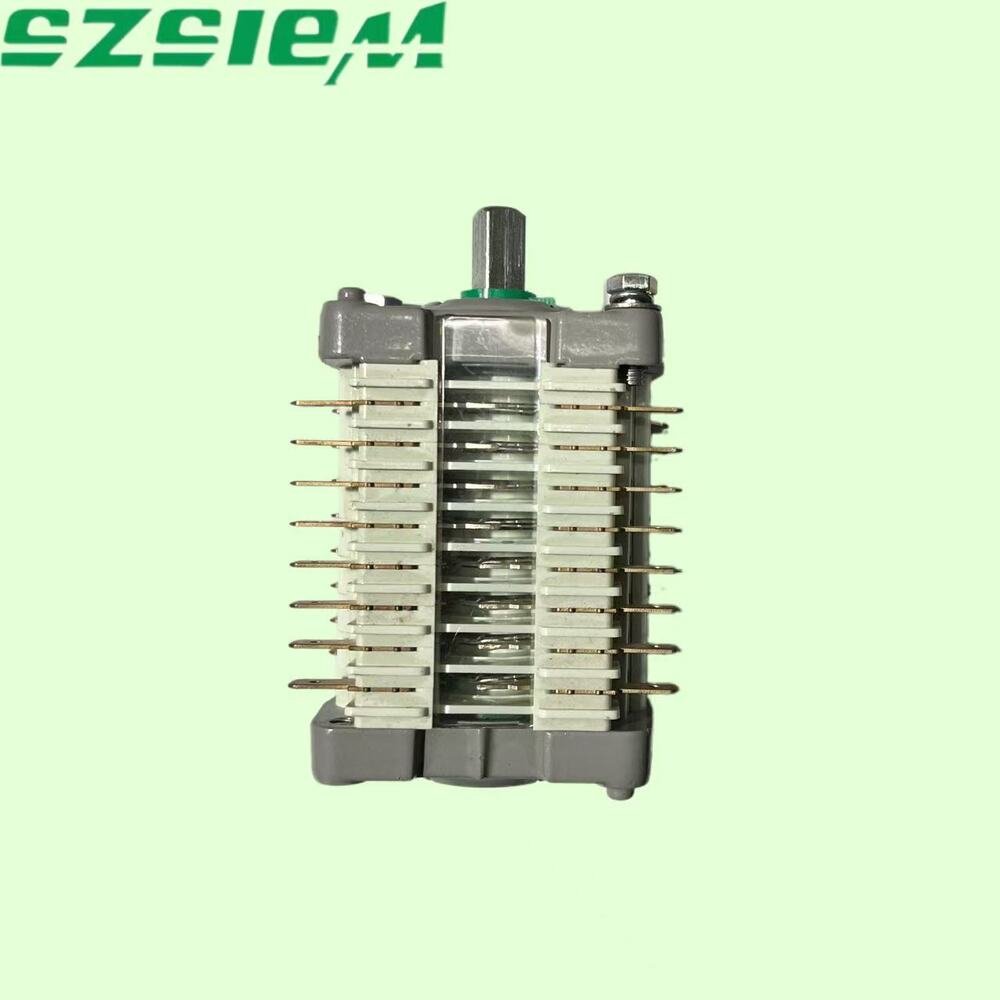

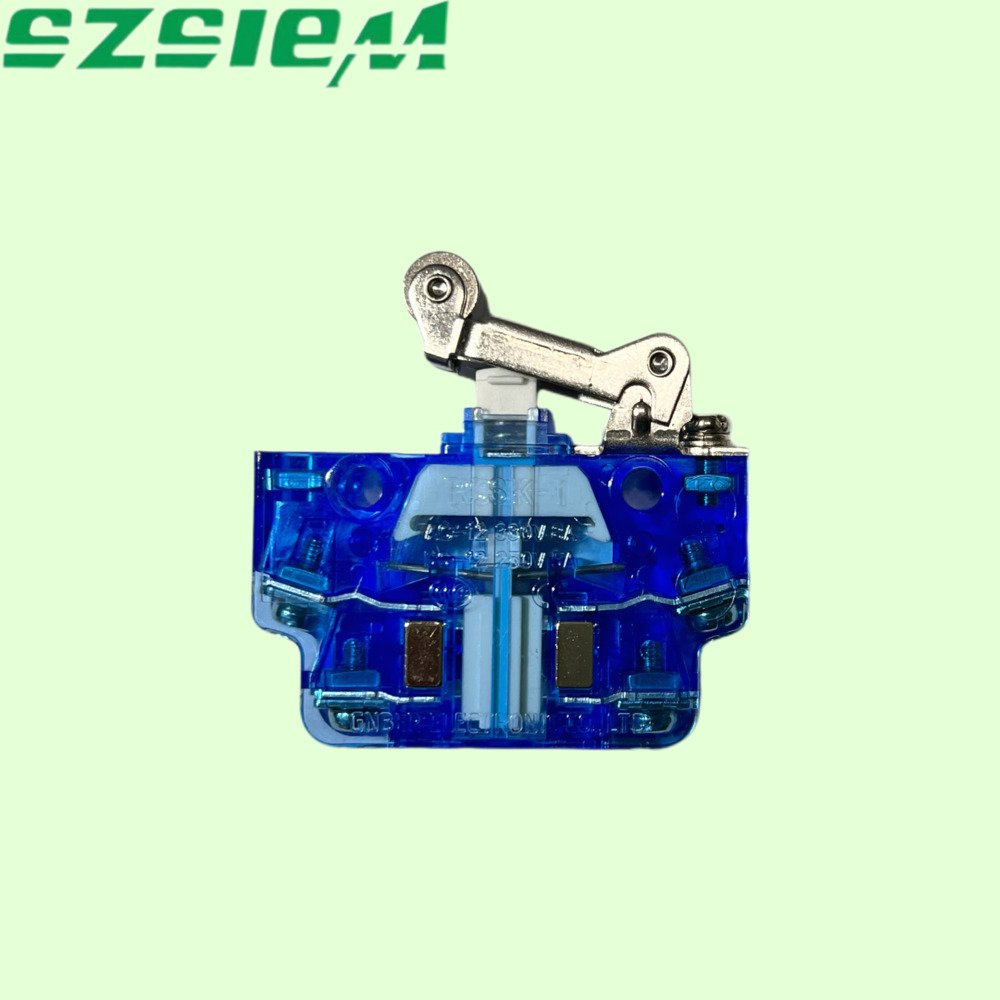

Frequently Replaced RMU Auxiliary Accessories Compatible for ABB SafeRing
Common ABB SafeRing accessories cover a wide range of small components. Maintenance teams should prioritize parts related to position feedback, local status indication, remote monitoring, safety interlocks, control circuits and operating status signalling, including the F6 multi-pole auxiliary switch and RSK1 roller auxiliary limit contact.
Some accessories remain functional for decades, while others degrade quickly due to repeated mechanical cycling, corrosion, dust pollution or electrical arcing. Every replacement decision must reference the actual component condition and cabinet functional requirements.
How to Source ABB SafeRing Compatible Spare Parts
Many procurement teams look for ABB SafeRing compatible spare parts as a cost-effective alternative to OEM components, and also search broadly for ABB RMU spare parts for full cabinet maintenance.
For utility operators, industrial power facilities and switchgear service contractors, stocking every possible spare part creates unnecessary capital pressure. A better strategy divides components into three tiers:
- Critical spare parts: assemblies whose failure leads to long downtime, such as operating mechanisms, motor drive units and core control components
- Maintenance spare parts: components commonly required during planned overhaul and routine troubleshooting
- Low-priority spare parts: rarely replaced accessories that can be sourced on demand
Lifecycle spare part planning helps speed up on-site repair work. Sites running multiple identical ring main units can reduce maintenance complexity by stocking shared compatible components.
Recommended Maintenance Frequency
There is no universal fixed inspection interval suitable for all installations. Maintenance cycles depend on operating mode, total switching operations, ambient temperature and pollution levels. Standard specifications recommend periodic inspection under normal indoor operating conditions, with shortened intervals for harsh environments.
Cabinets installed in clean indoor substations follow different maintenance rules compared with units exposed to coastal salt spray, heavy dust, high humidity, chemical pollution, extreme temperature and frequent switching cycles. Condition-based maintenance delivers better safety and cost control than rigid calendar-based servicing.
How to Select a Qualified Supplier of Compatible Replacement Parts
Product price should not be the primary selection factor for medium voltage spare components. A professional supplier needs to provide:
- Formal compatibility verification against your cabinet configuration
- Technical documentation: dimension drawings, electrical specifications and installation guides
- Confirmation of matching control voltage for motorized assemblies
- Photo comparison service to verify replacement part fit
- Full engineering application support instead of simple quotation
For export projects, confirm packaging standards, production lead time, part marking specifications and after-sales technical support before placing orders.
Compatible Spare Part Replacement vs Full Cabinet Renewal
A faulty auxiliary accessory does not require replacement of the entire ring main unit.
If the sealed gas tank and primary insulation system remain intact, replacing only the failed external mechanism or auxiliary accessory is usually the more economical solution.
Evaluate the following factors before making a final decision: cabinet age, fault severity, primary insulation health, mechanical wear level, spare part availability, total repair cost, planned downtime and future automation upgrade requirements.
According to official technical documentation, components sealed inside the gas tank are designed for maintenance-free operation over the rated service life, while external operating mechanisms and auxiliary fittings are accessible for inspection and replacement. This distinction forms the foundation of a reasonable long-term maintenance strategy.
FAQ for RMU Spare Parts Selection & Retrofit
What critical spare parts should be kept in stock?
For sites where power downtime creates high losses, manual operating mechanisms, motor drive assemblies and key control auxiliary components are the highest priority. The exact inventory list should match your installed cabinet models and operating environment.
Can the operating mechanism be replaced separately?
Replacement is feasible when the mechanism is externally accessible, and the new assembly fully matches the original mechanical, electrical and interlock specifications. Always complete compatibility verification before installation.
Can I retrofit a motorized drive onto an existing ring main unit?
Motorization retrofit is subject to the original cabinet structure and mechanism design. Engineers must confirm mechanical interface dimensions, control voltage, auxiliary contact layout, interlock design and remote control logic before selecting the motor kit.
How do I identify the correct compatible replacement part?
Start with the cabinet nameplate, functional unit layout, photos of the existing assembly, mechanism type, control voltage and auxiliary contact requirements. Providing these details to suppliers greatly reduces ordering errors, compared with searching by generic equipment names only.
How often should ring main unit maintenance be performed?
Inspection cycles depend on operating conditions, switching frequency and ambient environment. Industry best practice recommends adjusting maintenance intervals based on real operating data, rather than applying one fixed schedule to all installations.
Where can I source compatible aftermarket replacement assemblies?
Independent manufacturers and professional aftermarket suppliers offer compatible operating mechanisms and related electrical accessories. Before purchase, confirm compatibility and clearly distinguish third-party compatible assemblies from original OEM factory parts.
Final Takeaway
Effective spare part management for compact gas-insulated ring main units relies on proactive planning instead of emergency breakdown repairs.
The complete workflow should include regular visual and functional inspection, component condition assessment, critical spare part inventory planning, pre-order compatibility verification and timely targeted replacement.
For operating mechanisms and motorized retrofit kits in particular, correct part selection depends fully on the original cabinet layout, mechanism design, control voltage and required switching functions.
Xizi Energy independently manufactures compatible medium voltage switchgear assemblies, including motorized operating mechanisms and supporting auxiliary accessories. For spare part inquiries, share photos of the existing assembly, equipment nameplate data and control voltage requirements, and our engineering team will complete compatibility confirmation before quotation.
