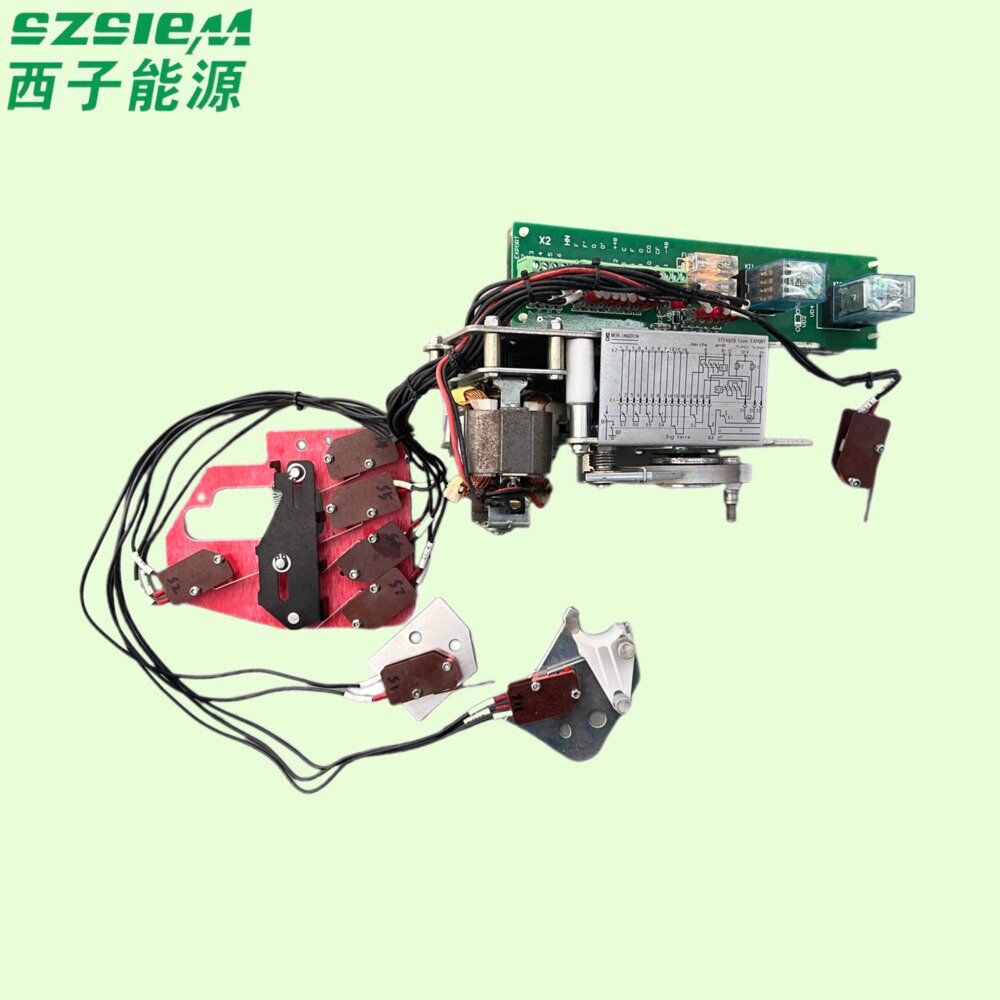

The 7S-RM-IM is a motor-driven electric operating mechanism, engineered as RM6 operating mechanism replacement & retrofit spare part for compatible 12kV/24kV SF6 ring main units.
This RMU electric operating mechanism transforms control signals into mechanical motion, supporting remote automated switching via SCADA and local manual emergency operation.
Suitable for switchgear makers, maintenance teams and power contractors undertaking RM6 operating mechanism motorization & replacement, RMU upgrades and actuator replacement. It works as a dependable load break switch operating mechanism for matched RM6 setups.
Compatibility Notice:
As a dedicated motorized operating mechanism for RMU, the unit enables electrically driven switching to integrate with control panels, SCADA and distribution automation systems. Manual emergency operation is retained for power-off maintenance and commissioning. Reinforced mechanical interlocks avoid unsafe misoperation on site.
All our SF6 insulated RMU assemblies rely on accurate gas density monitoring; if you frequently encounter low-pressure nuisance alerts on your ring main units, read our technical article covering SF6 density gauge false alarms caused by temperature fluctuation to diagnose and eliminate unnecessary site visits.
| Item | Specification |
|---|---|
| Model | 7S-RM-IM |
| Product Type | Electric Operating Mechanism / Motorized Operating Mechanism |
| Use Case | RM6 mechanism replacement, retrofit, spare part |
| Rated Voltage Class | 12kV / 24kV Medium Voltage |
| Driving Mode | Motor-driven |
| Target Equipment | RM6-compatible SF6-insulated RMU / Ring Main Unit |
| Operation Mode | Remote electric control + local emergency manual operation |
| Control Supply | AC/DC configurable (Confirm voltage before order) |
| Installation | Direct-fit into compatible RMU mechanism compartment |
| Customization | Mechanical & electrical configuration support available |
Xizi Energy specialises in medium voltage switchgear components, RMU spare parts and RM6 electric operating mechanisms for global power distribution clients.
We provide full technical support: configuration verification, mechanical interface confirmation, voltage matching and customised solutions for RMU operating mechanism replacement projects.
Q: Is 7S-RM-IM an original SchneiderRM6 spare part?
A: No. This is an independently produced compatible RM6 operating mechanism, not manufactured or authorised by Schneider Electric.
Q: Does it fit all RM6 ring main units?
A: Compatibility varies by production batch, switch function and control configuration. Technical confirmation is required prior to purchase.
Q: Can this unit act as load break switch operating mechanism for RM6?
A: Yes, for matched compatible RM6 load break switch configurations. Share equipment photos for verification.
Q: What details do you need for quotation of RM6 operating mechanism replacement?
A: RMU nameplate, existing mechanism photos, AC/DC control voltage and required switching function.
Q: Can you support OEM customized RMU motorized operating mechanism?
A: Yes, we support tailored mechanical interfaces and electrical circuits for bulk project orders.
Looking for RM6 operating mechanism replacement, RMU electric operating mechanism or medium voltage RMU spare parts?
Send us your RMU nameplate and photos of the existing mechanism. Our engineering team will confirm the correct 7S-RM-IM configuration for your project.
