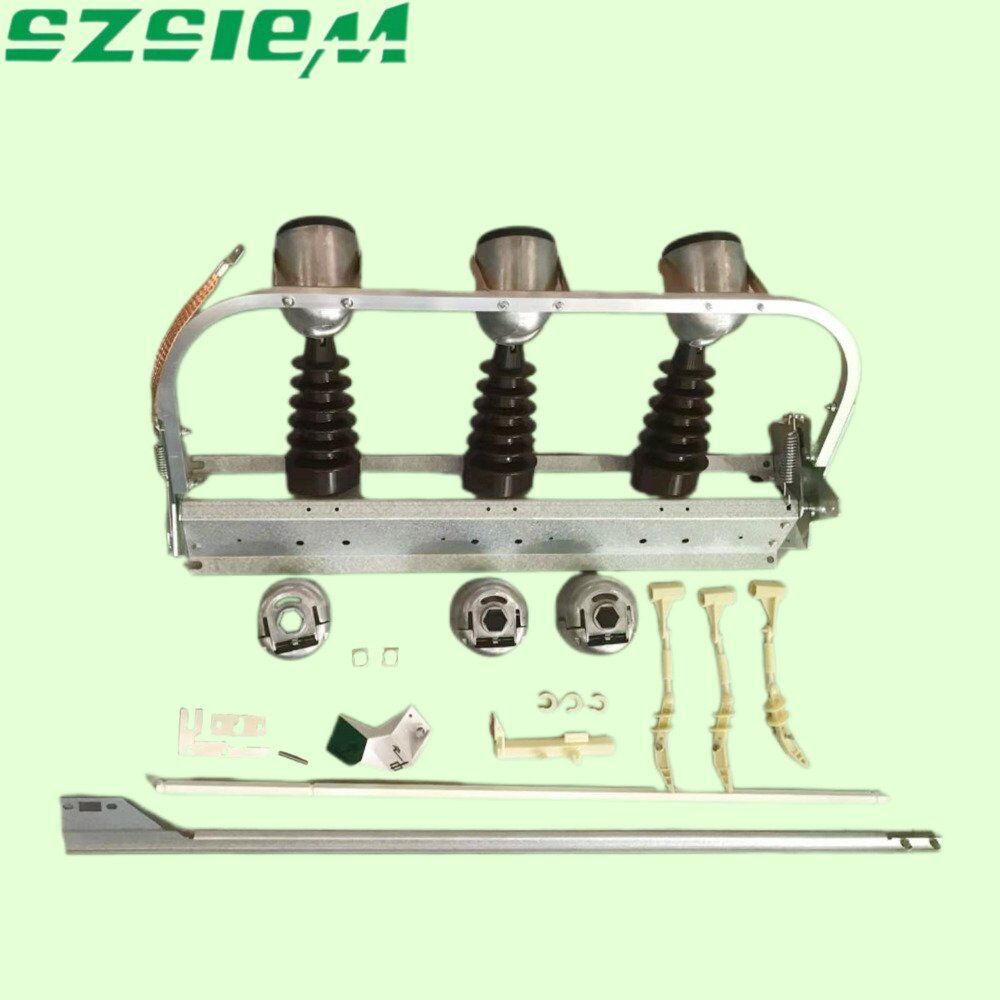

The 12~24kV indoor high-voltage grounding switch is a safety protection device, not an operational switch for interrupting load current.

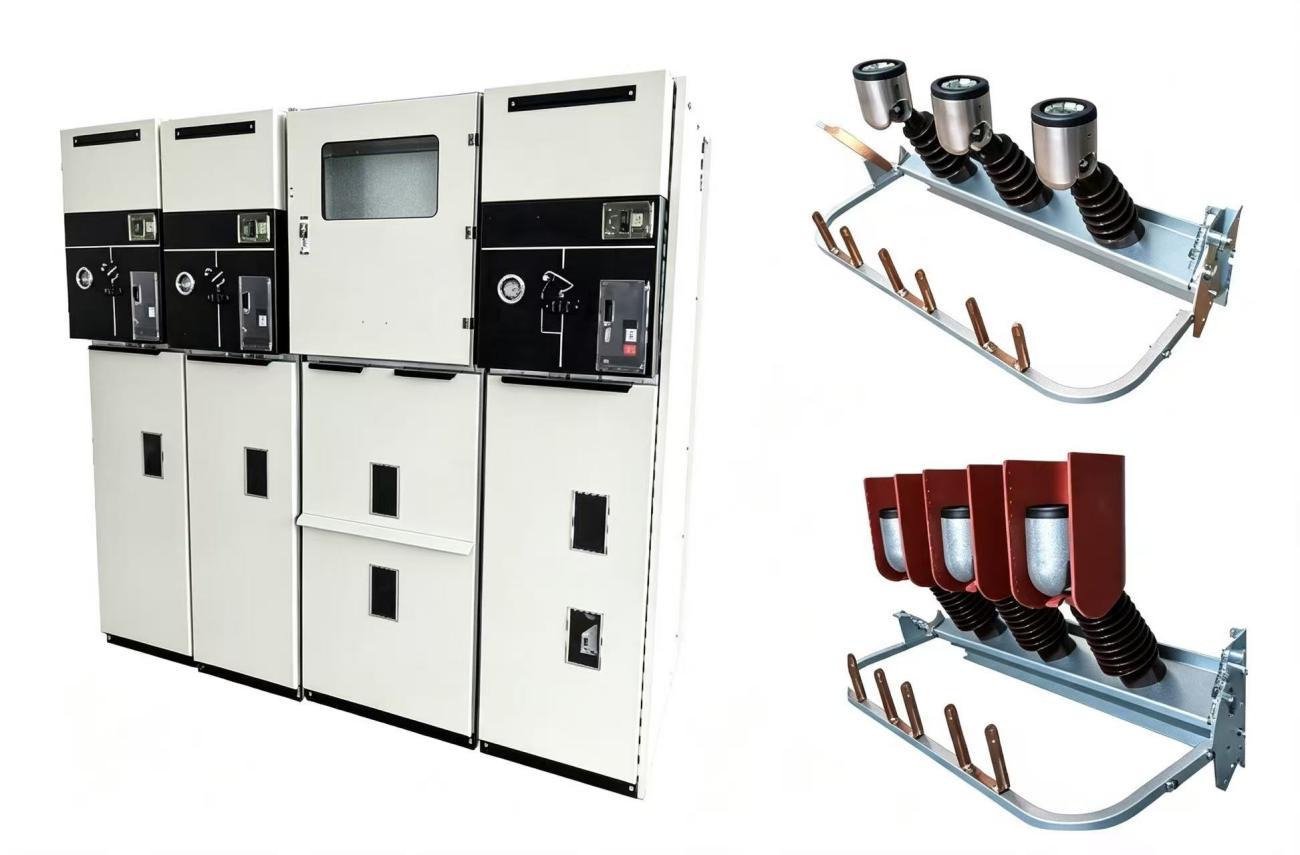

Primarily installed within high-voltage switchgear, it provides reliable personnel safety grounding for equipment undergoing power-off maintenance.
This 12/24kV earthing switch is used for medium voltage power system safety protection. It offers stable performance, simple structure and safe operation for substation and industrial use.

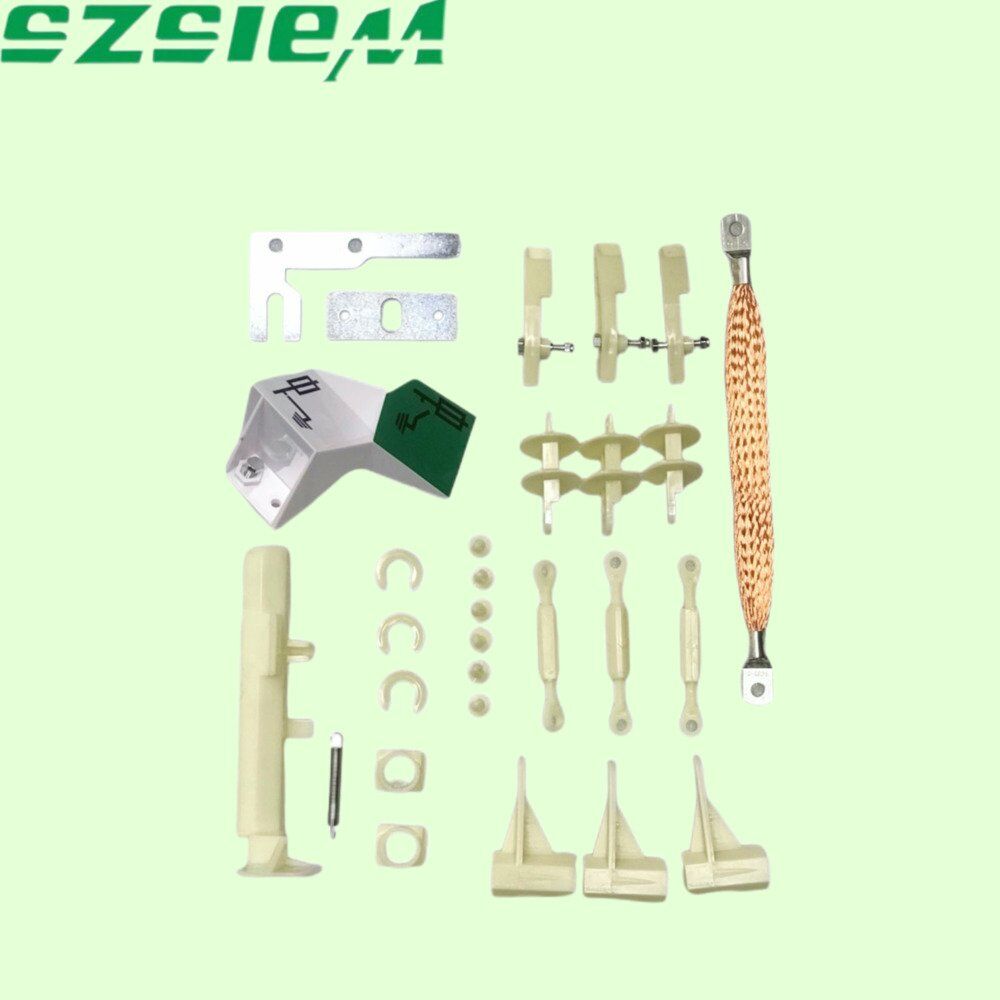

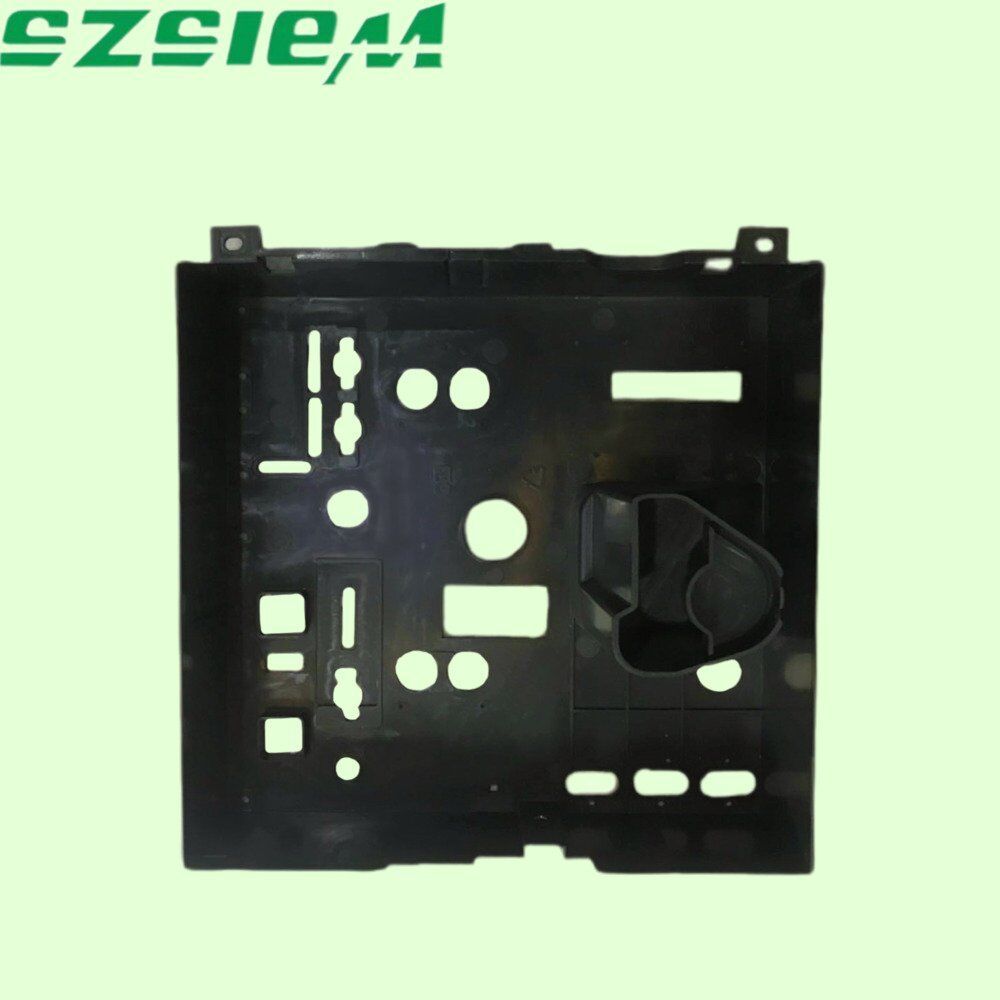

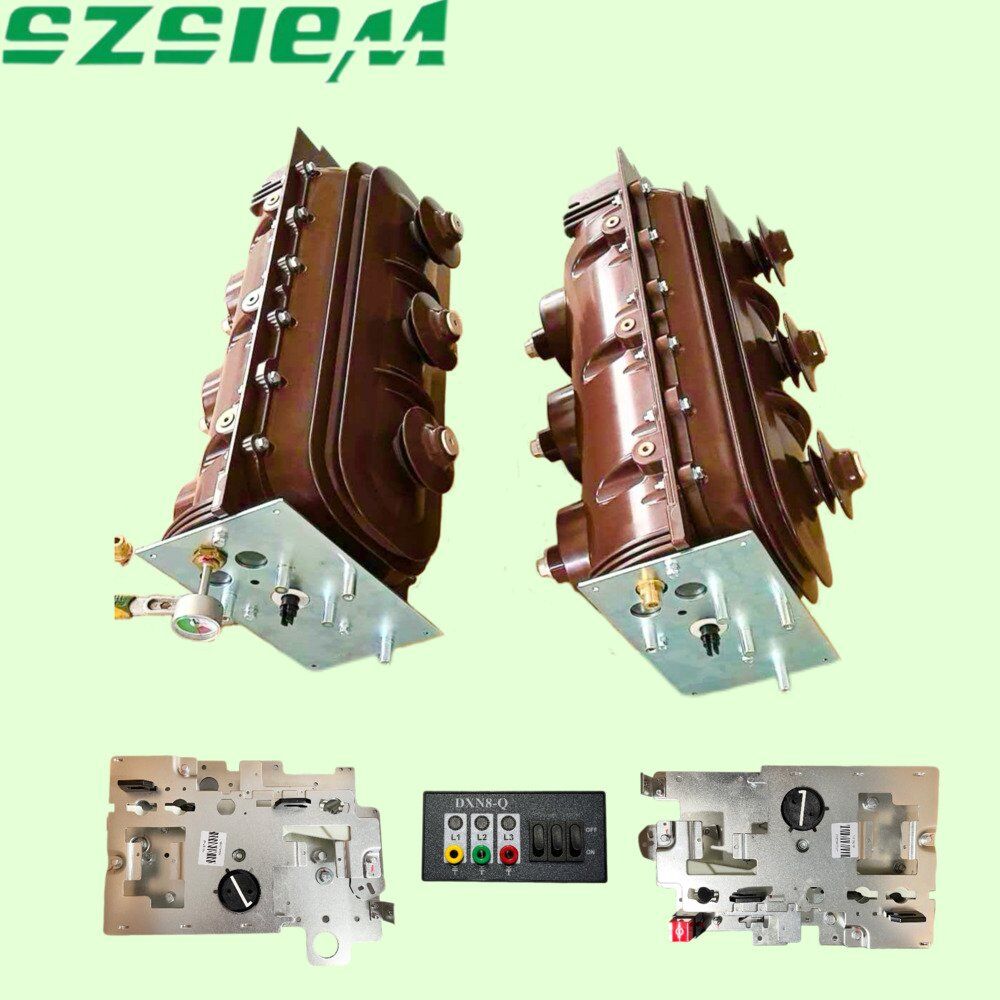

• Main Modules: SF6 insulating bushing (epoxy resin encapsulation with sealed chamber), three-phase conductive circuit, operating mechanism base;

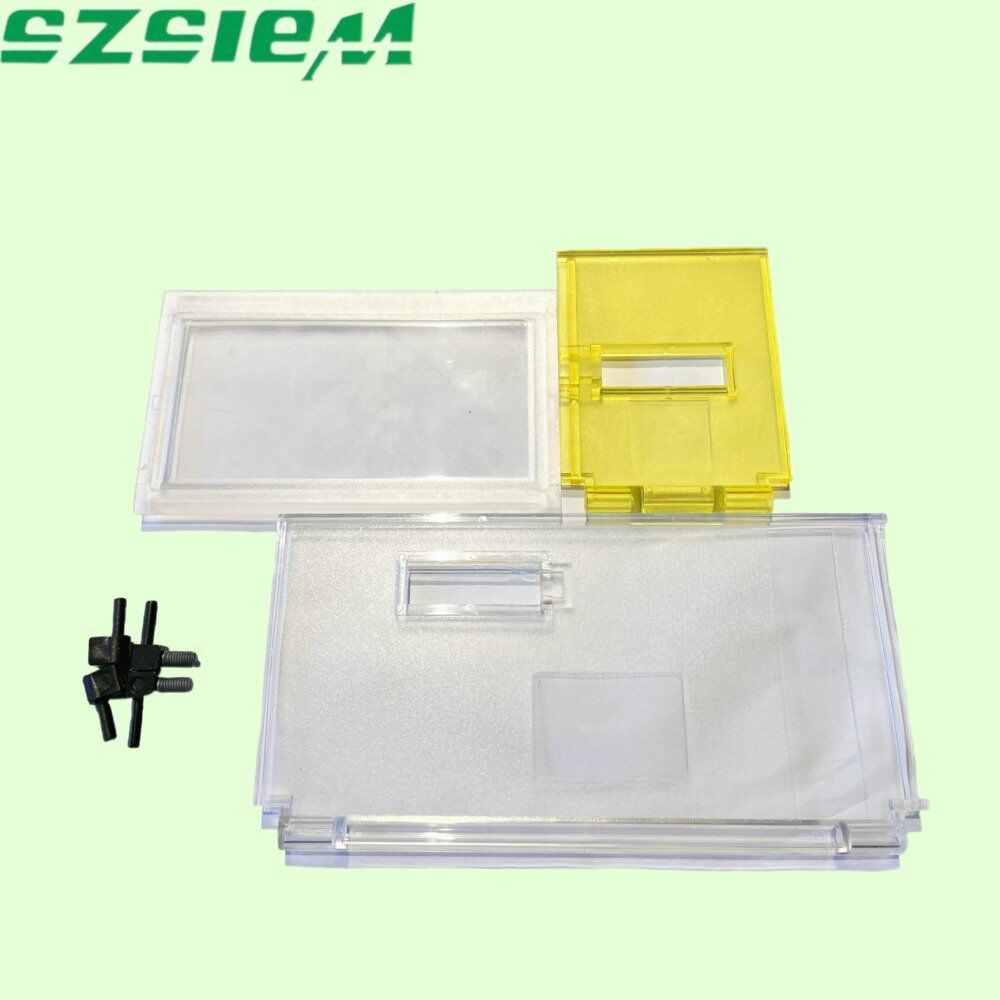

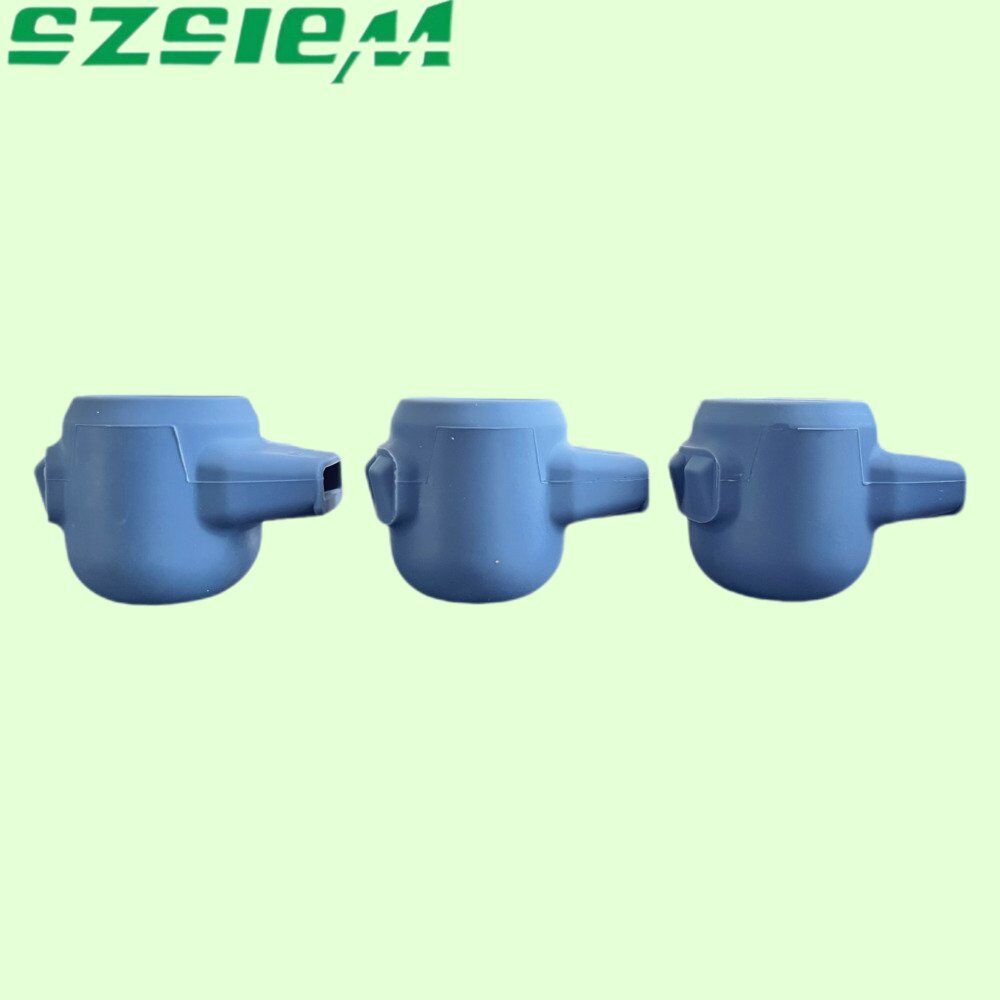

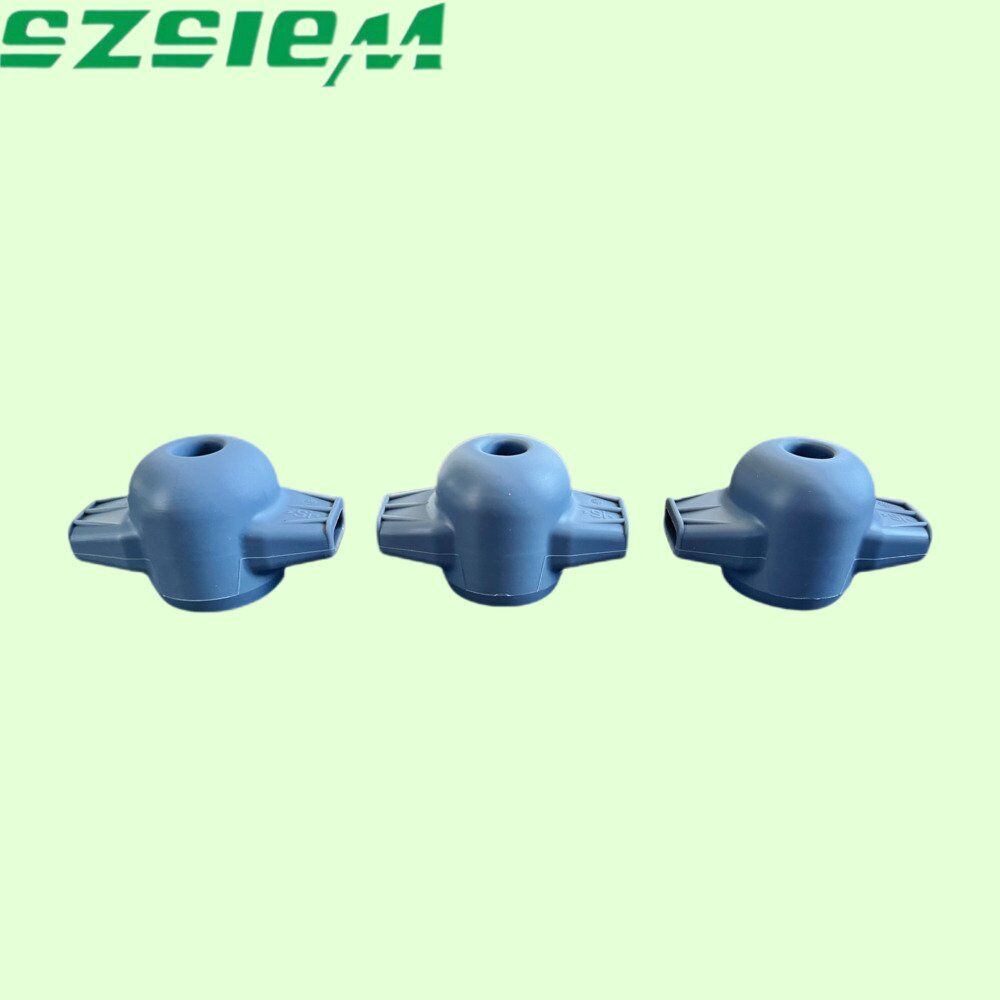

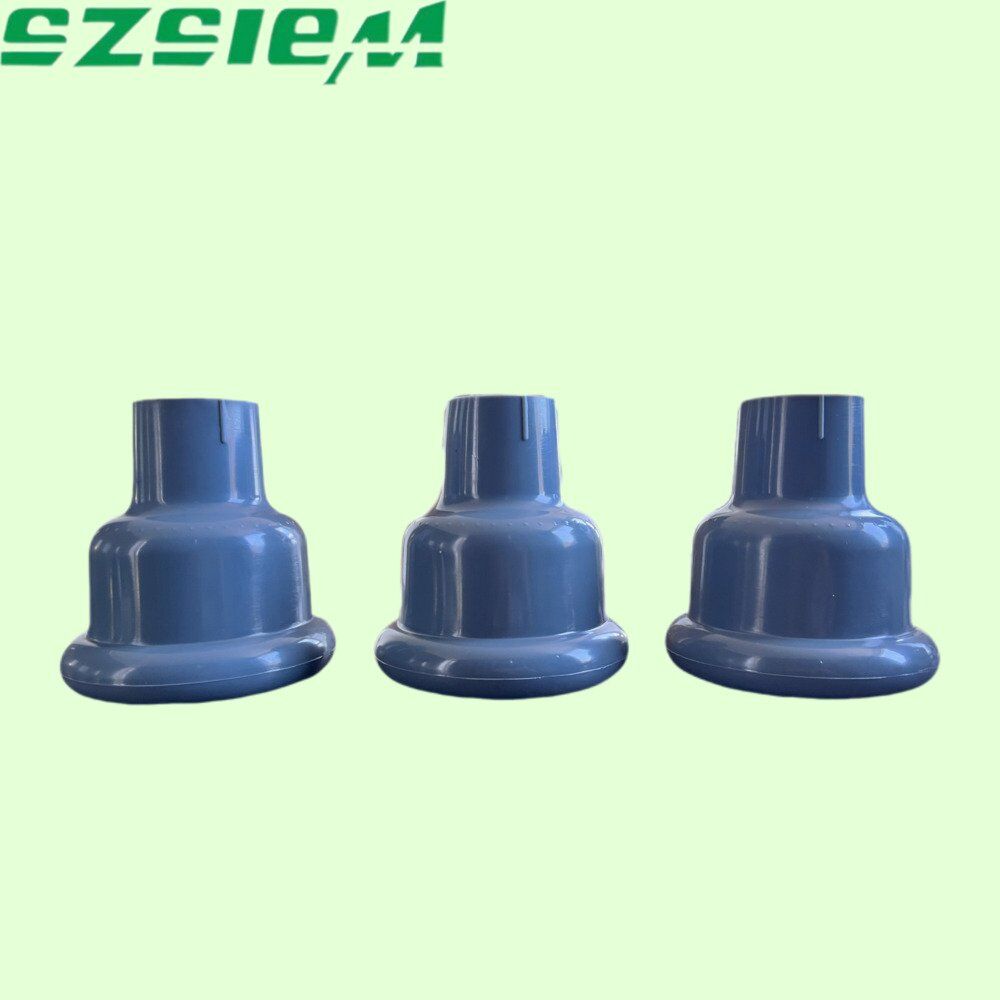

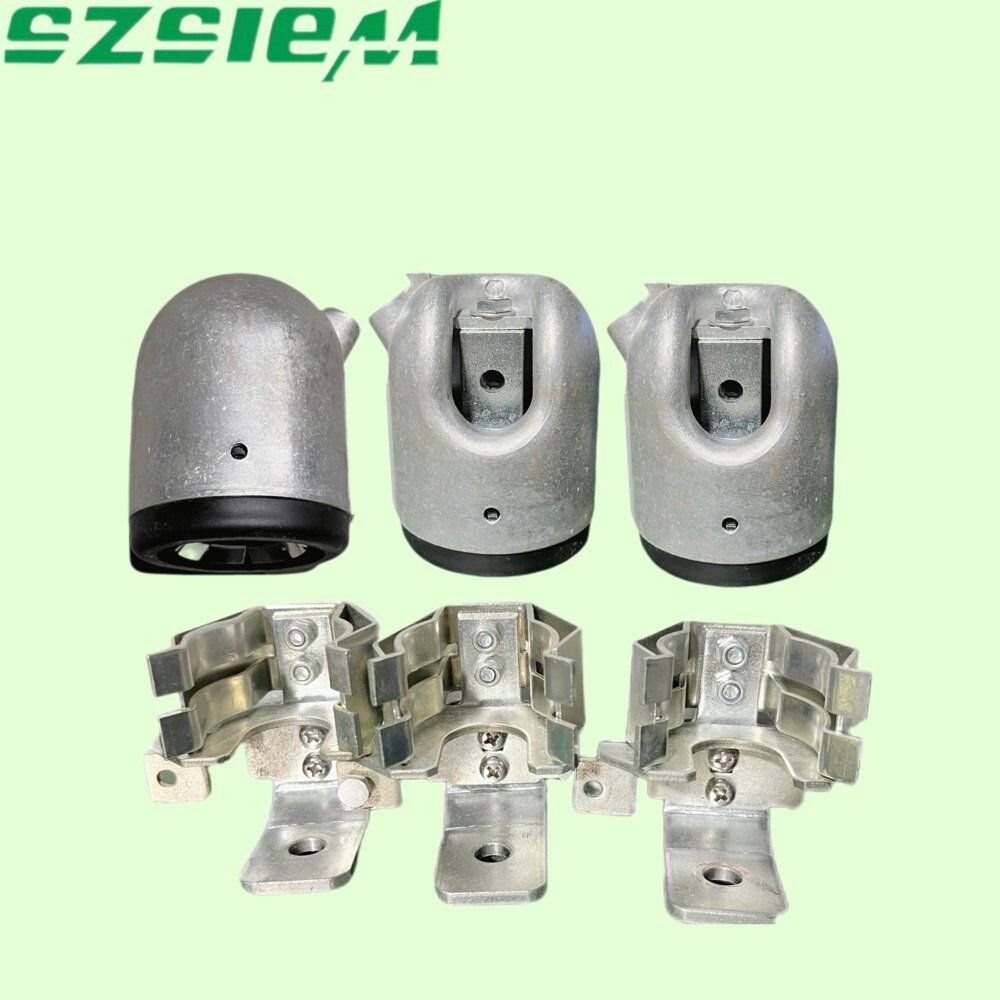

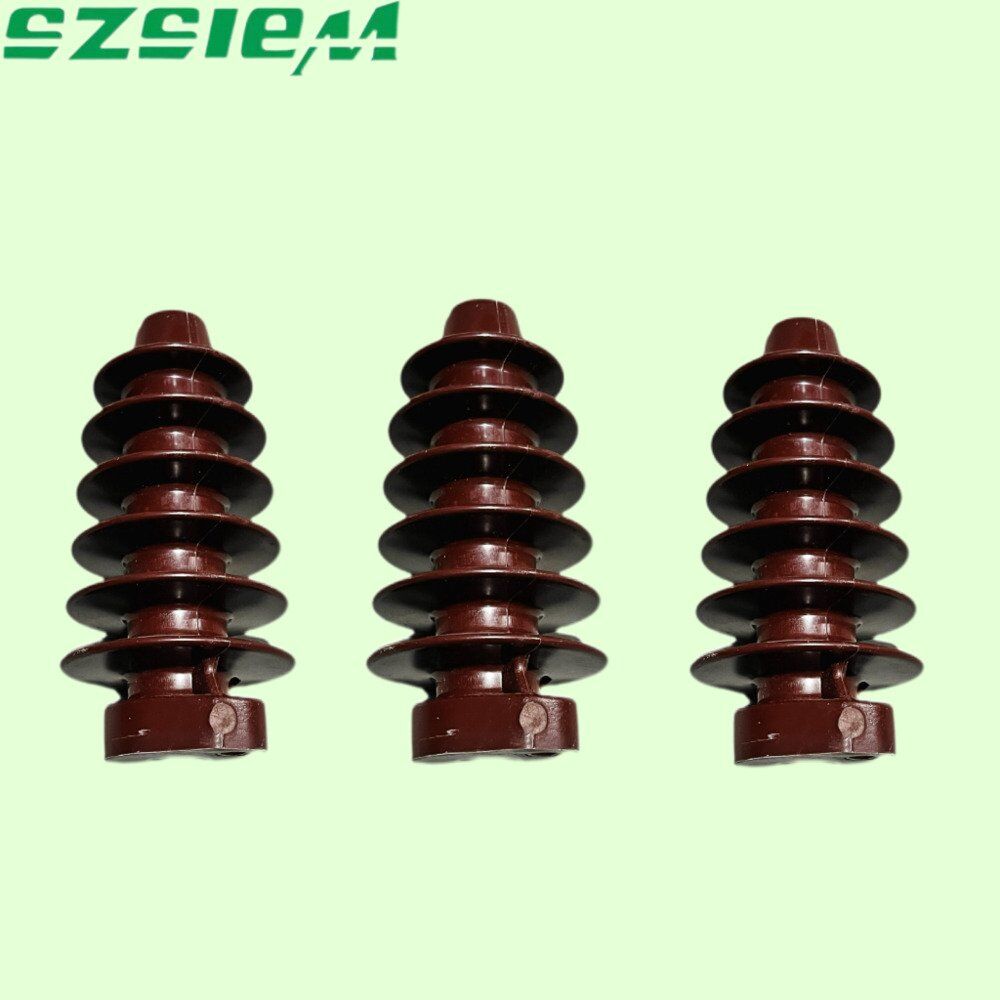

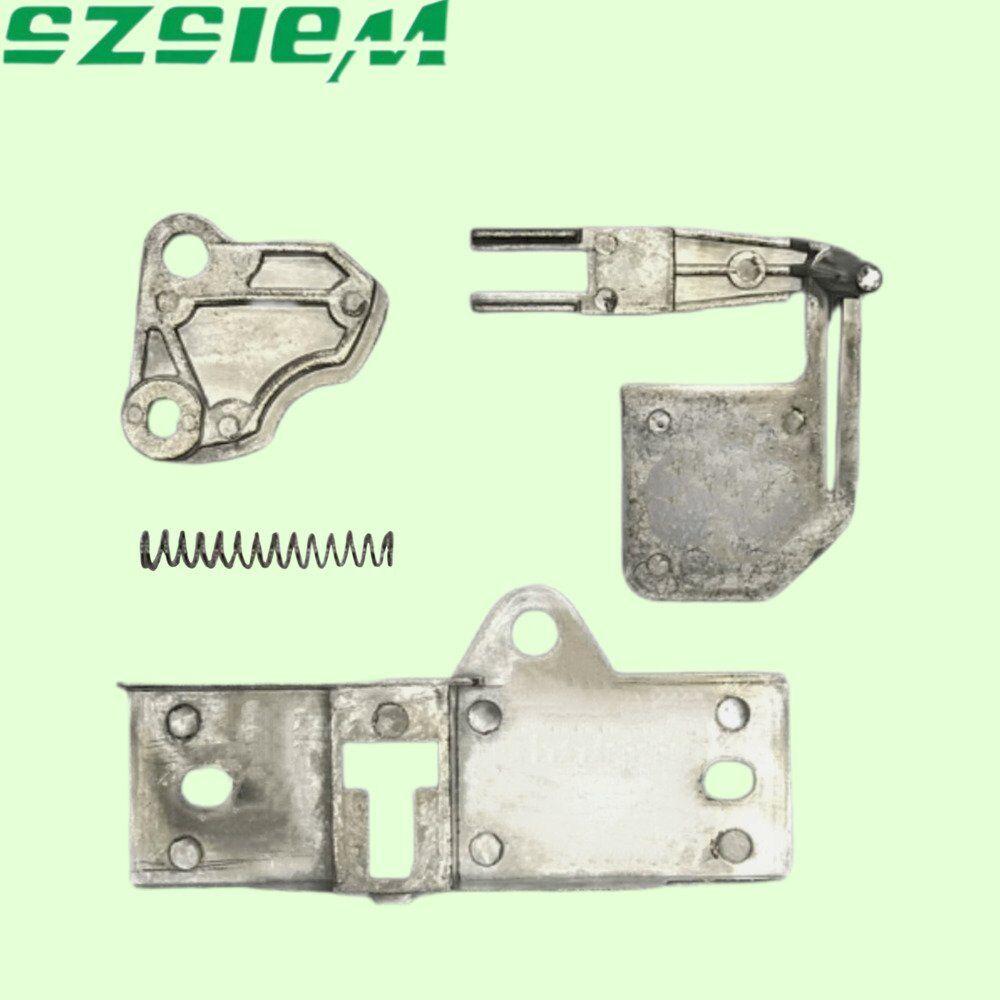

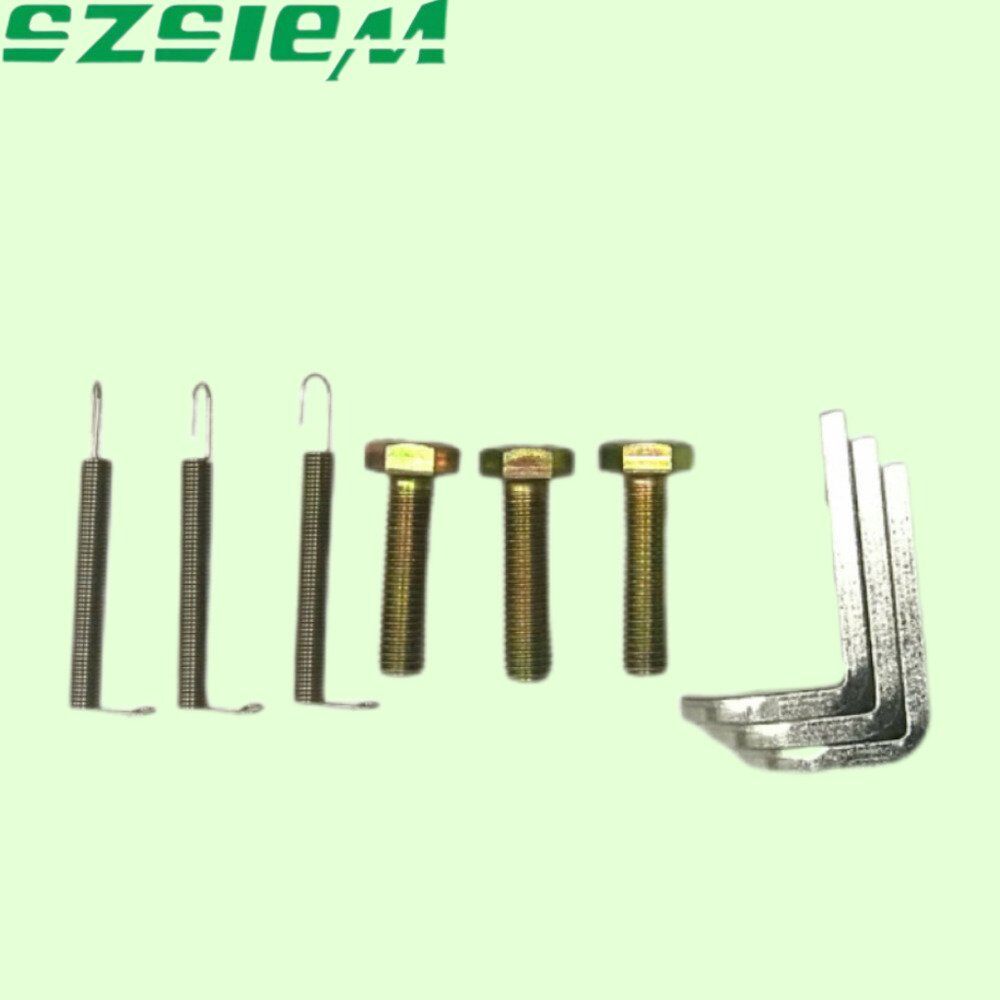

• Auxiliary Accessories: Insulating supports, insulating covers, conductive connectors, mounting fasteners, supporting indoor cabinet assembly.
• SF6 Insulation: Utilizes SF6 gas as the insulating medium, offering superior insulation properties and suitability for indoor high-voltage enclosed environments;

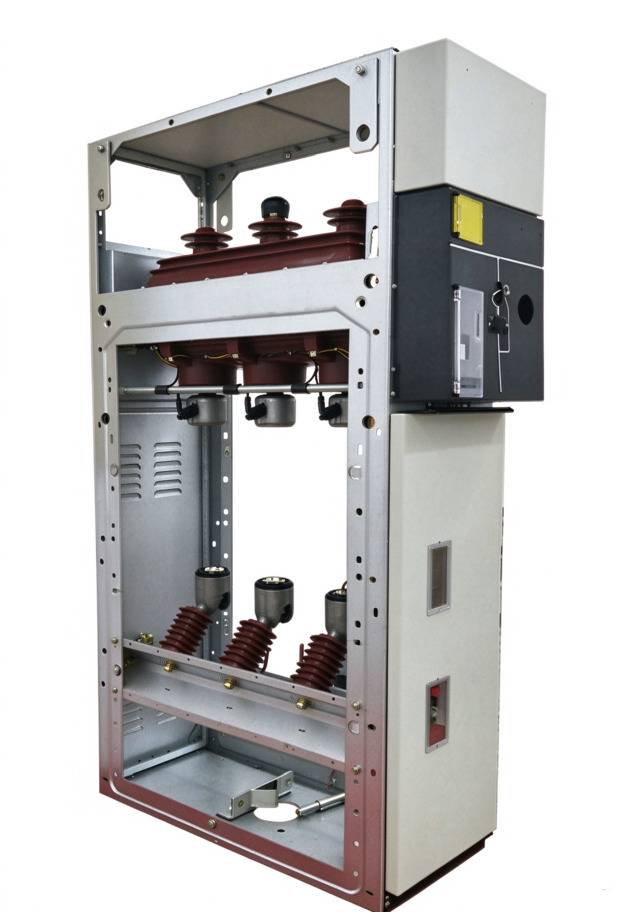

• Indoor Adaptability: Components feature a cabinet-embedded design without outdoor weatherproof structures, tailored for internal switchgear installation;
• Sealed Design: Insulating bushings employ a sealed structure to ensure low SF6 gas leakage and extended maintenance intervals.
• Grounding Protection: Reliably grounds circuits during maintenance to ensure personnel safety;
• Insulation Isolation: Creates an insulating gap with the grounding terminal after disconnection, restoring normal circuit operation;
• Interlock Compatibility: Enables operational interlocking with the switchgear’s main switch (e.g., grounding only permitted after main switch disengagement).
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
