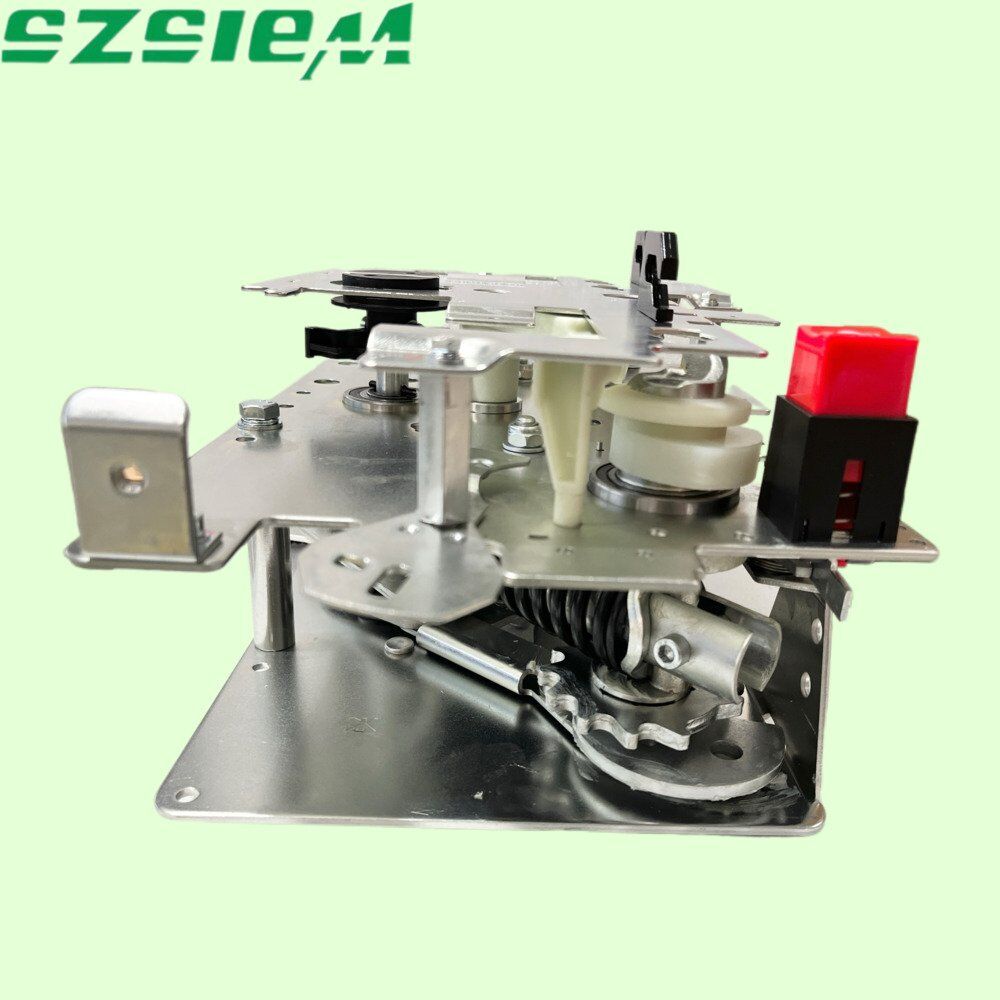

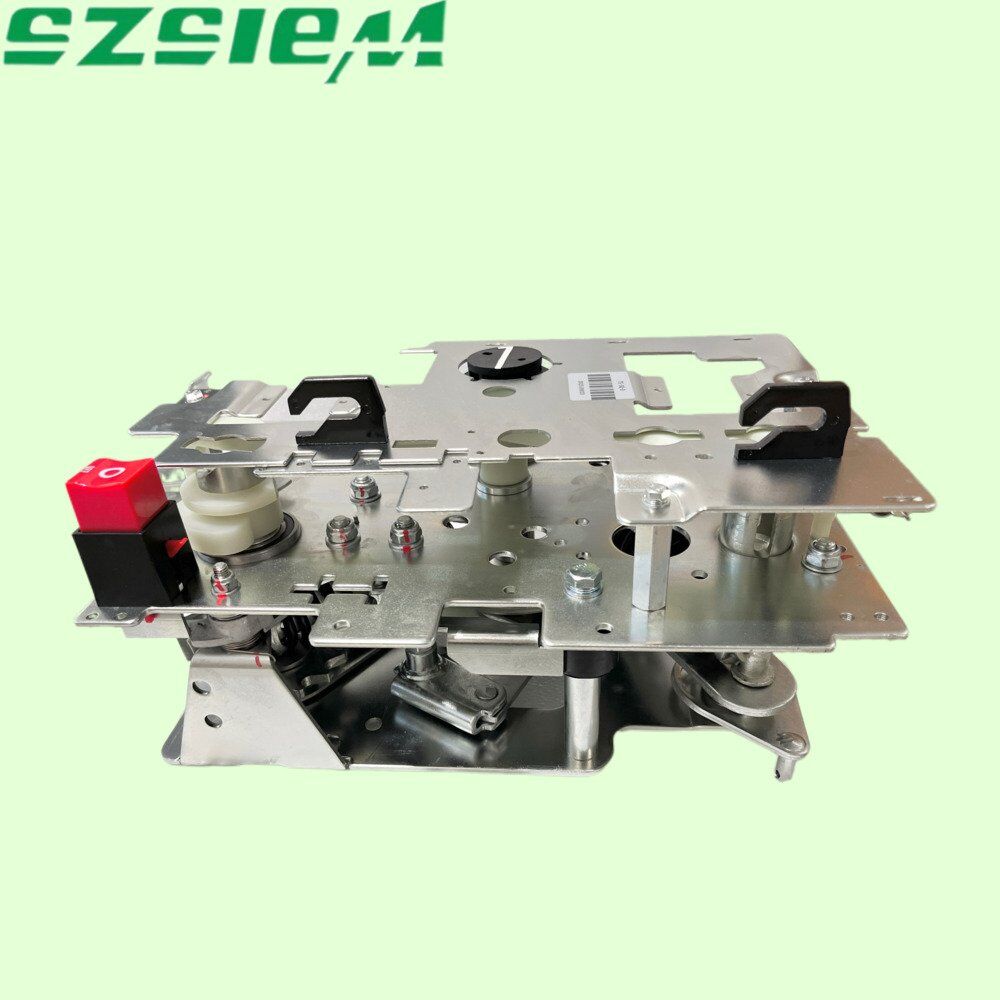

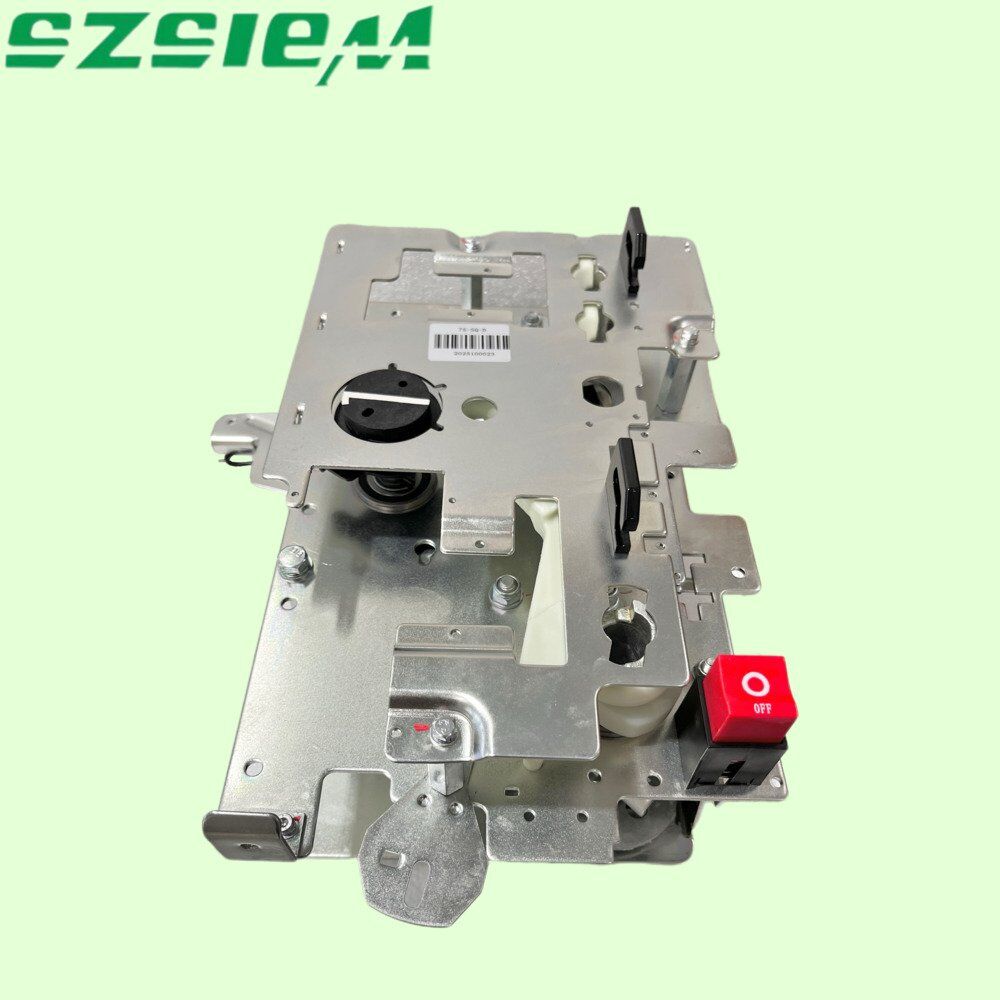

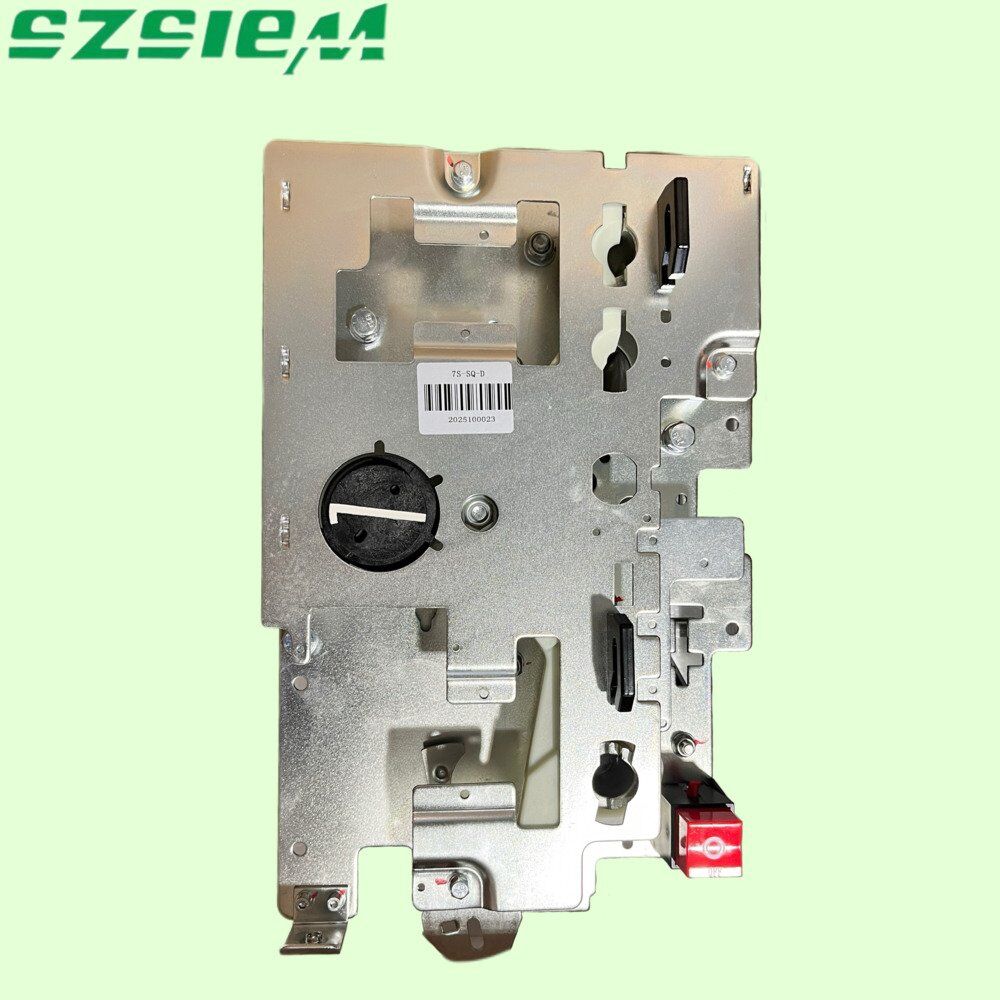

What Is the 7S-SQ-D Electric Operating Mechanism?
This product is an electric actuator dedicated to SM6 load break switches. It converts remote control electrical signals into mechanical drive force, completing switch opening and closing with accurate action stroke and locking logic.
Compared with traditional manual operation handles, the motorized operating mechanism has obvious engineering advantages:
- Realize unattended remote switching via SCADA system
- Shorten switching action time to meet grid protection response demands
- Avoid misoperation caused by on-site manual operation
- Reduce regular patrol labor for distribution cabinets
- Perfectly dock with automated distribution network monitoring systems
For intelligent reconstruction of medium voltage switchgear, replacing manual operating assemblies with motorized versions is a standard transformation method to reduce human error in power grid operation.
Key Features
Reliable Motor Drive
The built-in drive motor outputs steady torque in each energy storage and switching cycle, ensuring smooth mechanical linkage even after tens of thousands of mechanical actions.
Long Mechanical Service Life
Core transmission parts adopt wear-resistant alloy materials, adapting to frequent switching working conditions of medium voltage distribution equipment and extending the service cycle of the whole mechanism.
High Compatibility
Dimension and mounting hole positions are fully calibrated for mainstream Schneider SM6 cabinet types; no cabinet cutting or structural modification is needed during on-site replacement.
Compact Structure
The overall outline size is consistent with the original factory part, which can be directly installed inside the SM6 cabinet without occupying extra internal wiring space.
Low Maintenance
Optimized friction fit design reduces component abrasion; only regular inspection is required in daily use, lowering the frequency of disassembly maintenance.
Technical Advantages
Combining mechanical structural stability and electrical control precision, this mechanism is suitable for supporting use by complete set cabinet manufacturers and engineering maintenance teams.
Main technical merits:
- Stable and repeatable closing & tripping output
- Quick response to external control signals
- Small driving torque, low jamming probability
- Strong mechanical anti-fatigue and anti-vibration capacity
- Auxiliary switch with stable signal feedback
- Consistent performance under allowable voltage fluctuation
- Capable of long-term continuous on-site industrial operation
Every finished mechanism will pass factory offline testing to verify motor operation, mechanical linkage and electrical signal feedback before delivery.
Typical Application Scenarios
This electric operating mechanism is widely used in medium voltage power distribution occasions requiring automatic switching control:
- Conventional medium voltage switchgear equipment
- Schneider SM6 fully insulated ring main unit
- General Ring Main Unit (RMU)
- Urban and rural distribution substations
- Factory internal power distribution systems
- New energy power generation supporting power supply
- Photovoltaic power stations, wind farm box-type substations
- Large commercial building power distribution rooms
- Mining, petrochemical and infrastructure power supply projects
It can be used with other SM6 switchgear accessories to form a complete intelligent distribution solution. You can browse our full range of cabinet fittings on our
distribution switchgear accessories page, including VPIS indicators, insulated busbars and gas load break switches.
Compatibility Range
This model is designed as a interchangeable spare part for Schneider SM6 switchgear and supporting medium voltage distribution equipment. Applicable matching objects:
- Schneider SM6 series ring main unit
- SM6 load break switch body
- Standard ring main unit (RMU)
- Motorized type load break switch
- Switchgear complying with IEC 62271 medium voltage standard
Before ordering, our technical team can confirm matching feasibility according to your cabinet model and production batch, preventing installation mismatch.
Manufacturing & Quality Control Experience
Xizi Energy has long focused on the development and production of medium voltage switchgear spare parts, providing accessory supporting services for power grid units, cabinet manufacturers, EPC engineering companies and maintenance enterprises in more than 40 countries. All operating mechanisms are produced under fixed process quality inspection to guarantee field operation stability.
Each product must complete 5 items of inspection before leaving the factory:
- Full stroke mechanical opening and closing function test
- Electrical control signal linkage verification
- Motor no-load and load parameter detection
- Appearance structure and assembly inspection
- Packaging anti-collision treatment inspection
Strict inspection links effectively avoid on-site installation faults and guarantee long-term stable operation under complex site environments.
On-site Installation & Maintenance Guidelines
Pre-installation Confirmation Items
1. Confirm the cabinet model matches the mechanism specification
2. Check whether the control loop voltage is consistent with the product rated voltage
3. Inspect wiring terminals and connectors for damage
4. Confirm no deformation or collision damage during transportation
5. Toggle moving parts manually to ensure no jamming.
Routine Maintenance Suggestions
- Inspect mechanical transmission connecting rod once per year
- Add lubricating grease to friction positions according to abrasion condition
- Check the contact state of auxiliary switches periodically
- Measure the no-load operating current of the drive motor
- Carry out full opening-closing functional test regularly
- Replace severely worn parts during equipment scheduled overhaul
Standard preventive maintenance can effectively prolong equipment service life and avoid sudden power failure caused by component failure.
Practical Engineering Case
A regional power supply enterprise carried out intelligent upgrading for a batch of aging SM6 cabinets in substation renovation projects. They replaced original manual operating mechanisms with 7S-SQ-D motorized versions.
After installation and commissioning, the project achieved the following on-site effects:
- Switching response speed obviously improved
- Manual on-site operation workload greatly reduced
- Operation safety of frontline maintenance personnel upgraded
- Easy access to the station’s remote centralized monitoring system
- Later maintenance workload decreased
- Overall running stability of the cabinet enhanced
This case proves that only replacing the operating mechanism can complete intelligent upgrading of old SM6 equipment, without replacing the whole expensive cabinet body.
Frequently Asked Questions
Q1: Is this operating mechanism applicable to all models of Schneider SM6 switchgear?
This product is aimed at mainstream SM6 series ring main units. You may provide cabinet nameplate photos or model numbers, and our engineers will confirm compatibility for you before purchase.
Q2: Can this mechanism directly substitute the original Schneider factory operating mechanism?
Yes. It is widely used as a fully compatible replacement component in daily equipment maintenance and cabinet reconstruction projects, with consistent installation size and interlock logic.
Q3: Does this product support remote electric operation?
Yes. This mechanism is designed for motorized automatic switching, and can be connected to matched control modules and automation monitoring equipment to realize remote signal control.
Q4: Which industry standards does this product conform to?
It is produced in accordance with the relevant clauses of IEC medium voltage switchgear accessory standards, and implements the company’s internal standardized quality control system in the production process.
Q5: What regular maintenance work needs to be done for this mechanism?
It is recommended to conduct annual inspection on mechanical transmission structures, wiring terminals and action performance, or arrange maintenance according to the overall maintenance cycle of the switchgear where it is installed.
Q6: Can Xizi Energy provide OEM customized services?
We support OEM processing, personalized label printing and customized packaging, and can provide technical docking support for distributors, cabinet manufacturers and EPC engineering contractors.
Request a Quote
If you need a stable and compatible electric operating mechanism for Schneider SM6 switchgear, welcome to contact our engineering team. We can provide product model selection, parameter confirmation, quotation and OEM customization services. We provide targeted power distribution equipment accessory solutions to improve the safety, stability and operation efficiency of your power system.
If you want to learn more about the basic principle, classification and general selection guidelines of medium voltage electric drive devices, you can refer to our detailed guide about electric operating mechanism for medium voltage switchgear.
