The 7S-R6S-B-DC24V motorized operating mechanism is a precision-engineered, drop-in replacement solution exclusively designed for Schneider RM6-S ring main unit (RMU) B cabinets. Tailored for 10kV/24kV medium voltage SF6 switchgear, this DC24V drive unit delivers reliable, high-torque operation for load break switches and earthing switches in RM6-S B cabinets, solving the critical pain points of aging original Schneider mechanisms, costly OEM replacements, and retrofit project delays.
Engineered to match the exact mounting dimensions, shaft interface, and control logic of Schneider RM6-S ring main unit B cabinets, this mechanism requires zero cabinet modification for installation. It is a direct, cost-effective alternative to original Schneider RM6 operating mechanisms, eliminating the need for full cabinet replacement and cutting retrofit project costs by up to 60%.

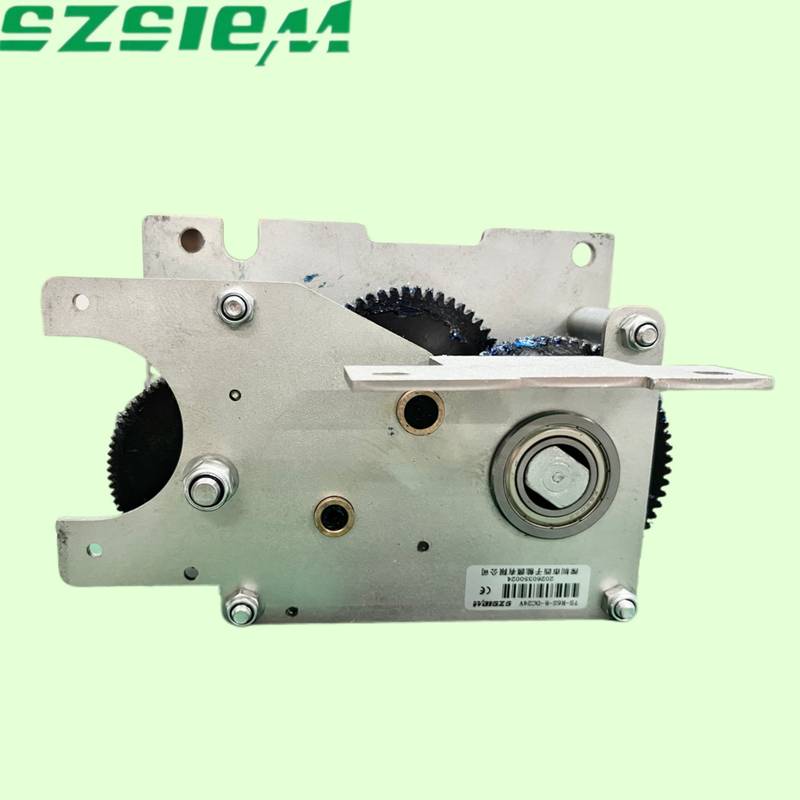

Featuring a precision-machined multi-stage gear train with industrial-grade long-life lubrication, the 7S-R6S-B-DC24V delivers consistent, fail-safe torque for automated opening and closing of RM6-S B cabinet load break and earthing switches. The robust aluminum alloy housing ensures corrosion resistance and stable performance in harsh substation environments, reducing unplanned downtime and maintenance costs for power distribution networks.

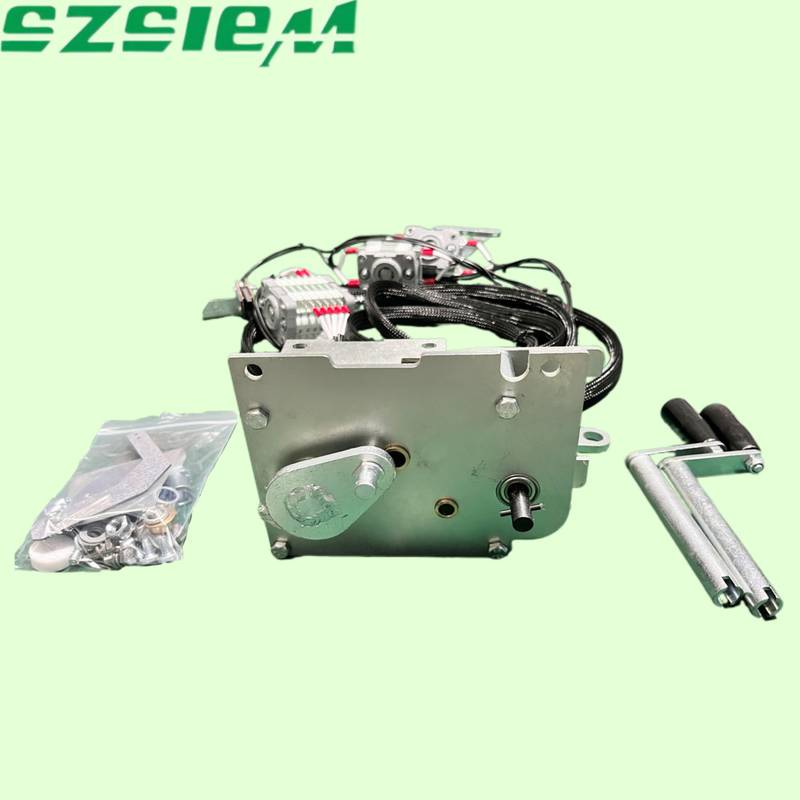

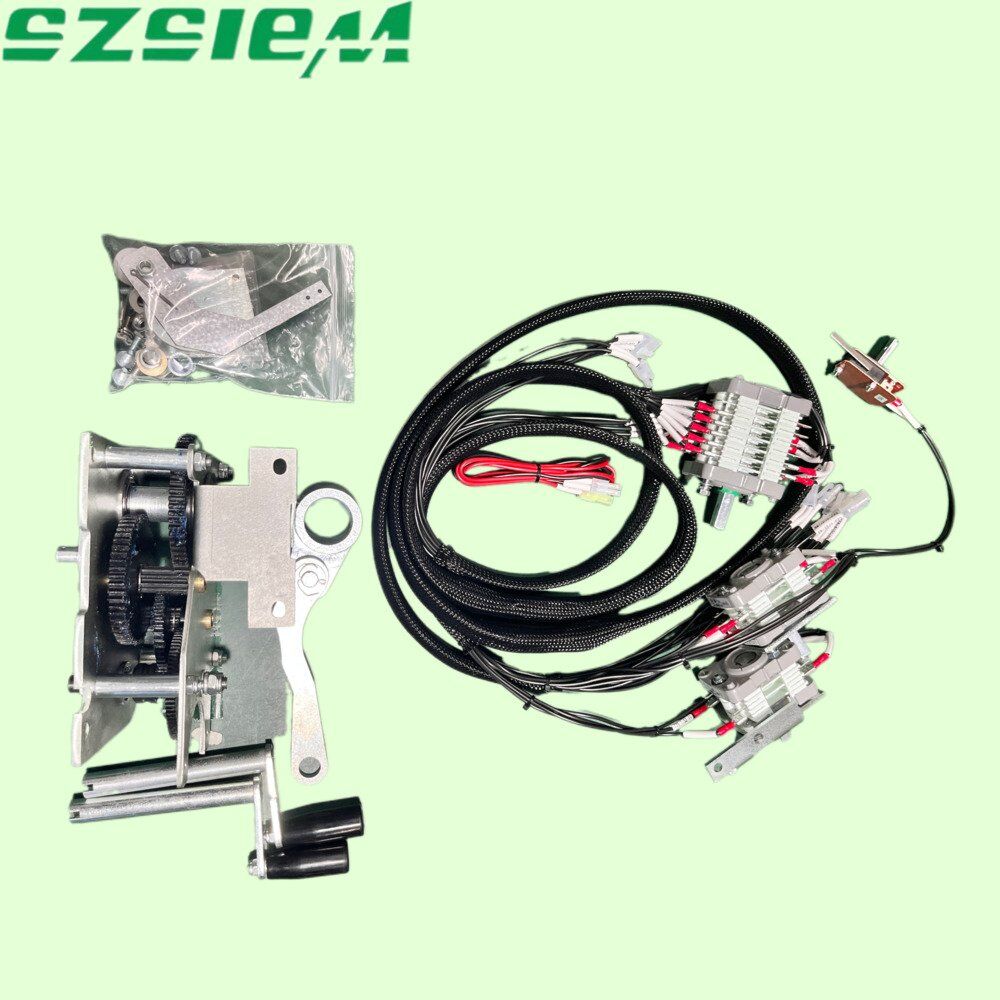

Supplied with a full set of RM6-S-specific accessories: pre-wired control harnesses with Schneider-compatible connectors, auxiliary switches for position feedback, manual emergency operation handles, and all mounting hardware. This complete kit enables fast, one-person installation and commissioning, minimizing outage time for utility companies, switchgear OEMs, and electrical contractors working on Schneider RM6-S fleets.
Fully CE certified to meet international IEC electrical safety standards, this RM6-S operating mechanism is fully compatible with Schneider RM6-S control systems, SCADA, and remote monitoring platforms. The standard DC24V control voltage aligns with Schneider’s RMU design specifications, ensuring seamless integration into existing power distribution infrastructure for global projects, including Europe, Russia, Southeast Asia, and the Middle East.
| Parameter | Specification |
|---|---|
| Model | 7S-R6S-B-DC24V |
| Compatibility | Schneider RM6-S Ring Main Unit (RMU) B Cabinet |
| Control Voltage | DC 24V |
| Application | RM6-S B Cabinet Load Break Switch & Earthing Switch Operation |
| Operation Mode | Motorized Automatic + Manual Emergency Operation |
| Housing Material | Corrosion-Resistant Aluminum Alloy |
| Certification | CE (IEC 62271-106 Compliant) |
| Accessories Included | Auxiliary Switches, Pre-Wired Control Harness, Manual Handle, Mounting Hardware |
| Mounting Type | Direct Drop-In Replacement for Schneider RM6-S Original Mechanism |
Yes, the 7S-R6S-B-DC24V is designed as a 1:1 drop-in replacement for the original Schneider RM6-S operating mechanism. It matches the exact mounting dimensions, shaft interface, and control logic of RM6-S B cabinets, eliminating the need for cabinet modification during installation.
This operating mechanism operates on DC24V control voltage, fully compliant with the Schneider RMU design specifications. It supports both motorized automatic operation and manual emergency operation for load break and earthing switches.
Yes, the complete kit includes pre-wired control harnesses with Schneider-compatible connectors, auxiliary switches for position feedback, a manual emergency operation handle, and all mounting hardware required for one-person installation.
The mechanism is fully CE certified to meet international IEC 62271-106 electrical safety standards. It is widely used in projects across Europe, Russia, Southeast Asia, and the Middle East, complying with local power infrastructure requirements.
It is ideal for retrofitting aging Schneider RM6-S cabinets, replacing worn-out original mechanisms, new production of RM6-S-compatible RMUs, power distribution substations, and renewable energy grid projects requiring reliable switchgear operation.
Yes, we provide comprehensive OEM and ODM services for power switchgear accessories. Our engineering team can adjust specifications or add custom features to meet your specific project requirements, with full technical support throughout the process.
