Main Types of ABB-Style Circuit Breakers & Compatible Replacement Spare Parts
Worn components and mismatched spare parts are the most common causes of circuit breaker faults and unplanned power outages on LV/MV maintenance sites. Proper model identification and wearable part upkeep are essential for stable power system operation.
Circuit breakers provide critical overload and short-circuit protection for power distribution systems. ABB-style breakers are widely used in industrial and commercial projects due to their reliable performance and full model coverage.
Continuous switching cycles, electrical load and harsh operating conditions gradually wear coils, trip units and auxiliary contacts. Many engineers confuse MCB, MCCB, ACB and VCB types, leading to incorrect part orders and on-site rework.
Based on field maintenance and part-matching experience, this guide simplifies the four mainstream circuit breaker types, including their applications, common faults and compatible replacement parts, to support fast, accurate on-site selection.
1. Miniature Circuit Breaker (MCB) – Low Voltage Terminal Protection
MCBs are the most common low-voltage breakers, typically DIN-rail mounted inside distribution boxes. They protect small terminal circuits, including lighting, socket loops and low-power control equipment for offices, residential buildings and small industrial setups.
Common parameters: 1A to 63A, compatible with 230V/400V low-voltage systems
Field faults & wearable parts: Unexplained random tripping is the most frequent issue on site. In most cases, this isn’t caused by circuit overload, but fatigue deformation of the internal bimetallic trip strip. Long-term use also leads to terminal oxidation and aging of the arc extinguishing chamber, weakening fault-breaking performance over time.
On-site application: Civil building power distribution, office weak-current cabinets and small industrial control loops.
2. Moulded Case Circuit Breaker (MCCB) – Low-Voltage Branch Main Switch

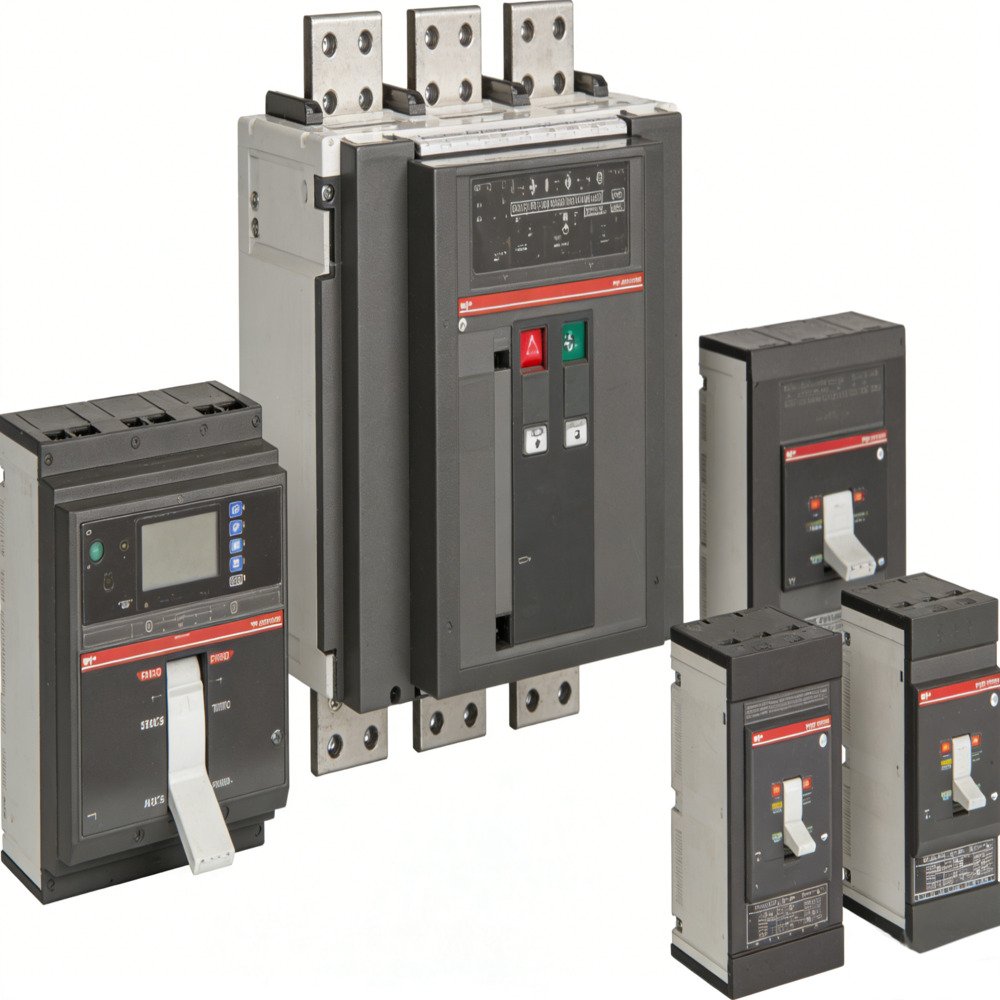

MCCBs serve as the primary branch protection in low-voltage distribution cabinets. Compared with compact MCBs, they offer higher breaking capacity and adjustable trip settings, ideal for protecting production line circuits, building main branches and commercial power distribution loops.
Common parameters: 16A to 1600A, 400V low-voltage distribution systems
Frequently replaced accessories: On-site maintenance data shows trip units, shunt coils, closing coils and auxiliary contacts fail most often. These components bear constant current impact, easily causing signal anomalies and switching failures.
Practical maintenance tip: Many classic MCCB models are officially discontinued. Replacing the entire distribution cabinet is costly and time-consuming. In actual project work, we use fully dimensionally and electrically matched OEM compatible parts. No cabinet modification is needed, and equipment performance is fully restored.
3. Air Circuit Breaker (ACB) – Low-Voltage Incoming Main Switch

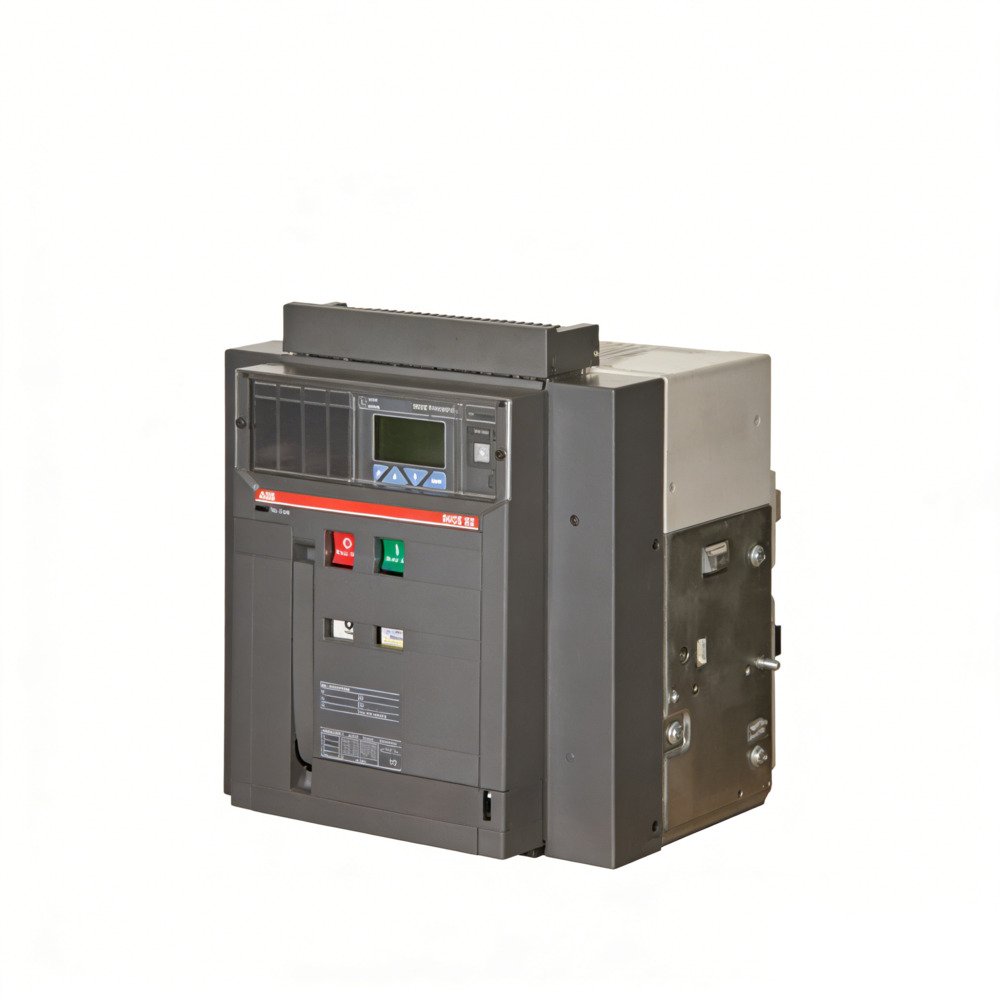

ACBs are the highest-level protection devices in low-voltage power rooms, acting as the main incoming switch for entire factories or building power systems. Unlike ordinary branch breakers, they adopt a drawer-type structure, allowing convenient pull-out inspection and partial maintenance without full-system power cuts.
Common parameters: 630A to 6300A, for 400V main power grids
Core aging components: The energy storage spring mechanism, intelligent controller and mechanical interlock are the most vulnerable parts. Long-term standby use stiffens springs, while frequent electric switching causes contact ablation and inaccurate detection data.
Equipment features: Supports remote switching and real-time power monitoring, widely used in large industrial plants and data center main distribution systems.
4. Vacuum Circuit Breaker (VCB) – Medium Voltage MV Protection

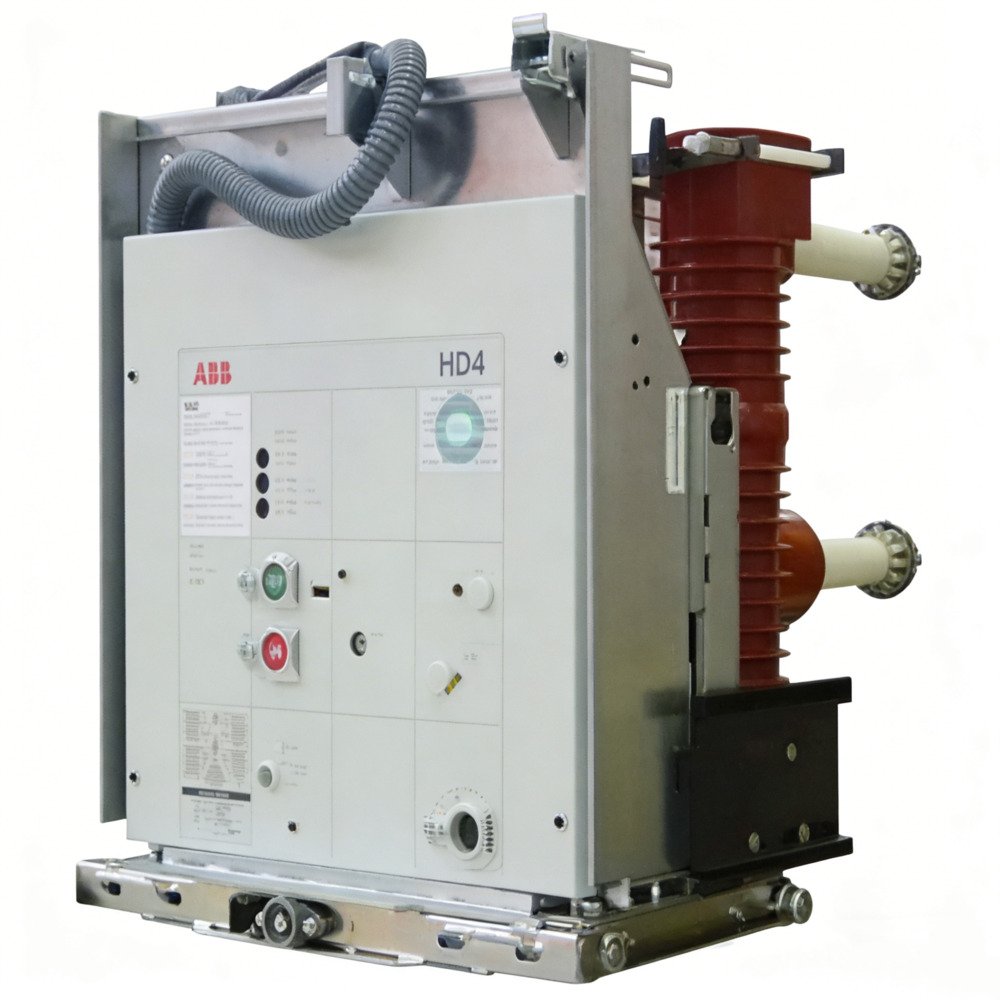

VCBs are essential for 12kV and 24kV medium-voltage power systems. They use vacuum arc-extinguishing technology, with zero SF6 emissions, low maintenance requirements and stable performance, adapting well to harsh outdoor operating environments.
Typical application scenarios: Substation switch cabinets, outdoor box substations, photovoltaic and wind power grid-connected cabinets, industrial medium-voltage distribution rooms.
Common replacement parts: In daily inspections, vacuum interrupters, operating mechanisms, tripping/closing coils and auxiliary signal switches are the most frequently replaced parts. Mechanical jamming and signal loss caused by component aging are the main hidden medium-voltage equipment faults.
In urban distribution networks, VCBs often cooperate with SF6 insulated SafeRing RMUs to form a complete medium-voltage protection system. Accurate accessory matching directly affects the overall stability of grid operation.
Circuit Breaker Type Quick Comparison Table
| Breaker Type | Voltage Level | Current Range | Main Wearable Parts |
| MCB | Low Voltage 400V | 1A–63A | Trip strip, arc extinguish chamber |
| MCCB | Low Voltage 400V | 16A–1600A | Trip unit, shunt coil, auxiliary contact |
| ACB | Low Voltage 400V | 630A–6300A | Spring mechanism, controller, interlock |
| VCB | Medium Voltage 12/24kV | 630A–3150A | Vacuum tube, operating mechanism, coils |
How to Select Compatible Circuit Breaker Spare Parts (Field Practical Standard)
Most part matching failures I’ve encountered are not due to product quality issues, but incomplete parameter confirmation before purchasing. Based on on-site experience, I’ve summarized 4 core rules to help teams avoid rework and cost waste:
1. Confirm rated voltage and current
Always check the equipment nameplate strictly. Mismatched voltage and current will cause switching failure, frequent tripping or even coil burnout.
2. Distinguish installation methods
Fixed, plug-in and drawer-type breakers have completely different structural sizes. Choosing the wrong type leads to installation failure or loose fixation.
3. Verify coil control voltage
Coils have multiple specifications including AC220V, AC380V and DC24V. This easily overlooked detail is a major cause of electric operation failure.
4. Check equipment batch and drawings
Manufacturers adjust accessory structures for different production batches. For aging equipment with missing parameter information, original technical drawings are the most accurate reference for error-free matching.
Frequently Asked Field Questions
1. Are OEM-compatible breaker parts reliable for long-term use?
From years of on-site verification, high-quality compatible parts that fully follow original size and electrical standards are completely reliable. Qualified suppliers conduct strict pressure resistance, electrical performance and aging tests before delivery. Many of our matched components have operated stably on-site for over 8 years with no batch faults.
2. What causes frequent unexplained breaker tripping?
It’s rarely actual line overload. Most cases stem from aging or deformed internal trip units, fatigued bimetallic strips, or oxidized auxiliary contacts that trigger false protection signals.
3. What is the essential difference between MCCB and ACB?
Simply put, ACBs are main incoming switches for entire power rooms, with large current capacity and a detachable drawer structure for easy maintenance. MCCBs are branch protection devices with smaller current ranges and lower costs, suitable for large-scale branch loop protection.
Conclusion
Each type of circuit breaker undertakes independent protection tasks in power systems. Clearly distinguishing MCB, MCCB, ACB and VCB, and understanding their vulnerable parts and maintenance rules can effectively reduce on-site misoperation, shorten unplanned outage time and cut maintenance costs.
If you need cost-effective, stable OEM compatible replacement parts for low and medium voltage circuit breakers and switchgear, our team provides professional parameter matching, one-stop procurement and global technical after-sales support to solve your on-site maintenance problems efficiently.
