Medium voltage switchgear (MV switchgear) is a critical assembly in modern power distribution, transmission, and industrial systems. It integrates switching, protection, control, and isolation devices in a safe, durable enclosure, designed for the 3 kV to 36 kV range.
MV switchgear safeguards equipment, boosts power reliability, and supports stable operation for utilities, industrial plants, renewables, data centers, and infrastructure—making it essential to understand what medium voltage switchgear is for informed selection and system efficiency.
What Is Medium Voltage Switchgear (MV Switchgear)?
MV switchgear is a complete power assembly that controls, protects, and isolates electrical circuits in the 3 kV–36 kV range. Unlike low-voltage panels, it withstands high short-circuit currents, switching overvoltages, and operational stress, enabling safe load control and rapid fault isolation to prevent outages, fires, or equipment damage.
Core Working Principle
MV switchgear operates around three key tasks: normal load switching, rapid fault protection (detecting and interrupting short circuits/overloads in milliseconds), and safe isolation/earthing for maintenance.
It maintains stable power delivery during normal operation and isolates faulty sections to protect high-value equipment while keeping the rest of the network running.
Main Components
MV switchgear includes two core component groups:
- Power Conducting Components: Circuit breakers (vacuum, SF6), disconnect switches, earthing switches, busbars, insulators, and surge arresters.
- Control & Protection Components: Control panels, current/voltage transformers (CT/VT), protection relays, interlock mechanisms, and monitoring meters.
Common Types
Classified by insulation, structure, and installation, key types include:

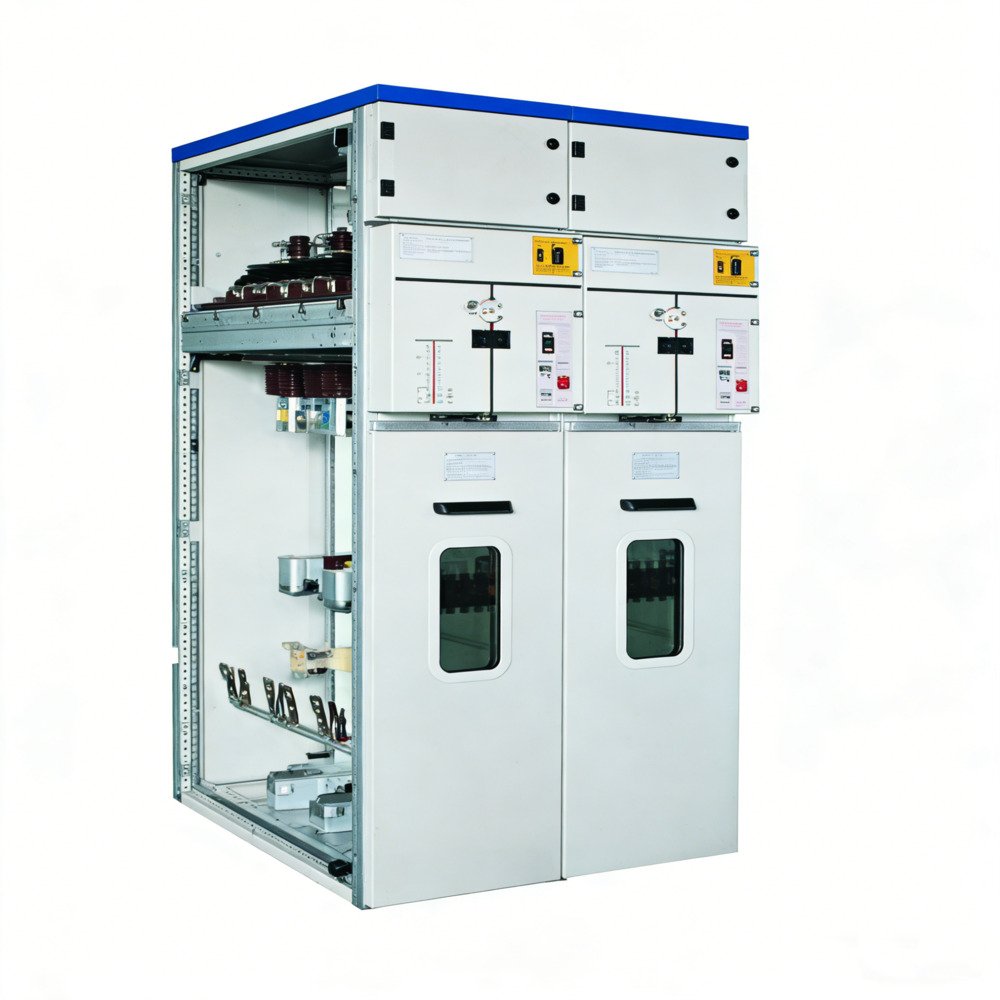

- Gas-Insulated Switchgear (GIS/SF6): Compact, low-maintenance, ideal for urban/harsh environments.
- Air-Insulated Switchgear (AIS): Cost-effective, easy to install for conventional networks.
- Metal-Enclosed/Clad Switchgear: Safe, compartmentalized for personal protection.
- Indoor/Outdoor/Pad-Mounted Switchgear: Adapted to space and environment needs.
Key Benefits
MV switchgear delivers critical value: reliable fault protection, safe maintenance isolation, stable power distribution, compact design (saving 40–60% footprint), long service life with low maintenance, and compliance with IEC 62271 and ANSI standards for global projects.
Applications & Real-World Use Cases
MV switchgear is integral to diverse power scenarios, with proven use cases:

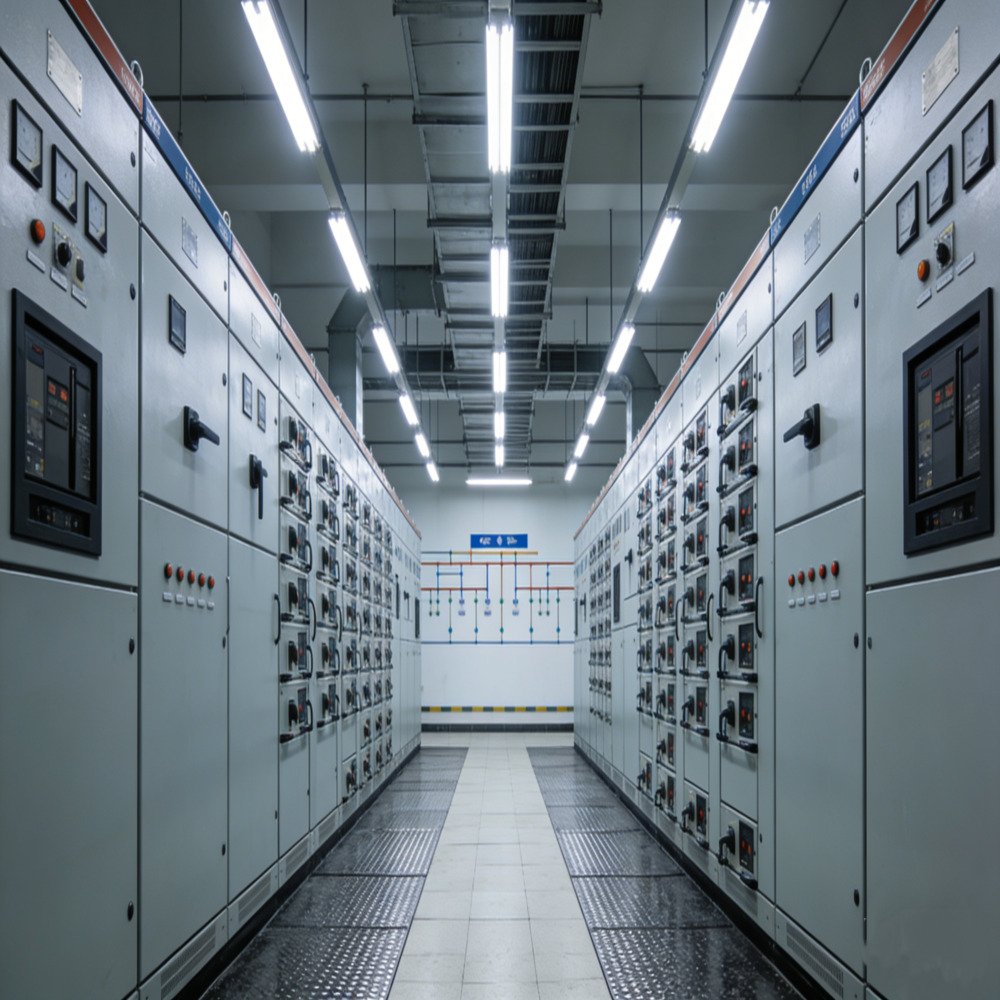

1. Urban Power Distribution
- Case: High-density residential/commercial districts.

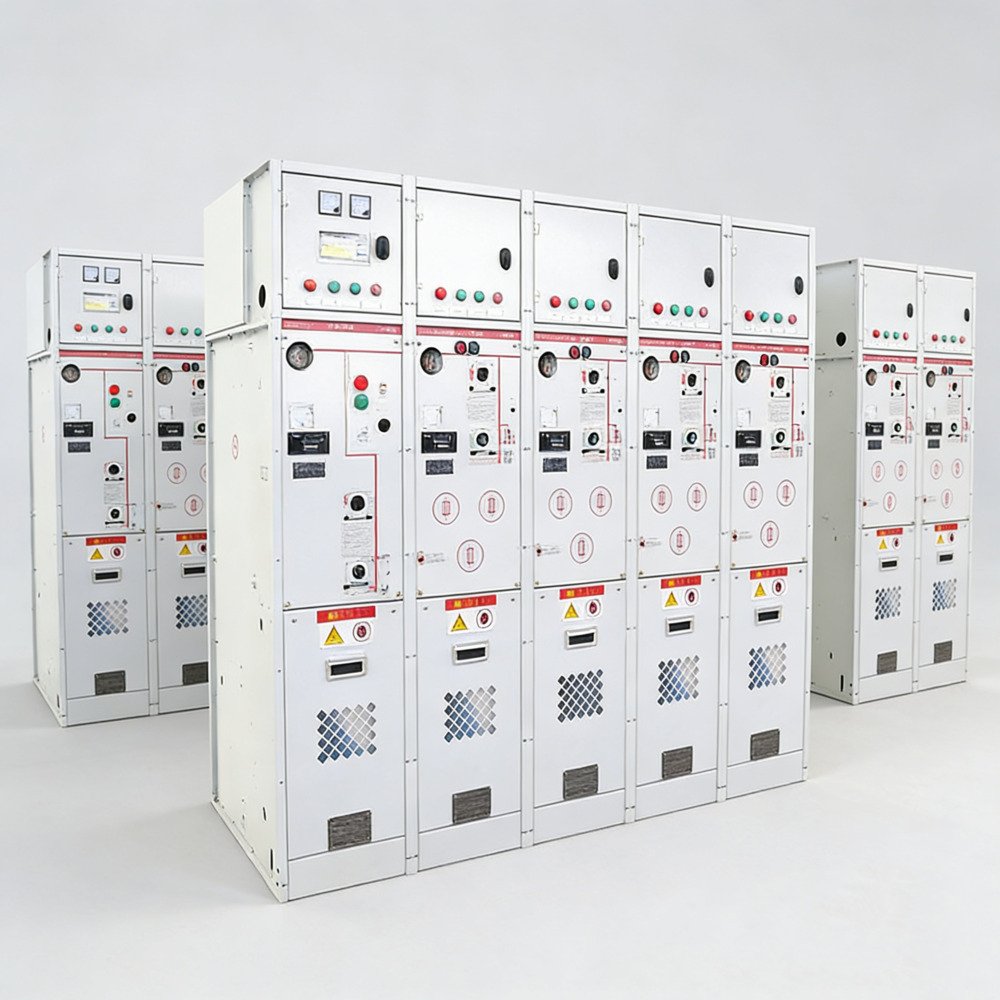

- Equipment: 12 kV/24 kV indoor metal-enclosed RMU switchgear.
- Value: Compact design, N-1 backup, 99.9% power availability for thousands of households.
2. Industrial Manufacturing
- Case: Steel mills, cement/chemical plants.
- Equipment: 12 kV–36 kV metal-clad indoor MV switchgear.
- Value: Protects production lines, avoids shutdowns by quickly isolating faults.
3. Renewable Energy
- Case: 50 MW solar/wind farms.
- Equipment: 36 kV outdoor MV switchgear with vacuum breakers.
- Value: Enables safe grid connection, remote monitoring, and matches renewable project longevity.
4. Data Centers
- Case: Large cloud data centers.
- Equipment: Redundant 12 kV–24 kV MV switchgear.
- Value: Ensures zero downtime, fast fault switching, and prevents data loss.
5. Railway Traction
- Case: Metro/high-speed railway traction.
- Equipment: MV switchgear with specialized vacuum breakers.
- Value: Withstands frequent operation, guarantees stable train power.
6. Harsh Environments
- Case: Offshore platforms, mines, oil fields.
- Equipment: Armored/outdoor MV switchgear.
- Value: Resists humidity, salt spray, dust; reduces remote maintenance needs.
How to Select the Right MV Switchgear
- Confirm voltage level: 12 kV, 24 kV, or 36 kV
- Choose insulation type: AIS, SF6 gas-insulated, solid insulated
- Confirm short-circuit withstand rating
- Select indoor or outdoor installation
- Match application scenarios: urban, industrial, renewables, railway
- Verify compliance with IEC 62271 and local standards
Conclusion
What is medium voltage switchgear? It is the backbone of safe, stable, and efficient medium-voltage power systems. Supported by rich application cases in urban distribution, industry, renewables, data centers, and infrastructure, MV switchgear delivers proven performance in switching, protection, isolation, and monitoring.
Whether you need compact SF6 RMU, metal-clad indoor switchgear, or outdoor pad-mounted solutions, choosing high-quality, standard-compliant MV switchgear improves safety, reduces downtime, and lowers long-term operational costs.
For technical specifications, customized solutions, or project support, consult a professional MV switchgear manufacturer——XiziEnergy to match your system needs. A global leader in clean energy equipment and medium voltage switchgear solutions with 13 years of industry experience.
