What Are Load Break Switch Parts? Components, Functions and Maintenance Guide
Medium voltage power distribution systems rely on high-qualityload break switch parts to deliver safe load switching, reliable circuit isolation and stable long-term operation. Load break switches (LBS), widely used in RMUs, compact substations and metal-enclosed switchgear, are one critical subset covered in our full medium voltage switchgear internal assemblies breakdown, depending on precision internal components to safely interrupt normal load current.
With 10 years of hands-on experience in MV switchgear operation, utility maintenance and renewable energy projects, I confirm that most unexpected LBS failures stem from worn, aged or poorly maintained load break switch spare parts, rather than inherent design defects.
Mastering core component functions, typical wear symptoms and standard replacement cycles effectively lowers maintenance costs, reduces power downtime and improves overall switchgear operational reliability.
This guide comprehensively introduces keyload break switch components, high-wear spare parts, standard inspection procedures, common faults and selection standards for qualified OEM-compatible replacement parts.
Why Load Break Switch Parts Are Critical for MV Switchgear
Why Load Break Switch Parts Are Critical for MV Switchgear
- Deteriorated electrical contact and increased contact resistance
- Excessive temperature rise on switch contacts
- Stiff or failed switching operations
- Internal arc damage and insulation aging
- Mechanical jamming and unplanned power outages
Regular inspection and timely replacement of worn parts are core to preventive maintenance. Predictive part replacement is far more cost-effective and reliable than emergency on-site repairs for power facilities.

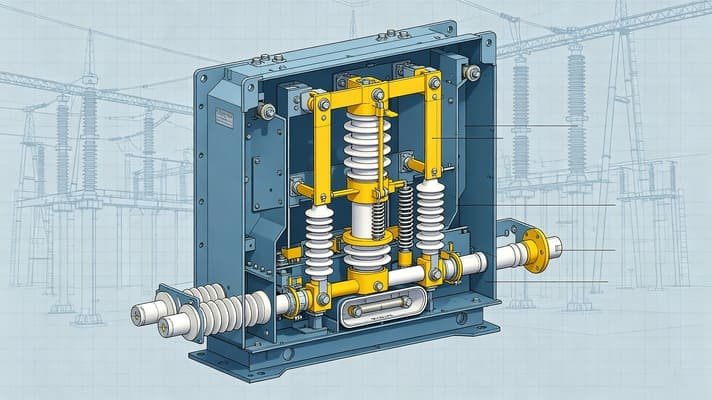

Main Load Break Switch Components and Their Functions
Despite minor structural differences across manufacturers, all standard medium-voltage load break switches adopt the same set of core components. Below is a concise overview of their functions, wear characteristics and inspection priorities.
1. Fixed and Moving Contact Assembly
The contact assembly is the core conductive component of an LBS, responsible for circuit closing, current conduction and load breaking.
When the switch opens, moving contacts separate from fixed contacts, while the arc suppression system eliminates switching arcs to prevent component burnout. Premium contacts adopt silver-plated copper or silver-tungsten alloy, featuring low resistance, high conductivity and excellent arc resistance.
Common wear signs: Surface pitting, arc erosion, discoloration, peeled silver plating and overheating. Severely worn contact assemblies require full integral replacement instead of partial repairs.
2. Arc Extinguishing Chamber (Arc Chute)
As one of the most vital load break switch parts, the arc chute cools, splits and extinguishes switching arcs within milliseconds during load breaking.
Modern LBS adopts air, SF₆ gas or vacuum arc extinction technology. Damaged or contaminated arc chutes lead to residual arcs, contact burnout and accelerated insulation deterioration.
Inspection focus: Cracks, carbon deposits, thermal deformation and loose installation.
3. Operating Mechanism
The operating mechanism converts manual or motorized power into fast, synchronous contact movement. It consists of springs, latches, transmission shafts, bearings, operating levers and mechanical interlocks.
This mechanical system bears frequent operational stress and is prone to spring fatigue, lubrication failure and component misalignment. Regular cleaning and standardized lubrication significantly extend its service life.
4. Operating Shaft
The operating shaft transmits mechanical force from the operating handle to the contact system. Bent, corroded or loose shafts cause incomplete switching, mechanical jamming and interlock malfunctions.
Field inspections focus on shaft straightness, fastening tightness, corrosion status and flexible movement.
5. Insulating Components
Insulating parts isolate live conductors from grounded structures, ensuring equipment and personnel safety. Common materials include epoxy resin, engineering plastic and ceramic insulation.
Insulation is susceptible to moisture, dust pollution, partial discharge and UV aging. Any cracks or carbon tracking must be replaced immediately to avoid insulation breakdown faults.
Load Break Switch Maintenance Checklist
Professional maintenance classifies LBS components into high-wear parts, condition-based replacement parts and long-life structural parts for precise, cost-effective maintenance. The standard inspection checklist is as follows:
| Component | Inspection Items | Recommended Action |
| Contact Assembly | Erosion, pitting, high resistance | Replace if severely worn |
| Arc Chute | Carbon deposit, cracks, heat damage | Clean or replace |
| Operating Mechanism | Lubrication & spring tension | Lubricate and calibrate |
| Operating Shaft | Alignment & corrosion | Repair or replace |
| Mechanical Interlock | Functional validity | Test and verify |
| Insulating Parts | Cracks & tracking marks | Replace damaged parts |
| Fasteners & Bushings | Looseness & contamination | Clean and retighten |
Step-by-Step LBS Inspection Workflow
Standardized inspection procedures ensure accurate fault detection and eliminate hidden operational risks.
Step 1: Safety Isolation & LOTO
Cut off power supply, confirm switch open position, verify zero voltage, implement lockout/tagout (LOTO) and equipment grounding to guarantee maintenance safety.
Step 2: Overall Visual Inspection
Check for burn marks, rust, dust accumulation, oil contamination and mechanical deformation, with focus on moving components.
Step 3: Contact Performance Test
Inspect contact surface wear and test contact resistance. Replace the entire assembly if test values exceed factory standards.
Step 4: Operating Mechanism Test
Check switching speed, spring charging status, handle fluency and interlock synchronization to eliminate jamming and abnormal noise.
Step 5: Insulation Condition Check
Inspect insulation for damage, moisture ingress and carbon tracking. Supplement with insulation resistance tests to evaluate overall insulation performance.
Common LBS Faults, Causes & Solutions
1. Switch Fails to Close Completely
Causes: Fatigued springs, shaft misalignment, damaged latches or mechanical obstruction.
Solution: Inspect the full operating mechanism and replace worn transmission components.
2. Contact Overheating & High Resistance
Causes: Worn contacts, oxidized surfaces, insufficient contact pressure or loose wiring connections.
Solution: Replace the contact assembly and retighten all electrical connections to standard torque values.
3. Stiff Manual Operation
Causes: Dry bearings, component corrosion and deformed linkage parts.
Solution: Clean and lubricate moving parts, and replace aged or deformed components.
4. Repeated Arc Damage
Causes: End-of-life contacts, damaged arc chutes and excessive switching frequency.
Solution: Replace the arc extinguishing chamber and contact assembly, and standardize daily operation cycles.
Field Case: Minor Part Failure Causes Major Downtime
During routine maintenance of an industrial MV feeder, the load break switch failed to close normally. Preliminary troubleshooting ruled out faults in electrical control and protection circuits.
Detailed mechanical inspection identified the root cause as an aged, fatigued operating spring in the LBS mechanism. Though no visible damage appeared, long-term operation reduced spring tension, leading to insufficient closing force.
Replacing this low-cost OEM-compatible spare part instantly restored full equipment operation.
Engineer Summary: Small mechanical parts including springs, pins and bearings are easily overlooked, yet they are the leading cause of unplanned power outages. Adding these parts to regular inspection lists greatly improves switchgear operational stability.
Engineering Maintenance Recommendation
From my decade of hands-on medium voltage switchgear servicing, I never rely purely on fixed calendar timelines to set maintenance cycles. How fast your LBS parts wear depends heavily on real operating conditions: how many times you switch the gear each day, ambient heat, humidity, airborne dust, and continuous load levels.
Units deployed at coastal substations, mining facilities, cement plants or damp industrial workshops corrode and wear out components far faster than gear kept inside clean, climate-controlled indoor distribution rooms. I’ve seen multiple premature contact and spring failures in harsh-site equipment that only followed the standard 6–12 month static inspection schedule.
I always push site teams to run condition-based maintenance instead of rigid time-based checks. Track total switching cycles, take regular contact resistance readings, run annual thermal scans, and complete full mechanical function tests every few years. This method lets you replace worn parts only when necessary, cutting unnecessary spare part costs while drastically lowering unplanned outage risks on your distribution network.
Preventive Maintenance Cycle
- 6–12 Months: Visual inspection, dust cleaning, operating force test and interlock function verification
- 2–3 Years: Contact inspection, arc chamber cleaning, lubricant replacement and contact resistance testing
- 5–8 Years: Full equipment overhaul, high-wear parts replacement, spring renewal and comprehensive functional testing
Shorten maintenance cycles for switchgear operating in coastal, dusty, high-humidity and corrosive environments to accelerate wear.
How to Select Qualified OEM-Compatible Load Break Switch Parts
Most medium-voltage switchgear serves for decades, while original factory parts are often discontinued or subject to long lead times. High-quality OEM-compatible load break switch parts have become the optimal solution for equipment maintenance.
Reliable compatible parts must meet the following core standards:
- 100% dimensional and mounting interface compatibility with original equipment
- High-conductivity contacts and anti-aging insulating materials
- Stable mechanical and electrical performance compliant with IEC standards
- Complete factory inspection and quality traceability
Note: Compatible replacement parts for Schneider Electric and other mainstream brands are exclusively for equipment maintenance, not original branded products.
FAQs About Load Break Switch Parts
1. What are load break switch parts?
Load break switch parts refer to all mechanical, electrical and insulating components that support MV load break switch operation, including contacts, arc chutes, operating mechanisms, shafts, springs, insulators and interlock parts.
2. Which LBS parts wear the most?
Contact assemblies, operating springs, arc chutes, bearings and operating shafts have the highest wear frequency under standard operating conditions.
3. Are OEM-compatible parts safe for replacement?
Yes. Qualified OEM-compatible parts match original equipment in size, performance and installation, fully comply with IEC standards, and support long-term stable operation without equipment modification.
4. How often should LBS parts be inspected?
Conduct visual inspections every 6–12 months, mechanical overhauls every 2–3 years, and full comprehensive overhauls every 5–8 years. Adjust cycles for harsh operating environments.
5. What are the replacement warning signs?
Stiff operation, abnormal noise, contact overheating, arc marks, mechanical jamming and rising contact resistance are typical failure warning signs requiring part replacement.
6. Are compatible parts available for Schneider LBS switchgear?
Yes. Professional manufacturers provide full-range compatible spare parts for Schneider medium-voltage switchgear and RMU equipment for global maintenance projects.
Conclusion
Load break switch operational reliability depends on the condition of every internal component. Most unplanned LBS failures result from neglected wearable part aging and insufficient preventive maintenance, rather than complex electrical faults.
Standardizing inspection cycles and replacing worn load break switch parts on time effectively reduce equipment failure rates and lifecycle maintenance costs. Adopting high-quality OEM-compatible replacement parts is the most economical and reliable solution for long-term MV switchgear operation and maintenance.
