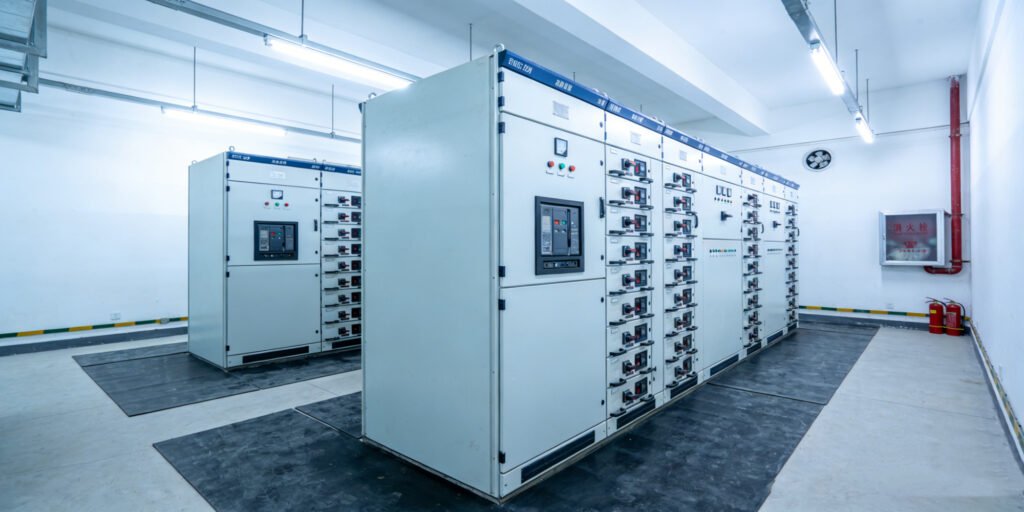

A Ring Main Unit(RMU) is a factory‑assembled, metal‑enclosed medium‑voltage switchgear system built for closed‑loop ring distribution networks. Operating at 7.2kV–36kV and fully compliant with IEC 62271‑200, RMUs integrate switching, protection, isolation, and monitoring into one compact cabinet.
They are widely used in urban grids, industrial plants, commercial buildings, and renewable energy projects to deliver stable, safe, and space‑efficient power distribution.
Next, we will explore the reasons why ring main units play a crucial role in the electrical system from the perspectives of working principle, core components, advantages and types.
How Does a Ring Main Unit (RMU) Work?
RMUs rely on a closed‑loop ring network to ensure uninterrupted power supply. Under normal operation, power flows bidirectionally through the ring to supply loads. When a fault, equipment failure, or maintenance occurs, the RMU quickly isolates the affected section and reroutes power through an alternative path. This N‑1 redundancy drastically reduces outages and improves grid stability.

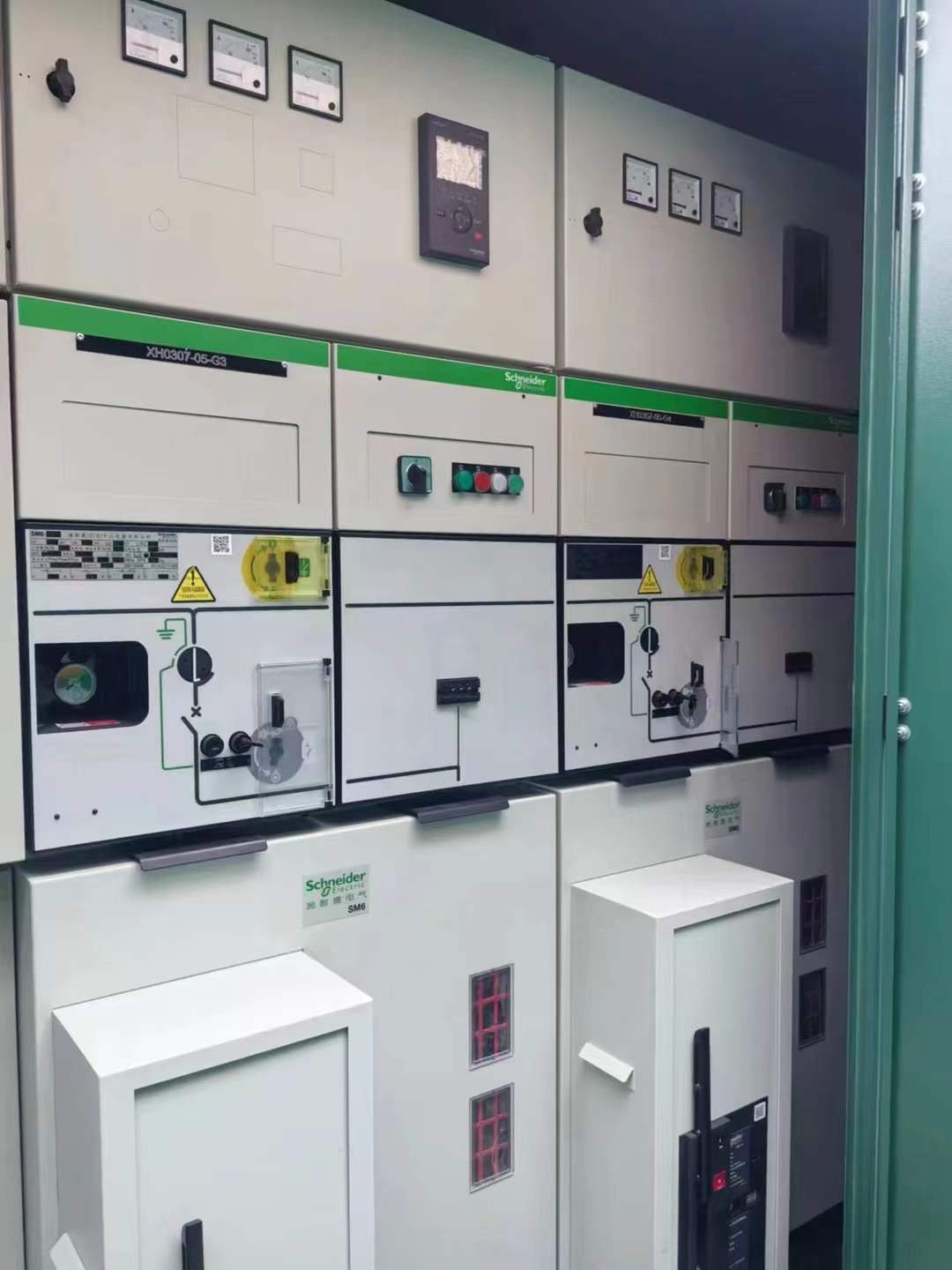

Built‑in safety interlocks prevent dangerous operations, while earthing switches ensure secure maintenance. Protection relays, current transformers (CTs), and voltage transformers (VTs) enable real‑time monitoring, overcurrent protection, and earth‑fault detection to safeguard equipment and personnel.

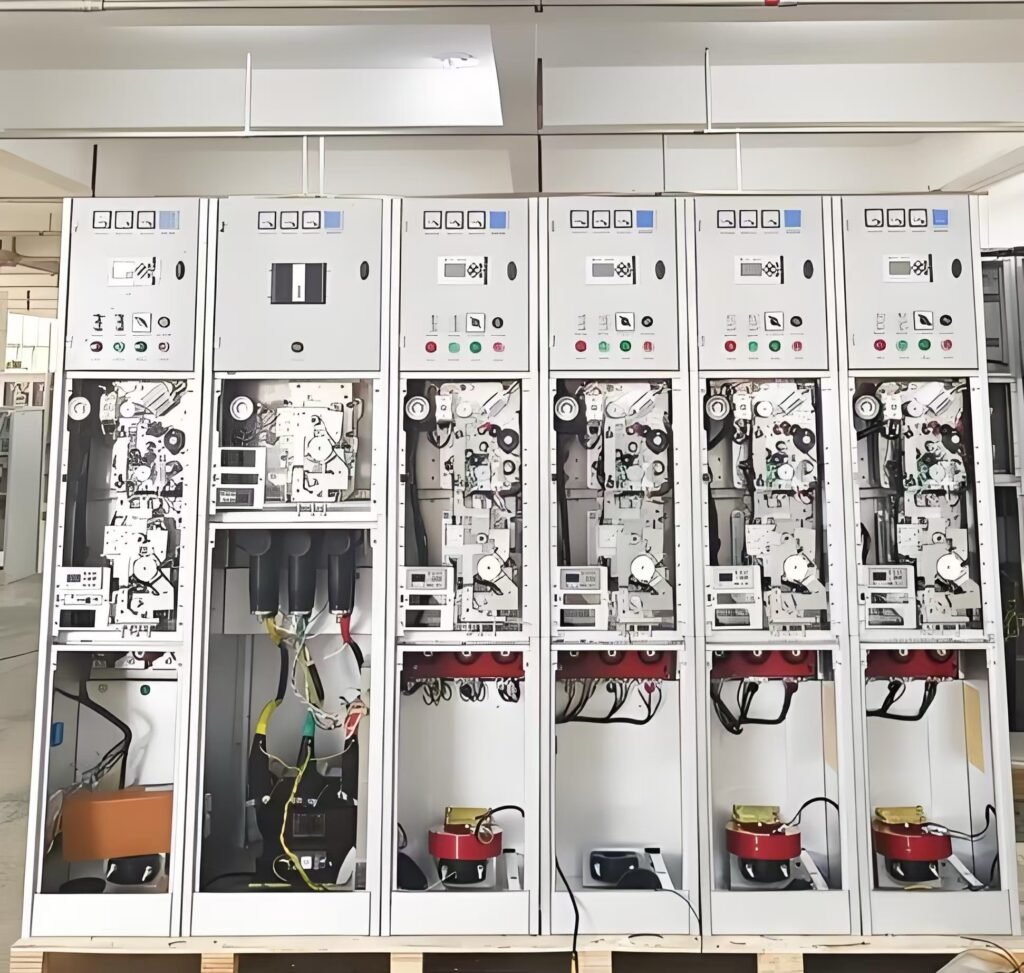

Core Components of a Ring Main Unit
Every RMU uses a coordinated set of components for reliable performance, and you can refer to our complete breakdown of each part in What Are the Components of RMU? A Complete Guide to Ring Main Unit Parts for deeper details:
Every RMU uses a coordinated set of components for reliable performance:
1. Load Break Switch: Handles normal load current switching up to 630A
2. Circuit Breaker / Fuse Combination: Clears short‑circuit faults up to 25kA
3. Earthing Switch: Provides safe grounding during maintenance
4. Copper Busbars: Deliver stable power transmission
5. Insulation System: SF6 gas, solid, vacuum, or air insulation
6. Protection Relays: Support IEC 61850 communication and SCADA integration
These components work together to create a robust, low‑failure power distribution solution.
Key Advantages of Ring Main Units
1. Extreme Reliability: Ring topology delivers up to 99.95% power availability
2. Space Efficiency: 40–60% smaller than traditional switchgear, ideal for urban sites
3. Fast Installation: Factory‑assembled and pre‑tested for rapid deployment
4. Low Maintenance: Sealed designs reduce upkeep and lifecycle costs
5. High Safety: Metal‑enclosed structure and interlocked operation
6. Strong Environmental Resistance: IP54–IP65 rated for indoor and outdoor use
7. Flexible Configuration: Supports modular expansion and custom setups
Types of Ring Main Units
RMUs are classified by insulation, structure, and installation:
1. SF6 Gas‑Insulated RMU: Compact, sealed‑for‑life, ideal for urban substations
2. Solid‑Insulated RMU: Eco‑friendly, gas‑free, suitable for green projects
3. Vacuum‑Insulated RMU: Long lifespan, excellent arc interruption
4. Air‑Insulated RMU: Cost‑effective for dry indoor environments
They are also available in 2‑, 3‑, 4‑, and 6‑section configurations to match different distribution needs.
Typical Applications of RMUs
RMUs serve as critical infrastructure across many sectors:

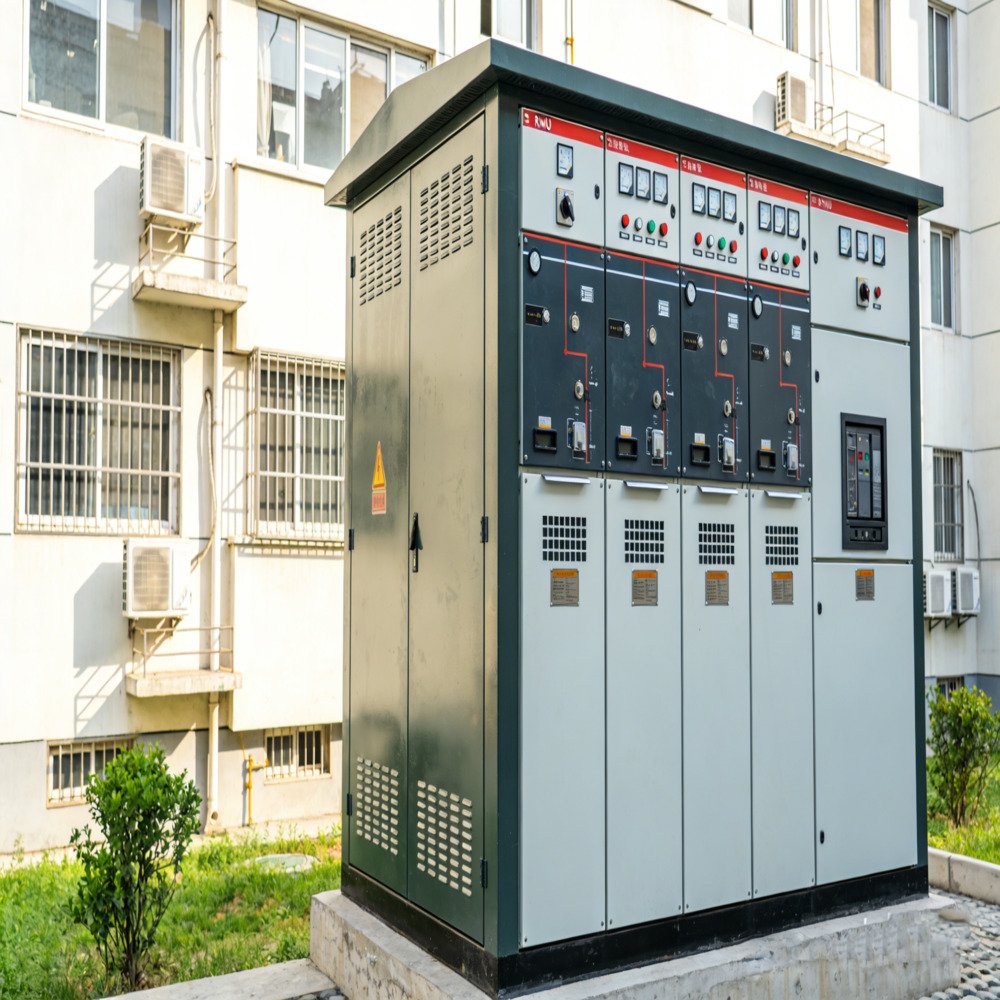

1. Urban Distribution: Underground substations, high‑rises, shopping malls
2. Industrial Facilities: Manufacturing plants, processing units, continuous production lines
3. Commercial Buildings: Data centers, offices, hotels, and hospitals
4. Renewable Energy: Solar farms, wind parks, battery energy storage systems
5. Public Infrastructure: Water treatment plants, transportation hubs, telecom facilities
Their compact design and high reliability make them the top choice for space‑limited and mission‑critical sites.
Why RMUs Outperform Traditional Switchgear
Compared to conventional medium‑voltage switchgear, RMUs offer faster installation, smaller footprint, lower maintenance, and better reliability. They reduce installation time by 50–70% and cut long‑term operational costs, making them highly cost‑effective for modern power networks.
Conclusion
The Ring Main Unit (RMU) is an essential part of modern medium‑voltage power distribution. Its compact design, redundant ring topology, strong safety features, and low maintenance requirements make it ideal for urban, industrial, and renewable energy applications. Choosing an IEC‑compliant, high‑quality RMU improves grid stability, reduces failure risks, and supports long‑term operational efficiency.
As smart grid and eco‑friendly technologies advance, RMUs will continue to evolve with SF6‑free designs and digital monitoring capabilities, remaining a core solution for reliable power distribution worldwide.
