How to Test an SF6 Density Relay: Step-by-Step Field Procedure, Tools, and Common Mistakes

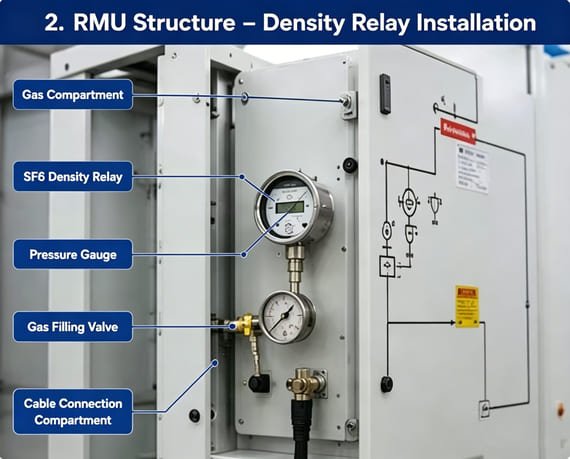

SF6 density relays are critical safety components for GIS, RMUs, and medium-voltage switchgear. Unlike standard pressure gauges, they feature temperature compensation to accurately monitor actual SF6 density in sealed compartments. They trigger alarms and equipment lockouts when gas density falls below factory thresholds, effectively preventing insulation faults and unplanned switchgear tripping in power distribution systems.

While engineered for long service life, SF6 density relays suffer from calibration drift, seal aging and environmental degradation after years of field operation. Routine on-site testing is vital to substation preventive maintenance, minimizing false alarms, redundant servicing, and hidden insulation hazards. This field-tested guide outlines standardized testing procedures, essential tools, common onsite mistakes and optimized maintenance schedules, complying with 2026 mainstream power equipment maintenance specifications.

Why SF6 Density Relay Testing Is Critical for Substation Safety

The biggest advantage of an SF6 density relay over a standard pressure gauge is temperature compensation. SF6 pressure naturally rises and falls with temperature shifts, but density relays filter out this thermal interference. They measure actual gas mass inside the compartment — the only reliable metric for judging SF6 insulation condition.

Routine field testing ensures your density relay works as intended in daily operation:

• Triggers low-density alarms accurately at factory-set thresholds
• Activates safety lockouts reliably to protect faulty switchgear at critical density levels
• Maintains stable, consistent monitoring throughout the equipment lifespan
• Prevents unplanned GIS and RMU downtime and medium-voltage system faults

For continuously running utility and industrial substations, SF6 relay testing is proactive maintenance, not emergency troubleshooting. It serves as a primary safeguard for all gas-insulated switchgear assets.

When to Test SF6 Density Relays

Testing frequency depends on equipment type, installation environment, and OEM guidelines. Experienced maintenance teams always conduct mandatory testing in these common scenarios to catch hidden defects early:

• Annual preventive maintenance and routine substation inspections
• After relay removal, replacement, or reinstallation
• Following SF6 gas top-ups, refills, or full gas replacement
• After repairing gas leaks or replacing worn sealing parts
• When intermittent or persistent SF6 density alarms occur repeatedly
• Before restarting switchgear after major overhauls

Outdoor switchgear endures extreme seasonal temperature changes, leading to more obvious SF6 density fluctuations. We recommend extra quarterly checks and biennial full tests for outdoor units to keep performance stable.

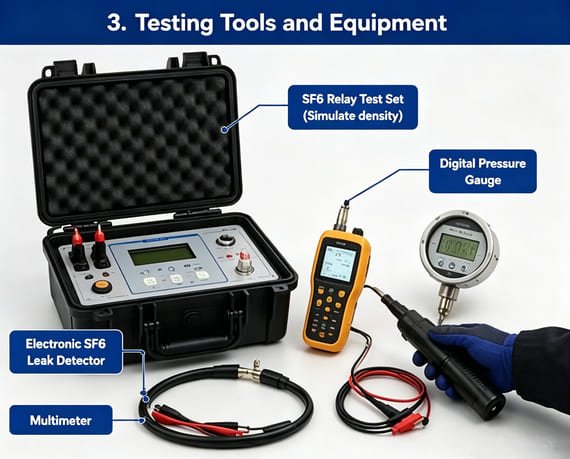

Required Calibrated Tools for SF6 Relay Testing

Test accuracy hinges entirely on calibrated, industry-compliant tools. Using out-of-calibration or uncertified equipment always leads to incorrect relay adjustments, recurring false alarms, and unexposed safety hazards. The standard on-site toolkit includes:

• Dedicated SF6 density relay test set (for density simulation and calibration)
• High-precision pressure and density calibration unit
• Vacuum pump (for pre-test compartment evacuation)
• Calibration-certified digital precision pressure gauge
• Digital multimeter (for secondary contact continuity checks)
• High-sensitivity SF6 gas leak detector
• OEM official parameter datasheets
• Full SF6 operation personal protective equipment (PPE)

Critical Field Note: All testing instruments must be within valid calibration cycles. Even minor measurement errors cause relay setpoint drift and compromise overall switchgear safety.

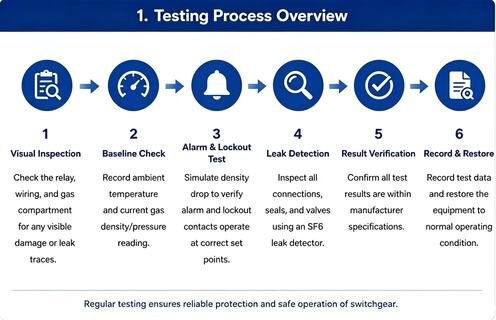

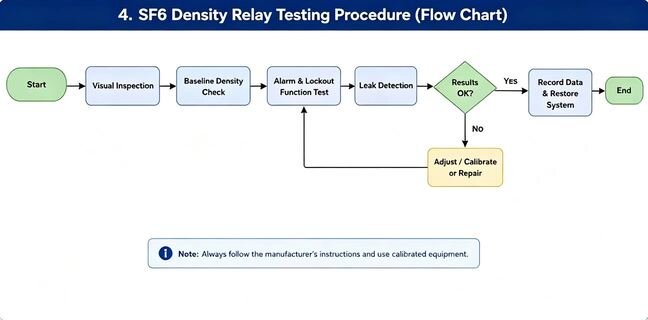

Step-by-Step SF6 Density Relay Testing Procedure

Step 1: Pre-Test Visual and Mechanical Inspection

Before hooking up any test gear, inspect the relay and adjacent gas compartment thoroughly to rule out pre-existing defects. Focus on these common on-site issues:

• Cracked, deformed, or aging relay housing
• Loose, oxidized, or poorly crimped secondary wiring terminals
• Corrosion, dust buildup, or moisture on flanges and threaded fittings
• Surface contamination, heavy dust, or internal condensation
• Visible traces of past gas leakage or degraded seals

Fix all mechanical and sealing defects first before functional testing, otherwise test results will be invalid and unreliable.

Step 2: Baseline Density and Temperature Cross-Check

Record ambient temperature, real-time compartment pressure, and displayed density values, then compare them against OEM standard data. A common rookie mistake is judging equipment condition by raw pressure readings alone. Always convert raw pressure to standardized density with temperature compensation. Resolve any abnormal deviations before moving to functional testing and calibration.

Step 3: Alarm and Lockout Contact Function Test

Use a professional SF6 test set to slowly and steadily simulate SF6 density drop inside the sealed compartment. Observe relay performance in real time to verify three key functions, which also applies to our digital monitoring model 7S-RDM-100 SF6 N2 Gas Density Relay Transmitter:

• Low-density alarms trigger within OEM allowable tolerance
• Safety lockout contacts act reliably at the critical density threshold
• Electrical contacts switch smoothly with no delay, sticking, or intermittent faults

Early or delayed activation means the relay has calibration drift and needs recalibration. Severe, uncorrectable deviation indicates end-of-life failure, requiring direct replacement.

Step 4: Full SF6 Gas Leak Inspection

A perfectly working relay cannot fix ongoing gas leaks. Functional testing only checks relay performance, not compartment tightness. Post-test leak detection is mandatory to find hidden micro-leaks. Check our full breakdown of fault points, detection tools and long-term prevention plans for SF6 gas leakage in RMU and GIS switchgear. Pay close attention to these high-risk sealing points:

• Gas filling valves and pipe connection interfaces
• Aging O-rings, gaskets, and sealing components
• Relay mounting threads and flange contact surfaces
• Compartment filling and pressure relief ports

Catching micro-leaks early stops recurring density alarms and repeated gas refills, cutting long-term maintenance costs significantly.

Step 5: Data Logging and System Restoration

Once testing finishes, restore all wiring, pressure settings, and switchgear configurations to their original operating state. Log full test data for equipment performance tracking and trend analysis. Be sure to record:

• Exact test date and on-site ambient temperature
• Measured alarm and lockout setpoints
• Calibration results and initial/final SF6 density readings
• Defect findings and corresponding rectification measures

Complete historical logs let us predict seal aging and calibration drift in advance, enabling predictive maintenance instead of passive fault response.

4 Most Common SF6 Relay Testing Mistakes

1. Ignoring Temperature Compensation

Many field technicians still judge SF6 equipment status using uncompensated pressure values. Pressure fluctuates naturally with temperature, so raw pressure data never reflects true gas density. This error leads to unnecessary recalibration, premature relay replacement, and wasted manpower and materials.

2. Using Out-of-Calibration Test Tools

Uncalibrated testing devices produce inaccurate baseline data, leading to wrong relay setpoint adjustments. This causes two major on-site risks: false alarms during normal operation, or failed lockout protection during actual low-density faults.

3. Skipping Post-Test Leak Checks

Some teams only test relay mechanical functions and ignore compartment tightness. A fully functional relay will still trigger frequent alarms if micro-leaks exist. Relay performance and gas tightness are two independent indicators and both need separate verification.

4. Checking Only Mechanical Movement

Normal mechanical pointer movement does not guarantee valid electrical signals. Contact oxidation, loose wiring, and internal aging can cause signal failure even with smooth mechanical operation. Multimeter continuity testing for alarm and lockout circuits is always required.

Real Field Case: Fixing Recurring SF6 Density Alarms

A 12 kV outdoor RMU at a manufacturing plant suffered intermittent SF6 density alarms for six months straight during annual maintenance. On-site staff initially assumed the relay was faulty and planned a direct replacement.

To avoid blind part replacement, our team performed a full standard test. The results showed both alarm and lockout setpoints were within OEM tolerance — the relay itself worked perfectly. Subsequent high-precision leak testing found consistent micro-leaks at aged O-rings, worn out from long-term outdoor temperature cycling and UV exposure.

We replaced all aging seals, refilled the compartment to standard SF6 density, and retested the relay. No abnormal alarms appeared in the following 12 months.

Optimized SF6 Relay Maintenance Schedule

This practical maintenance cycle balances operational safety and maintenance efficiency, adjustable based on local climate and OEM requirements.

Maintenance Interval	Required Field Tasks
Monthly	Check real-time SF6 density values and alarm logs
Every 6 Months	Visual inspection of relay body, secondary wiring, and all sealing points
Annually	Full functional relay test + comprehensive SF6 leak detection
Every 3–5 Years	Professional calibration verification and aging seal inspection
After Gas Refill/Leak Repair	Re-test alarm and lockout functions before equipment re-energization

Field Best Practices for Reliable SF6 Relay Testing

Based on years of substation maintenance experience, these simple practices eliminate most common testing errors:

• Only use calibration-certified tools within valid service cycles
• Check leaks and seals first before confirming relay failure
• Archive all test data to track long-term equipment performance trends
• Proactively replace aging seals during major maintenance work
• Test alarm and lockout circuits separately to avoid hidden faults
• Follow model-specific OEM parameters strictly, no universal calibration

Conclusion

SF6 density relay testing is a complete preventive maintenance workflow, not a simple alarm check. It covers visual inspection, temperature-compensated density verification, electrical contact testing, full leak detection, and standardized data recording. Following field-validated procedures and avoiding common mistakes greatly improves GIS and RMU reliability, reduces false alarms and unplanned downtime, and extends the service life of SF6-insulated switchgear.

For industrial sites and utility substations, regular, standardized SF6 density relay testing is an essential part of modern power asset maintenance.

FAQs About SF6 Density Relay Testing & Calibration

1. How often should you test an SF6 density relay?

The industry standard is one full functional test per year. Additional tests are mandatory after SF6 refilling, relay replacement, leak repairs, and major overhauls before putting equipment back into service.

2. Can SF6 density relays be recalibrated on-site?

Most mainstream relay models support on-site recalibration with dedicated test sets. All adjustments must comply fully with OEM specifications to guarantee monitoring accuracy.

3. What causes frequent false SF6 density alarms?

False alarms rarely come from faulty relays. The main triggers are sharp temperature changes, calibration drift, loose secondary wiring, and minor ongoing SF6 micro-leaks.

4. What is the difference between testing and calibration?

Testing checks if relay action setpoints meet factory tolerances. Calibration adjusts out-of-tolerance setpoints back to the standard range.

5. Does a failed test mean you must replace the relay immediately?

Not necessarily. Most test failures stem from calibration drift, seal aging, or gas leakage. Always identify the root cause first — most issues can be fixed via recalibration or seal replacement instead of full relay replacement.
