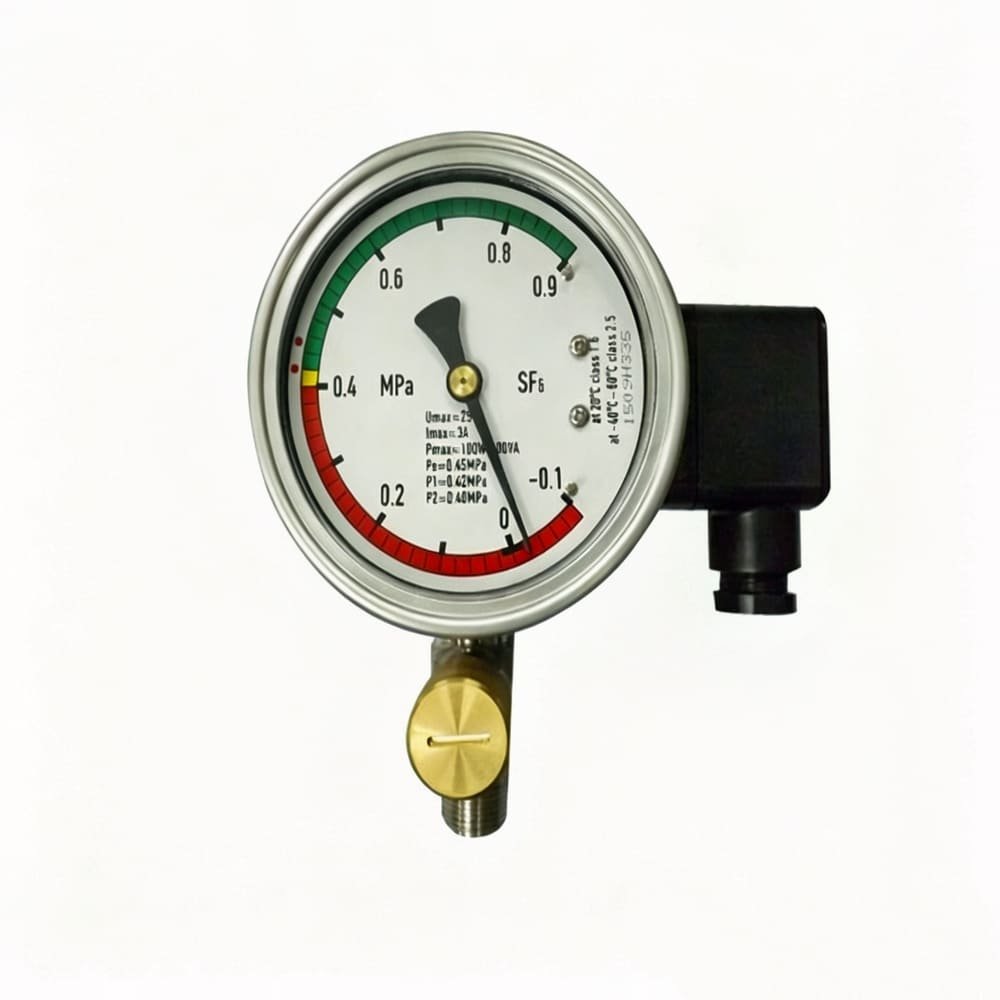

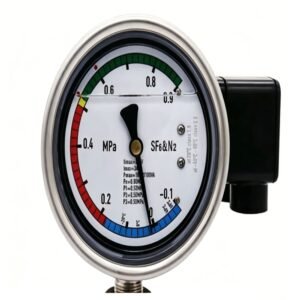

This SF6 gas density monitor checks SF6 gas density and pressure in real time. It features high accuracy, strong sealing and anti-vibration performance. Fit for all common SF6 high voltage power equipment.
（1）Multi-port integration: The charging port, micro-water test port, calibration port, and gas shut-off valve port are combined into one for this SF6 gas density monitor.
（2）Reduced leakage risk: Minimizes potential leakage points by eliminating multiple connection points, greatly improving sealing reliability with low leakage performance for SF6 switchgear.
（3）Error-proof operation: Direct calibration of the SF6 gas density relay without extra gas circuit opening and closing steps, avoiding misoperation for RMU and GIS equipment.
（1）Integrated welding construction: Fully automatic argon arc welding makes the SF6 density monitor solid and unified in structure.
（2）Helium mass spectrometer leak detection: All units pass strict helium leak testing, keeping leakage rate ≤ 1×10⁻⁸ mbar·l/s and maintaining long-term low leakage performance.
（3）Advanced sealing technology: Special seal design for dial glass and contact leads stops oxidation, prolongs service life, and keeps stable sealing and testing accuracy for high voltage SF6 equipment.
（1）Compact form factor: Small size design allows this SF6 gas density relay to fit most common SF6 electrical equipment.
（2）Extensive specification range: Over 40 standard types are available, matching most local and imported RMU, GIS and high voltage switchgear models.
（3）Customizable contact configuration: 1~3 pairs of contacts (up to 4 pairs optional), with NO and NC types optional, to fit different control system needs of power facilities.
（1）High accuracy and compensation: Adopts high precision design with Class 1.0 accuracy at 20°C and Class 1.6 accuracy from -40°C to +65°C, offering stable temperature compensation for outdoor and indoor use.
（2）Vibration and shock resistance: This SF6 density monitor withstands 20 m/s² vibration and 50g impact, with good anti vibration ability for harsh industrial working environments.
（3）Integrated control and indication: Combines real-time SF6 pressure and density display with electric contact control, easy for daily operation and maintenance of high voltage power equipment.
| Parameter | Details |
|---|---|
| Accuracy Class | Class 1.0 (at 20°C); Class 1.6 (at -40°C ~ +65°C) |
| Contact Rating | AC/DC 250V, 100VA/50W (Micro-switch Type) |
| Sealing Performance | ≤ 1×10⁻⁸ mbar·l/s (Helium Leak Test) |
| Dielectric Strength | Power Frequency Withstand Voltage: 2kV, 1min (Contacts to Ground) |
| Vibration Resistance | 20 m/s² |
| Shock Resistance | 50g |
| Contact Quantity | 1~3 pairs (up to 4 pairs optional), Normally Open/Normally Closed configurable |
| Protection Grade | IP65 |
