An SF₆ density barometer is a precision instrument designed to monitor the density of sulfur hexafluoride (SF₆) gas in high-voltage equipment. Unlike standard pressure gauges, it automatically compensates for temperature fluctuations, delivering accurate readings that reflect the true insulation performance of the gas. This makes it a cornerstone of predictive maintenance in power systems.
Core Functions of Barometers in Electrical Systems
At their core, electrical barometers serve three primary purposes:
1. SF₆ Gas Density Monitoring: SF₆ is widely used as an insulating and arc-quenching medium in high-voltage equipment. Barometers continuously track its density, ensuring it remains within optimal operating ranges. A drop in density signals a gas leak, which can compromise insulation and lead to catastrophic failure.
2. Pressure & Temperature Compensation: Advanced models, like the SF₆ density gauges from Xizi Energy, automatically compensate for temperature fluctuations. This ensures accurate pressure readings regardless of environmental conditions, preventing false alarms and unnecessary maintenance.
3. Alarm & Trip Functionality: Many barometers integrate electrical contacts to trigger alarms or system trips when pressure drops below safe thresholds. This proactive protection prevents equipment damage and reduces the risk of power outages.
Key Types of Electrical Barometers
Electrical barometers come in various form factors tailored to different applications:

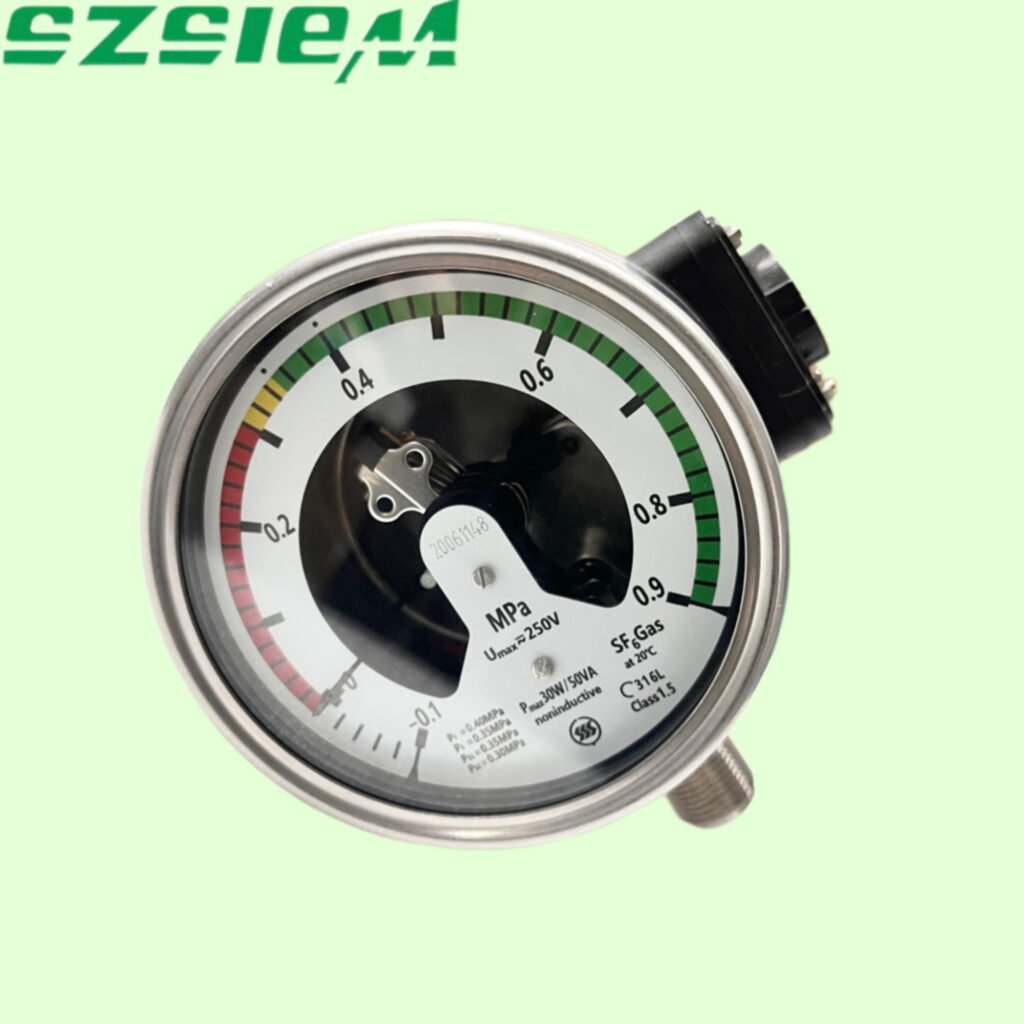

1. Direct-Mounted SF₆ Density Gauges: These compact, robust units (like the stainless steel models from Xizi Energy) are directly mounted on equipment, providing real-time pressure readings with Class 1.5 accuracy. Ideal for circuit breakers and GIS, they feature color-coded scales (red/yellow/green) for quick visual assessment of gas status.

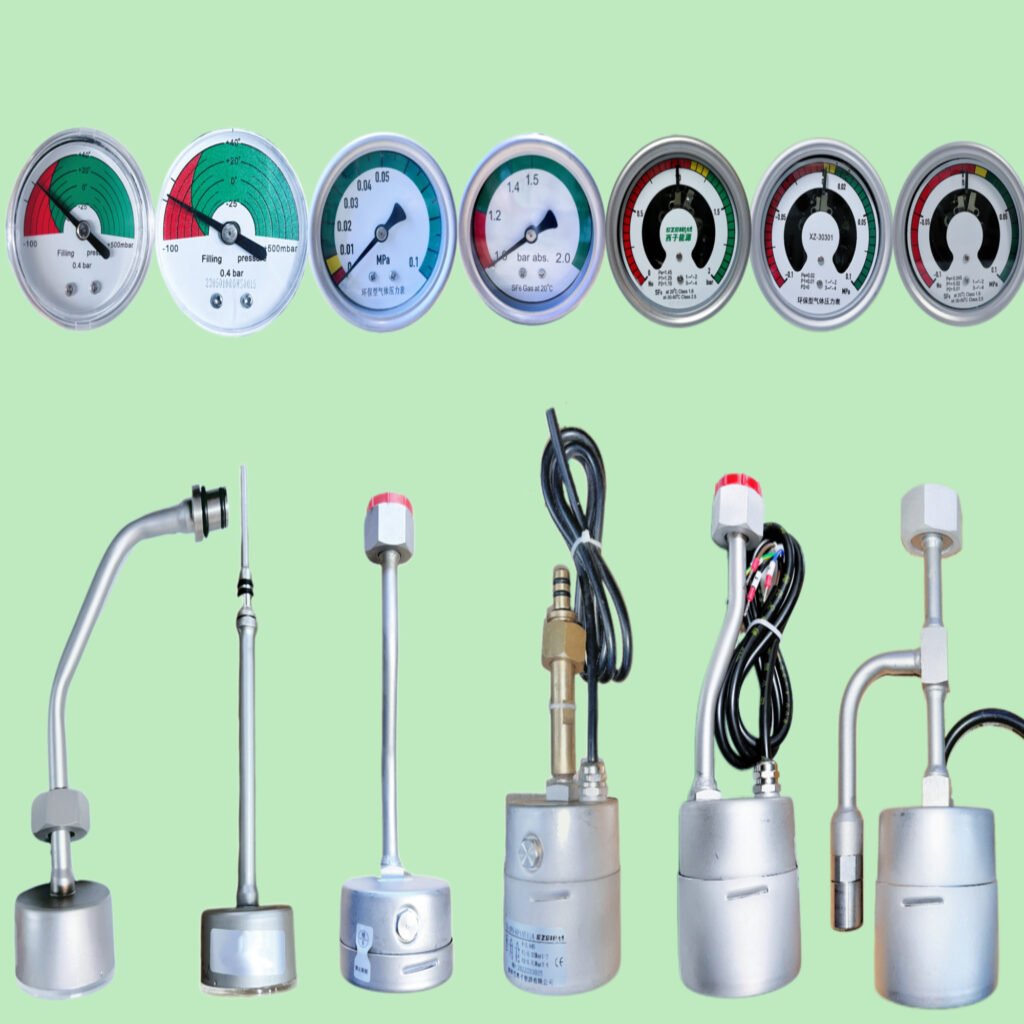

2. Remote-Mounted Indicators: For equipment in hard-to-reach locations, remote barometers with extended probes offer flexible installation. Their corrosion-resistant probes and hermetically sealed casings ensure reliable performance in harsh industrial environments.
3. Electro-Mechanical Monitors: These advanced units combine pressure sensing with electrical outputs, enabling integration into SCADA systems for remote monitoring and predictive maintenance.
Critical Applications of Barometers in Power Systems
Barometers are deployed across a wide range of high-stakes scenarios:
High-Voltage Circuit Breakers: They monitor SF₆ density to ensure reliable arc interruption during fault conditions.

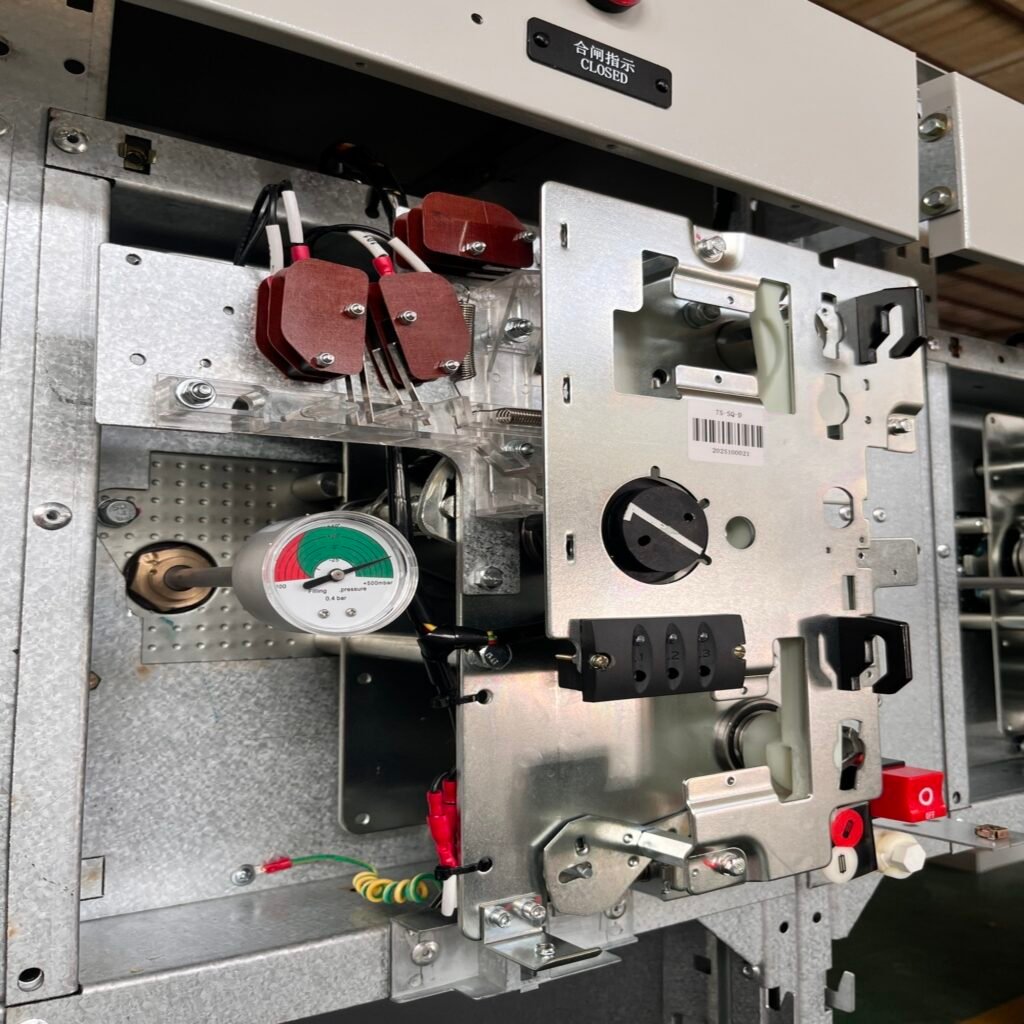

Gas-Insulated Switchgear (GIS): In compact substations, barometers prevent gas leaks that could compromise insulation and system integrity.
Industrial Power Distribution: In factories and refineries, they ensure safe operation of medium-voltage equipment, aligning with OSHA and local safety regulations.
Renewable Energy Facilities: In solar and wind farms, barometers monitor the condition of SF₆-insulated transformers and switchgear, ensuring stable power flow to the grid.
By providing real-time visibility into SF₆ density and pressure, these devices protect personnel, prevent equipment damage, and ensure compliance with the strictest safety standards. For any organization operating medium- or high-voltage systems, investing in premium barometers from trusted manufacturers like Xizi Energy is an investment in long-term safety and reliability.
Explore Xizi Energy’s range of SF₆ density barometers and pressure monitors to enhance the safety and reliability of your power systems. Contact our team today to find a tailored solution for your substation or industrial application.
