The 7S-EL-DC110V electric operating mechanism enables motorized tripping and closing of switchgear switches, status signal feedback, and interlocking with switchgear anti-misoperation logic, supporting distribution automation control.

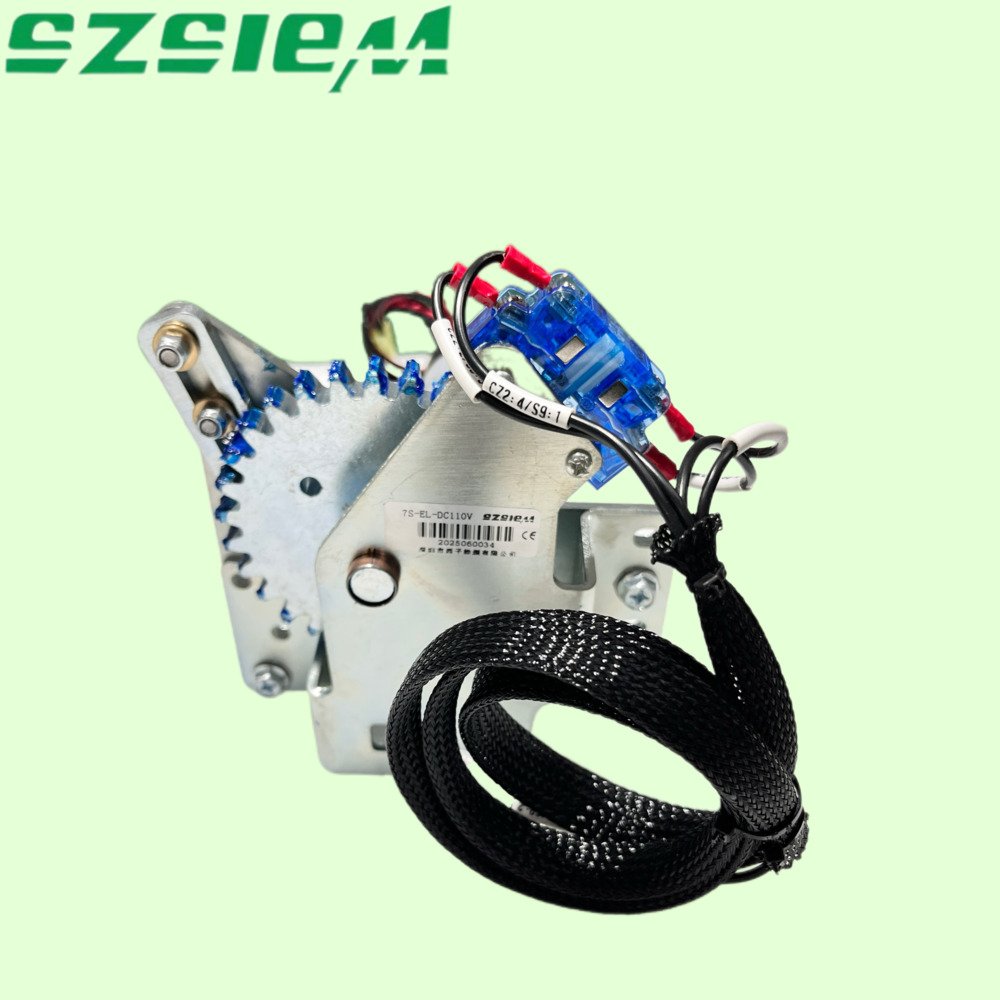

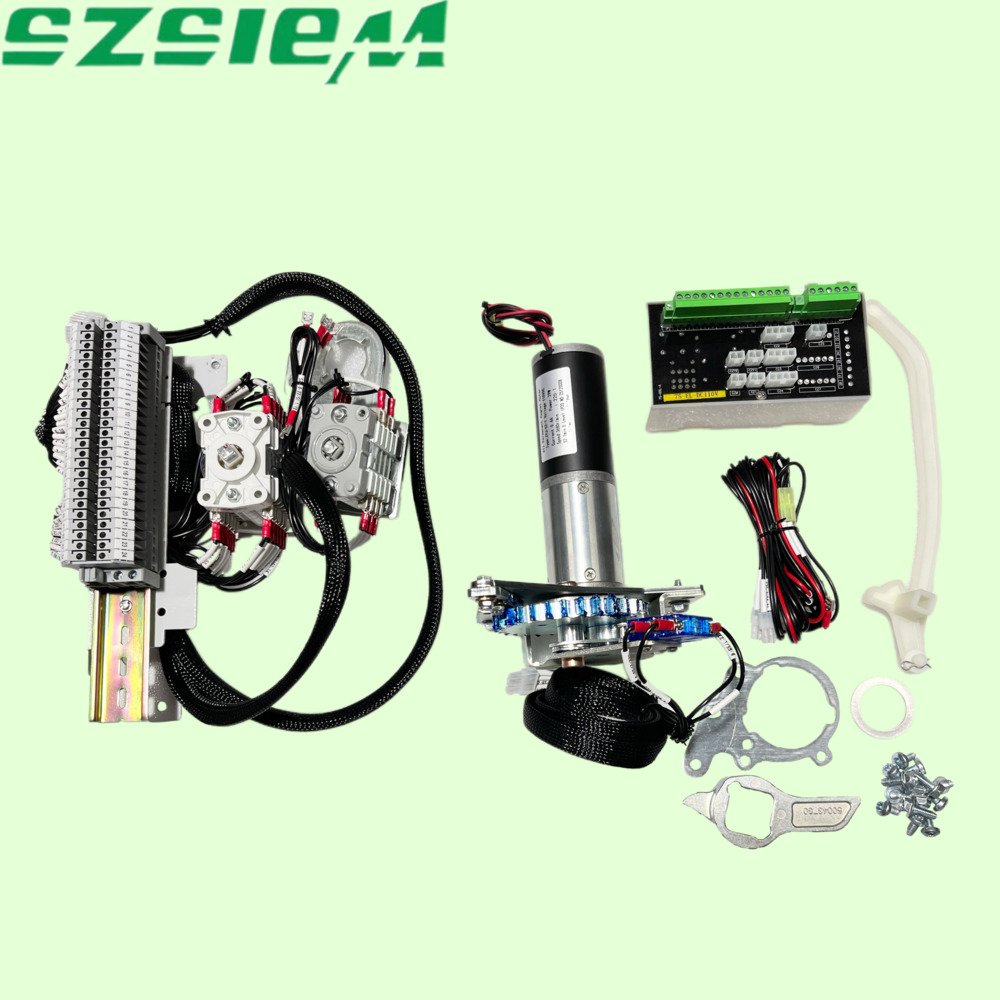

• Drive Unit: DC motor, gear/linkage transmission mechanism, matched to the make/break torque of switchgear switches;

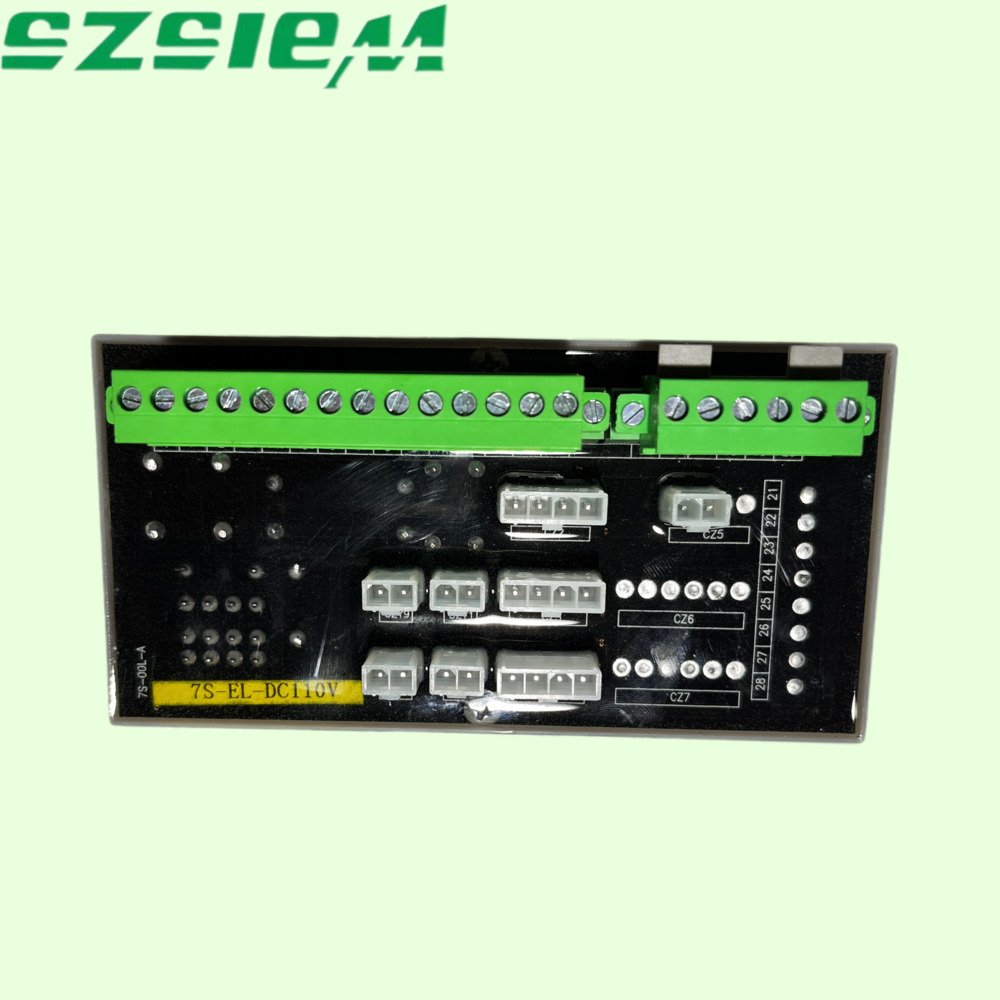

• Control Unit: PCB control board (including interlock logic, communication module), terminal block;

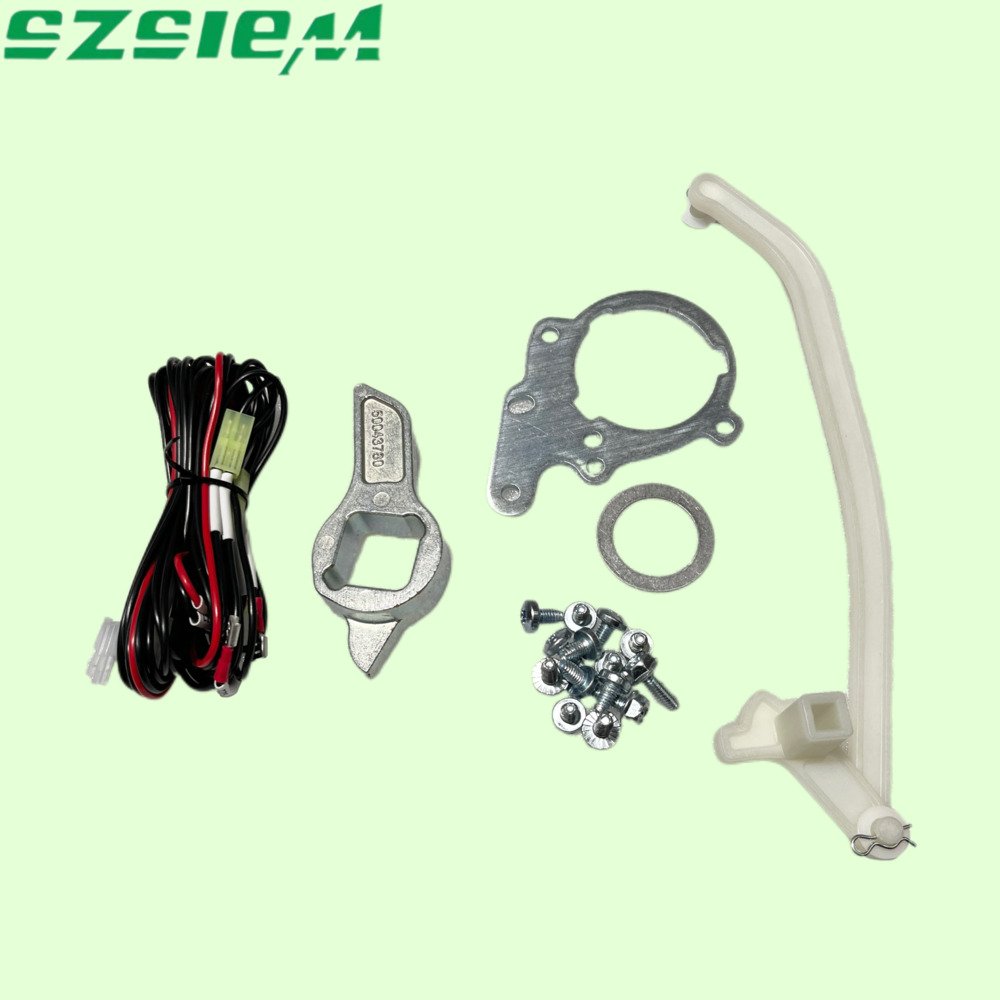

• Auxiliary Components: Status feedback contacts, mounting bracket, secondary wiring cables.
• Original Equipment Compatibility: Specifically designed for Siemens SIMOSEC, 8DA, and other switchgear series, with fully matched mechanical/electrical interfaces;
• Intelligent Control: Integrated RS485 communication, stall protection, and EMC design, supporting remote/local operation switching;

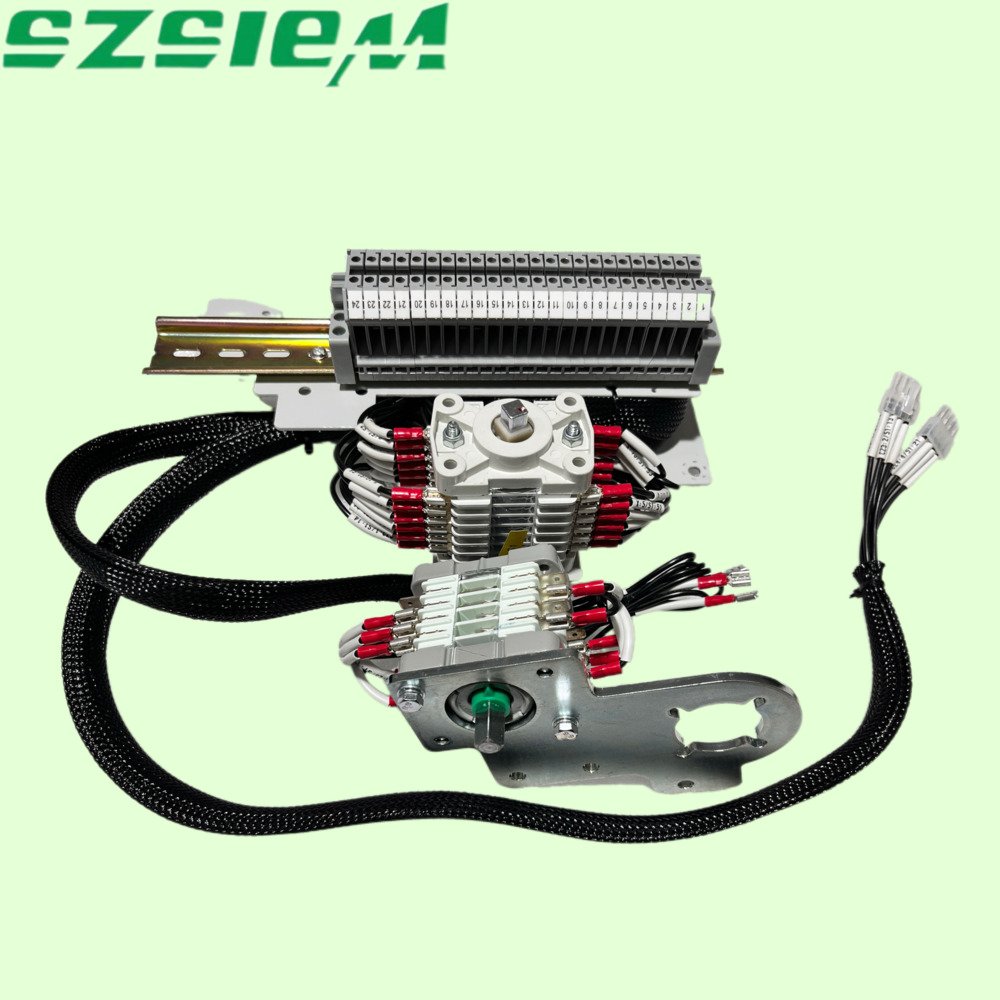

• Convenient Wiring: Pre-configured plug-in wiring units simplify secondary circuit connections and adapt to distribution automation systems.
• Switch Actuation: Enables motorized closing/opening of load switches and grounding switches;
• Status Feedback: Outputs remote signaling for switch status (open/closed), coil energization, etc.;
• Safety Interlocking: Interfaces with switchgear anti-misoperation logic to prevent errors (e.g., grounding switch operation prohibited during circuit breaker closing).
| Parameter Category | Specification Range |
|---|---|
| Driving Power Supply | DC24V/DC48V |
| Control Signal Interface | Terminal block (compatible with secondary circuit) |
| Output Torque | Meets the switching requirements of medium-voltage switches |
| Protection Rating | IP30 (for internal cabinet installation) |
| Applicable Equipment | 10kV/35kV medium-voltage switchgear |
• Medium-voltage switchgear integration: Serves as the electric control unit for switchgear, enabling automatic/remote switching operations;
• Distribution automation retrofits: Enhances the intelligence of distribution systems by retrofitting traditional manual switchgear with this mechanism;
• Switchgear maintenance spare parts: Used for repairing and replacing electric operating mechanisms in existing switchgear.
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
