7S-R6S-B DC24V operating mechanism, 1:1 replacement for Schneider RM6-S B cabinet RMU, IEC & CE certified, stable DC24V drive for load switch & earthing switch automation, contact us for bulk order quotation & customization.
Our operating mechanism keeps identical mounting size, driving shaft structure and internal control logic matching standard Schneider RM6-S B cabinet. No cabinet cutting, hole modification or secondary wiring adjustment is needed during installation, realizing quick direct replacement and cutting overall renovation cost up to 60% compared with purchasing original Schneider spare parts.

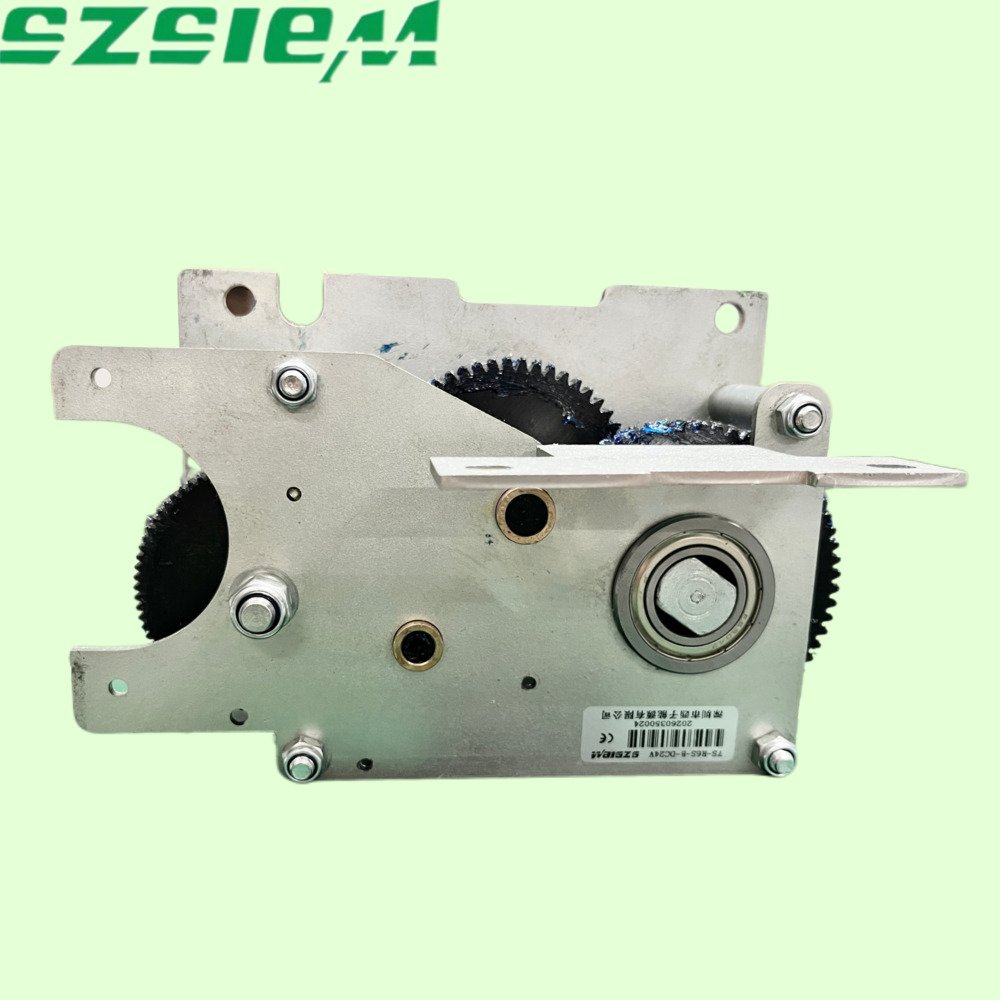

Adopting multi-stage precision gear transmission structure with long-life industrial lubricant, the unit outputs stable torque for frequent opening & closing operation. The whole shell is made of anti-corrosion aluminum alloy, adapting to humid, dusty outdoor substation and industrial power station harsh environment, reducing later maintenance frequency and unexpected power outage risks for power distribution system.

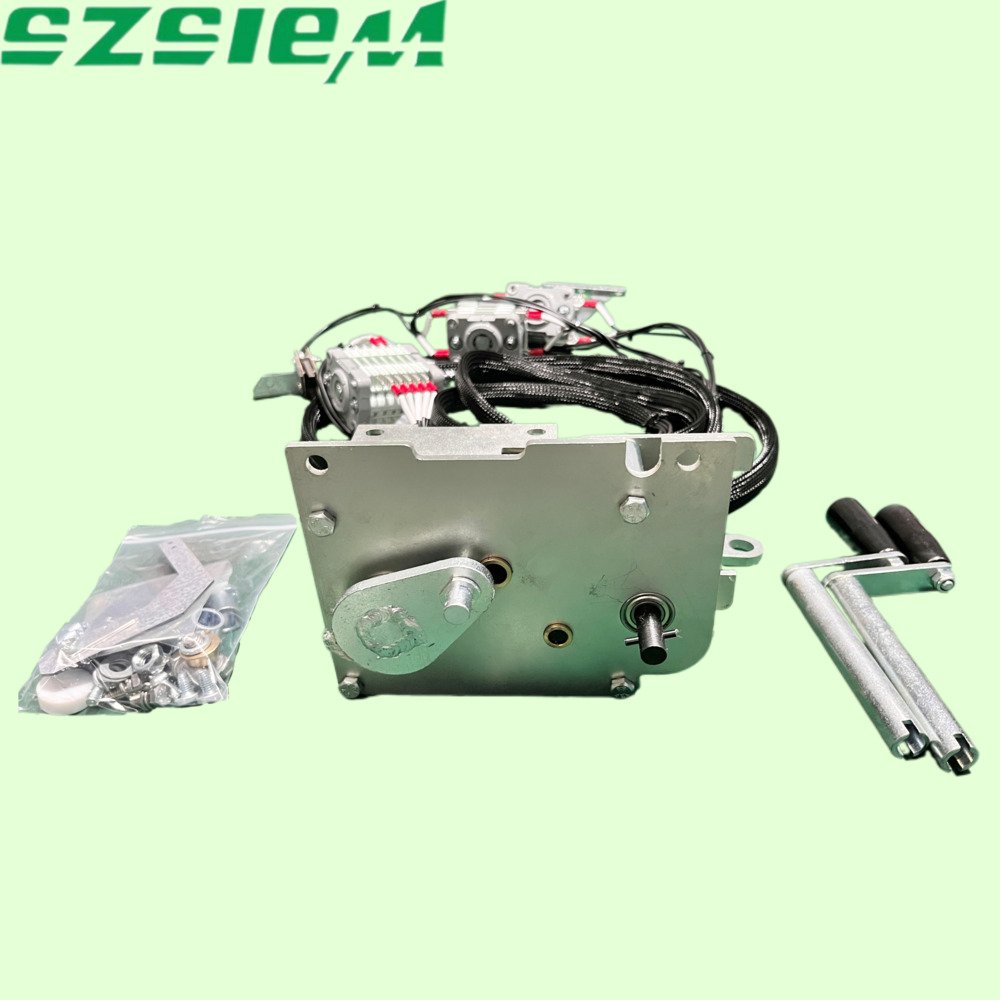

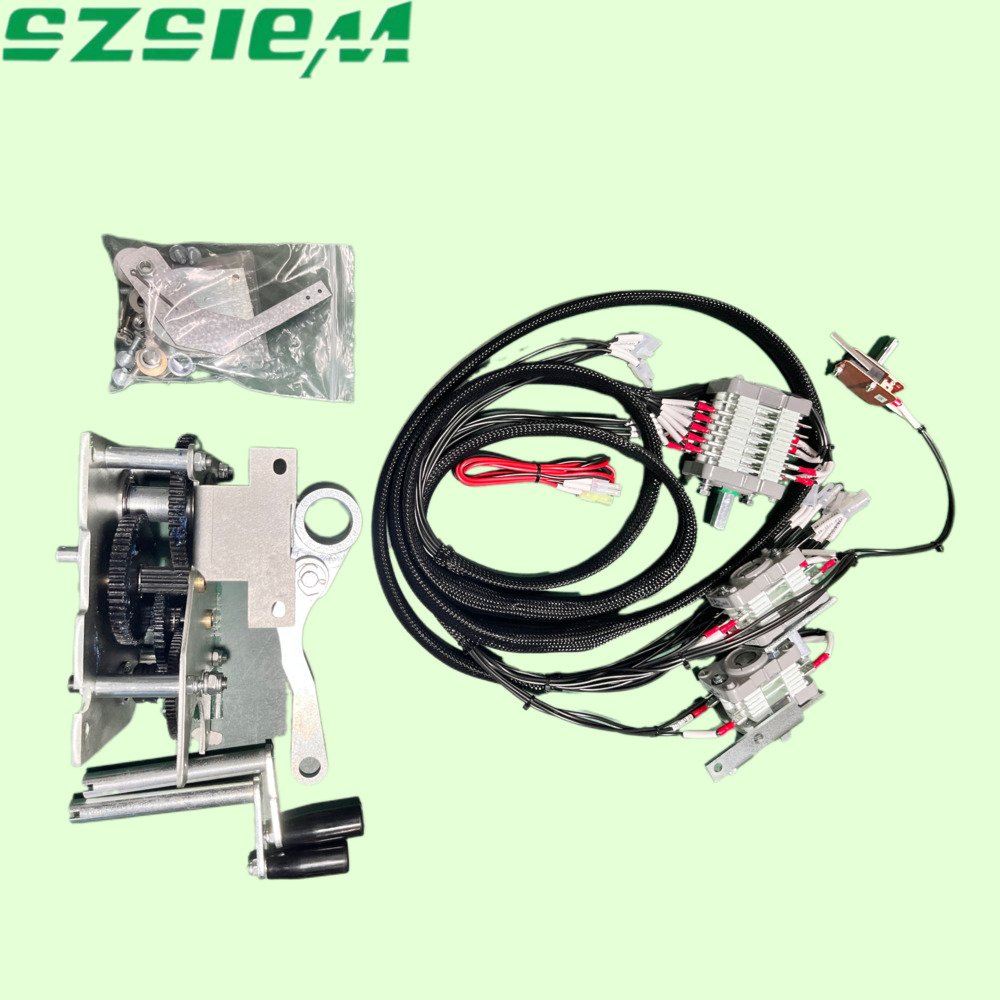

Each set is equipped with pre-terminated control cable matched with Schneider wiring terminals, position feedback auxiliary switches, emergency manual operating handle and full set of installation fasteners. One single electrician can finish whole installation and debugging within short time to shorten power cut construction period for power grid upgrading projects.
The product passes CE certification and complies with IEC 62271-106 international standard. Standard DC24V control power is consistent with original RM6-S design, seamlessly docking with site SCADA remote control and distribution automation system, widely applicable for global projects covering Europe, Russia, Southeast Asia and Middle East.
| Parameter | Specification |
|---|---|
| Model | 7S-R6S-B-DC24V |
| Applicable Equipment | Schneider RM6-S Ring Main Unit B Cabinet |
| Control Working Voltage | DC 24V |
| Usage | Automatic operation for load break switch & earthing switch |
| Operation Mode | Motor-driven automatic + emergency manual operation |
| Shell Material | Anti-corrosion aluminum alloy |
| Certification | CE, IEC 62271-106 Approved |
| Attached Parts | Auxiliary switch, pre-wired harness, manual handle, installation accessories |
| Installation Way | Direct replacement for original RM6-S factory mechanism |
This mechanism belongs to our RMU switchgear accessories series for medium voltage applications. For more switchgear components, visit our Distribution Switchgear Accessories category. With over 13 years of manufacturing experience, Xizi Energy provides reliable OEM/ODM solutions worldwide.
Besides standard DC24V 7S-R6S-B model, we support flexible OEM & ODM customization service according to client’s special project demands: adjustable driving voltage, customized structural size and extra interlock function development. With over 13 years medium voltage switchgear accessory manufacturing
1. Is the 7S-R6S-B-DC24V mechanism a direct replacement for the original Schneider RM6-S mechanism?
Yes, the 7S-R6S-B-DC24V is designed as a 1:1 drop-in replacement for the original Schneider RM6-S operating mechanism. It matches the exact mounting dimensions, shaft interface, and control logic of RM6-S B cabinets, eliminating the need for cabinet modification during installation.
2. What control voltage does the 7S-R6S-B-DC24V mechanism support?
This operating mechanism operates on DC24V control voltage, fully compliant with the Schneider RMU design specifications. It supports both motorized automatic operation and manual emergency operation for load break and earthing switches.
3. Does the 7S-R6S-B-DC24V mechanism come with all necessary accessories for installation?
Yes, the complete kit includes pre-wired control harnesses with Schneider-compatible connectors, auxiliary switches for position feedback, a manual emergency operation handle, and all mounting hardware required for one-person installation.
4. Is the 7S-R6S-B-DC24V mechanism certified for international use?
The mechanism is fully CE certified to meet international IEC 62271-106 electrical safety standards. It is widely used in projects across Europe, Russia, Southeast Asia, and the Middle East, complying with local power infrastructure requirements.
5. What are the main applications of the 7S-R6S-B-DC24V operating mechanism?
It is ideal for retrofitting aging Schneider RM6-S cabinets, replacing worn-out original mechanisms, new production of RM6-S-compatible RMUs, power distribution substations, and renewable energy grid projects requiring reliable switchgear operation.
6. Does Xizi Energy offer OEM/ODM customization for the 7S-R6S-B-DC24V mechanism?
Yes, we provide comprehensive OEM and ODM services for power switchgear accessories. Our engineering team can adjust specifications or add custom features to meet your specific project requirements, with full technical support throughout the process.
