In medium voltage (MV) power distribution systems, gas-insulated switchgear (GIS) and ring main units (RMU) are foundational equipment for safe, reliable power flow—but they are engineered for distinct operational needs. While modern RMUs often integrate GIS technology, their core design, performance capabilities, and application scenarios differ drastically.

For electrical engineers, project planners, and power industry buyers, understanding the clear distinctions between GIS and RMU is critical to selecting the right MV switchgearhttps://xizienergy.com/what-is-an-mv-switchgear/ solution for specific distribution projects. This guide breaks down their key differences across design principles, core components, performance, and real-world use cases, aligned with global power industry standards.

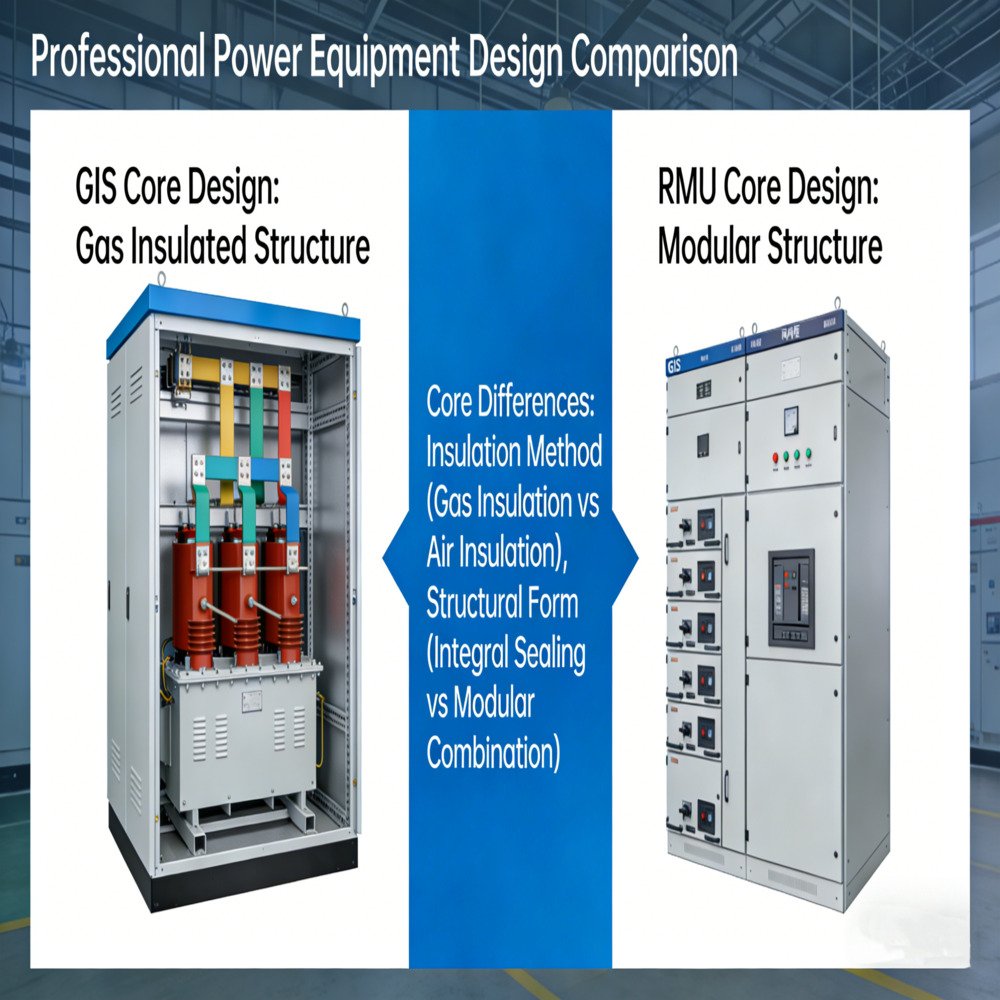

Core Design & Classification Differences

The fundamental divide between GIS and RMU lies in their classification logic and core design intent—one defined by insulation technology, the other by application topology.

1. Ring Main Unit (RMU): Classified by its application for ring network power supply topologies, it is a dedicated secondary distribution equipment built for closed-loop power lines. RMUs feature a modular, steel-plate enclosed structure with standardized components, prioritizing simplicity, easy assembly, and cost-effectiveness for low-to-medium load distribution.

2. Gas-Insulated Switchgear (GIS): Classified by its insulation technology, it uses SF6 (or eco-friendly alternative) gas as the primary insulating and arc-quenching medium. As a next-generation MV switchgear, it is versatile for both primary and secondary distribution, with a compact, gas-sealed structure that eliminates external environmental interference. It integrates advanced mechanisms (permanent magnet/spring-operated circuit breakers) for precise, flexible operation.

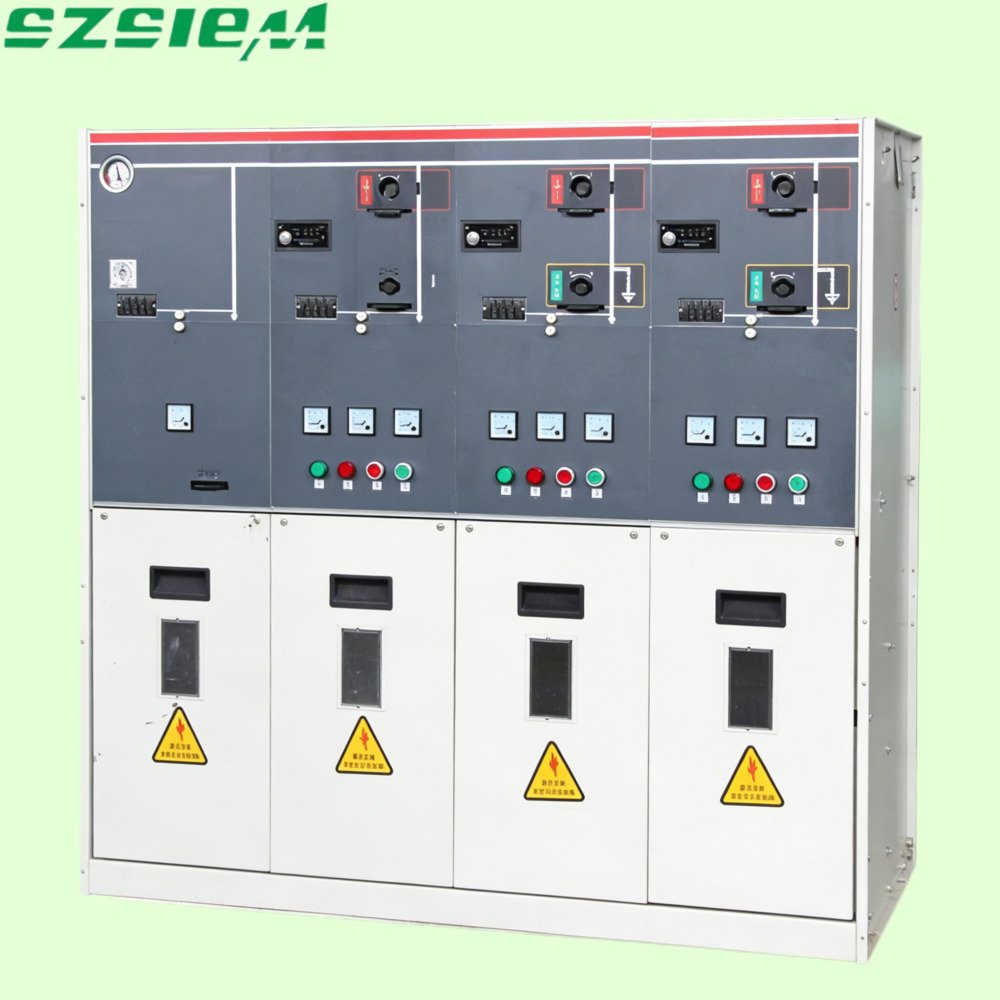

A key overlap: Many modern RMUs leverage internal GIS technology, blending the ring network efficiency of RMU with the compact insulation performance of GIS—creating a hybrid solution for urban distribution needs.

Core Components & Operational Performance

1. RMU Performance: Optimized for low-to-medium loads, RMUs have a rated current capped at 630A. Their protection relies on a load switch-fuse combination: load switches manage normal current operation, while fuses interrupt short-circuit currents—a cost-effective alternative to traditional circuit breakers for non-critical distribution loops. They also integrate standardized earthing switches, instrument transformers, and secondary control modules for easy customization.

2. GIS Performance: Built for high-demand power systems, GIS offers two transformer protection options: the load switch-fuse combination and circuit breakers with relay protection for advanced, automatic fault detection and tripping. It handles higher voltages/currents with superior arc resistance and moisture protection, and supports integrated remote control and monitoring units—a key feature for smart grid compatibility and real-time system oversight, which basic RMU configurations lack.

Key Application Scenario Distinctions

GIS and RMU each excel in specific MV distribution environments, with their performance strengths aligning with unique project requirements (space, load, reliability, topology).

RMU Primary Applications

RMU’s greatest advantage is enhanced power supply reliability in ring network topologies: each distribution loop draws power from two directions, enabling automatic power transfer if one main line fails—achieving dual-power supply efficiency with a single feed source. This makes it the ideal choice for:

• Urban load centers (residential neighborhoods, high-rise buildings, small-to-medium office complexes)
• Light industrial facilities and American-style kiosk substations
• Decentralized distribution points with limited space and budget constraints

https://youtu.be/CeWsrDGV0LU?si=_82Eju5nRUohnBdg

GIS Primary Applications

GIS is the go-to solution for high-performance, space-constrained, or smart grid-enabled MV distribution projects. Its compact gas-insulated design and advanced functionality make it suitable for:

• 10kV high-voltage grid reception and distribution, and distribution switch stations
• Traction power supply systems (railway junctions, marshalling yards, electric locomotive depots)
• Large-section double-track AT traction networks (as auxiliary section posts to minimize outage scope)
• Dense urban substations and heavy industrial plants with strict space and performance requirements

Cost & Lifecycle Value Comparison

The final consideration in GIS vs RMU selection is upfront cost and long-term lifecycle value, balancing project budgets with operational needs:

1. RMU: Lower upfront cost, with standardized components and simplified design reducing manufacturing/installation expenses—perfect for low-to-medium load projects with straightforward ring network requirements and no future scalability needs.

2. GIS: Higher initial investment due to advanced gas insulation, precision mechanisms, and smart monitoring. However, it delivers long-term value through reduced maintenance, superior durability, and compatibility with high-demand/smart grid systems—its lifecycle efficiency often offsets upfront costs for scalable, high-performance projects.

Key Takeaways: GIS vs RMU

GIS and RMU are complementary, not interchangeable, MV switchgear solutions:

1. RMU is a ring network-specialized secondary distribution tool—optimized for cost, simplicity, and dual-directional power flow in urban/light industrial settings.

2. GIS is a versatile, high-performance switchgear—defined by gas insulation, suitable for primary/secondary distribution, and built for high-demand, space-constrained, or smart grid-enabled power systems.

While GIS technology can enhance modern RMUs, the right choice depends on project load demands, power network topology, space constraints, and long-term scalability goals. Aligning these factors with GIS/RMU core strengths ensures a safe, efficient, and cost-effective MV power distribution system.
