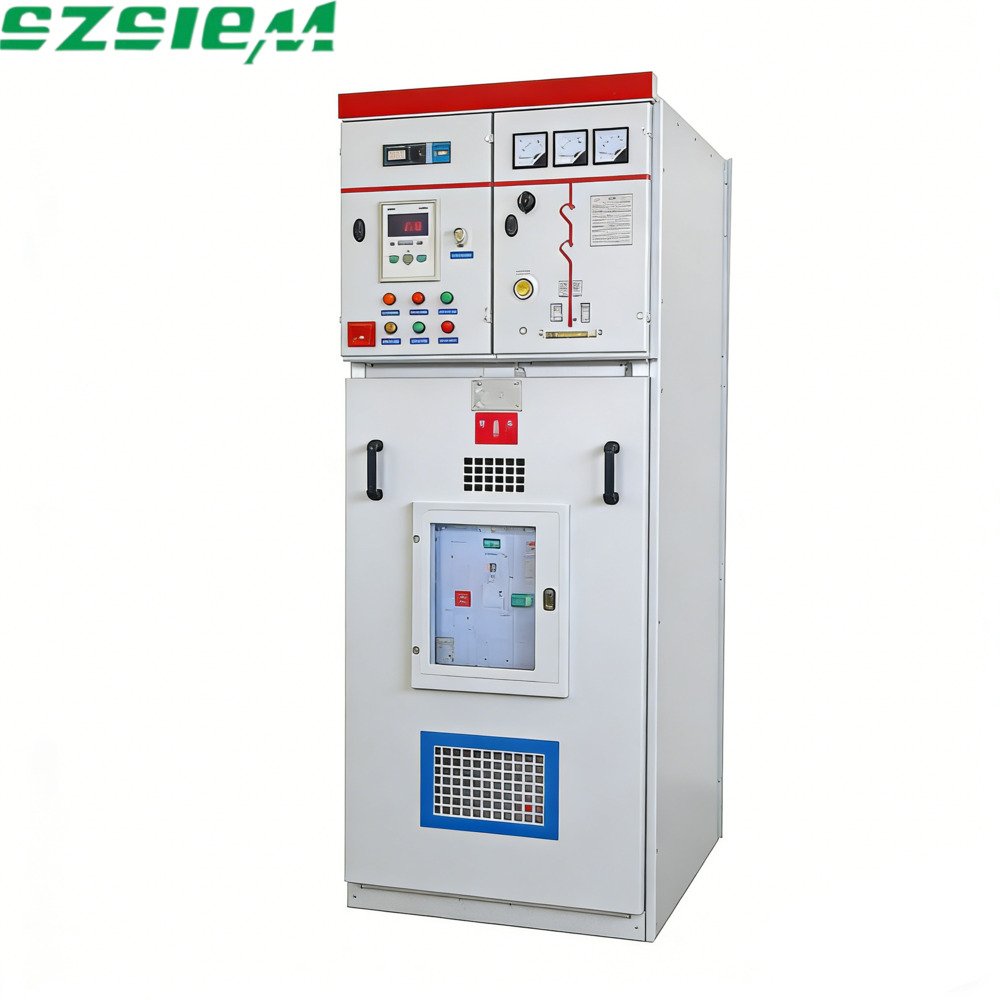

All high-voltage live components are enclosed in a robust metal cabinet, providing reliable insulation and protection against external environmental factors (dust, moisture, mechanical impact), ensuring long-term operational safety.
Equipped with a complete five-anti interlocking device (anti-misoperation), mechanical and electrical interlocks, and arc-flash protection, this 12kV switchgear effectively prevents operational errors, protecting personnel and equipment during installation, operation, and maintenance.
The modular design supports flexible combination of incoming, outgoing, metering, and PT units, compatible with SF6 load switches, vacuum circuit breakers, and other mainstream components, meeting diverse power distribution needs for different projects.
Compared with gas-insulated switchgear (GIS), the XGN15-12 air-insulated switchgear features a simple structure, easy access to internal components, and low maintenance costs, making it a budget-friendly choice for projects with sufficient installation space.
Made of high-quality cold-rolled steel with anti-corrosion treatment, the cabinet has a protection class of IP4X, suitable for indoor power distribution rooms, industrial workshops, and commercial buildings, with a service life of over 30 years.
Fully compliant with IEC 62271-200, ANSI, and other global electrical standards, the XGN15-12 switchgear is certified for export to Europe, Southeast Asia, Russia, and other regions, meeting the requirements of international power projects.
| Parameter | Specification |
|---|---|
| Model | XGN15-12 |
| Rated Voltage | 12kV (10kV) |
| Rated Current | 630A / 1250A (Customizable) |
| Rated Frequency | 50Hz / 60Hz |
| Insulation Medium | Air (AIS) |
| Protection Class | IP4X (Cabinet), IP2X (Internal) |
| Standard Compliance | IEC 62271-200, GB/T 11022 |
| Operating Temperature | -25℃ ~ +40℃ |
| Installation Type | Fixed, Indoor |
