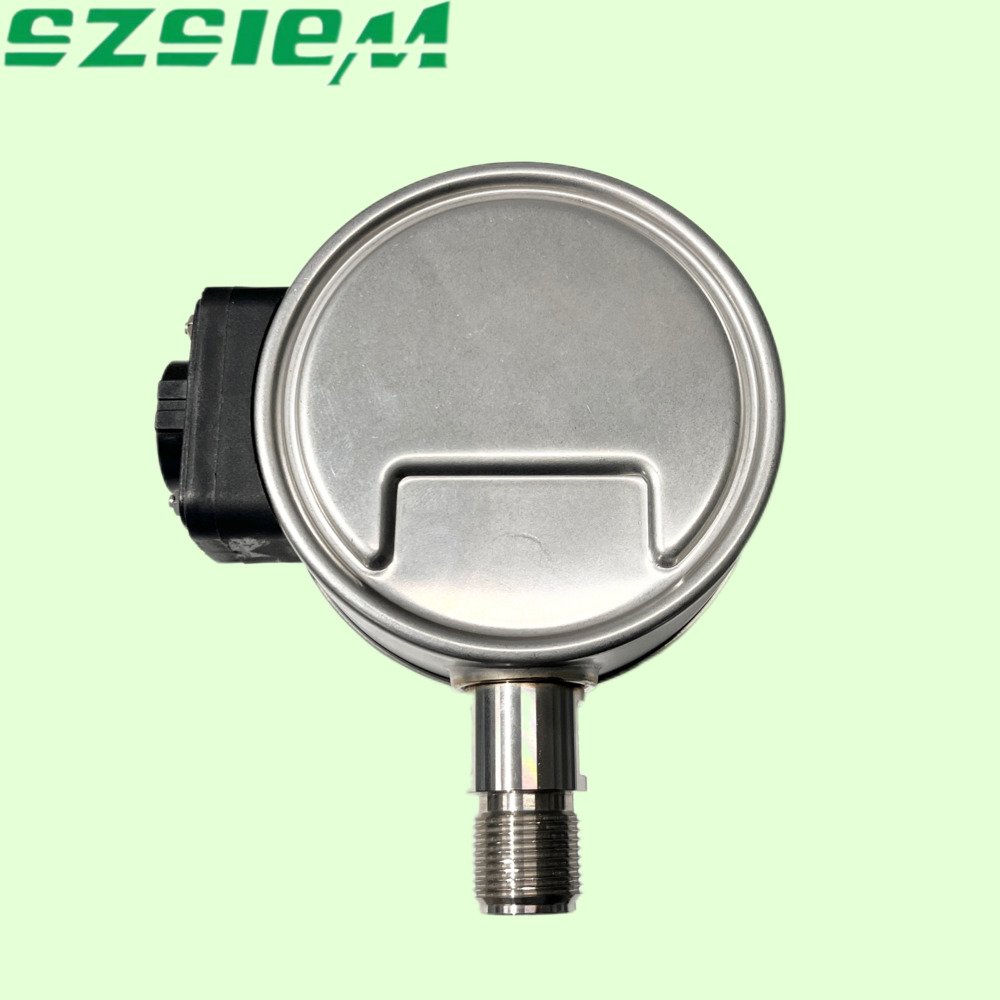

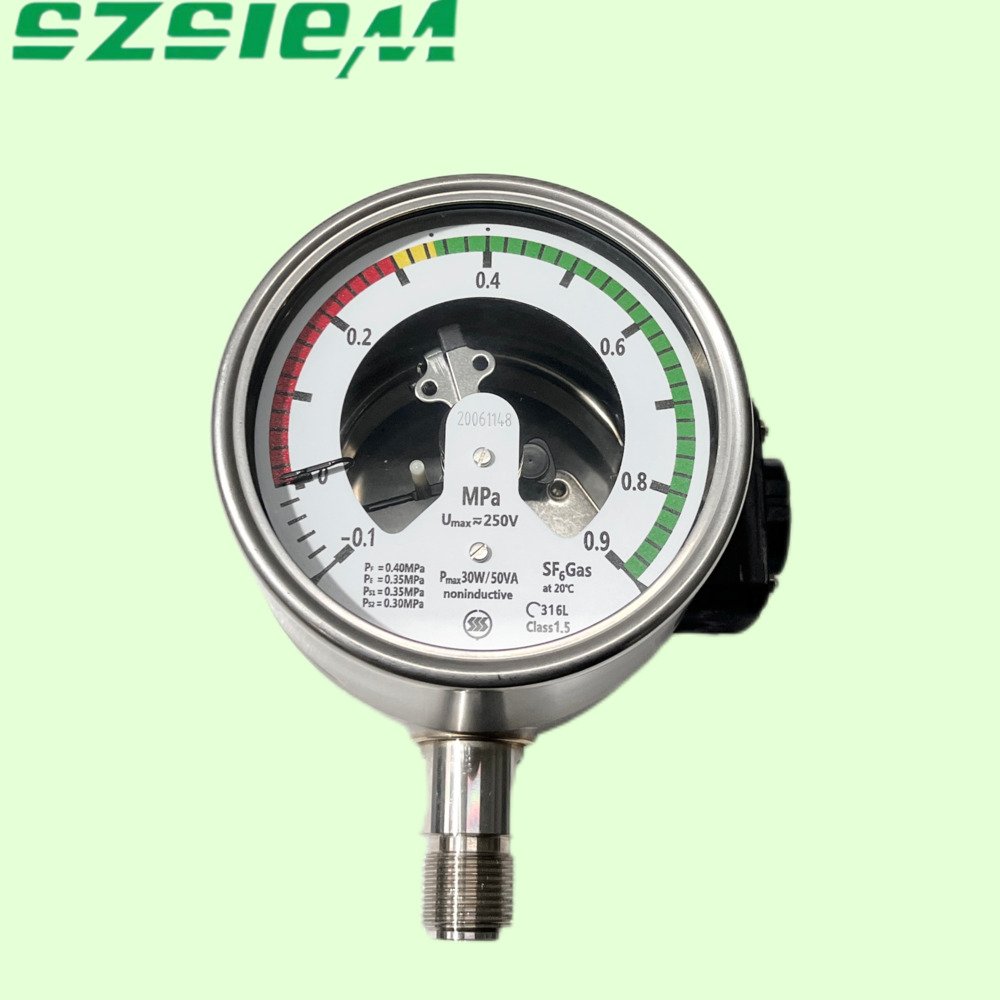

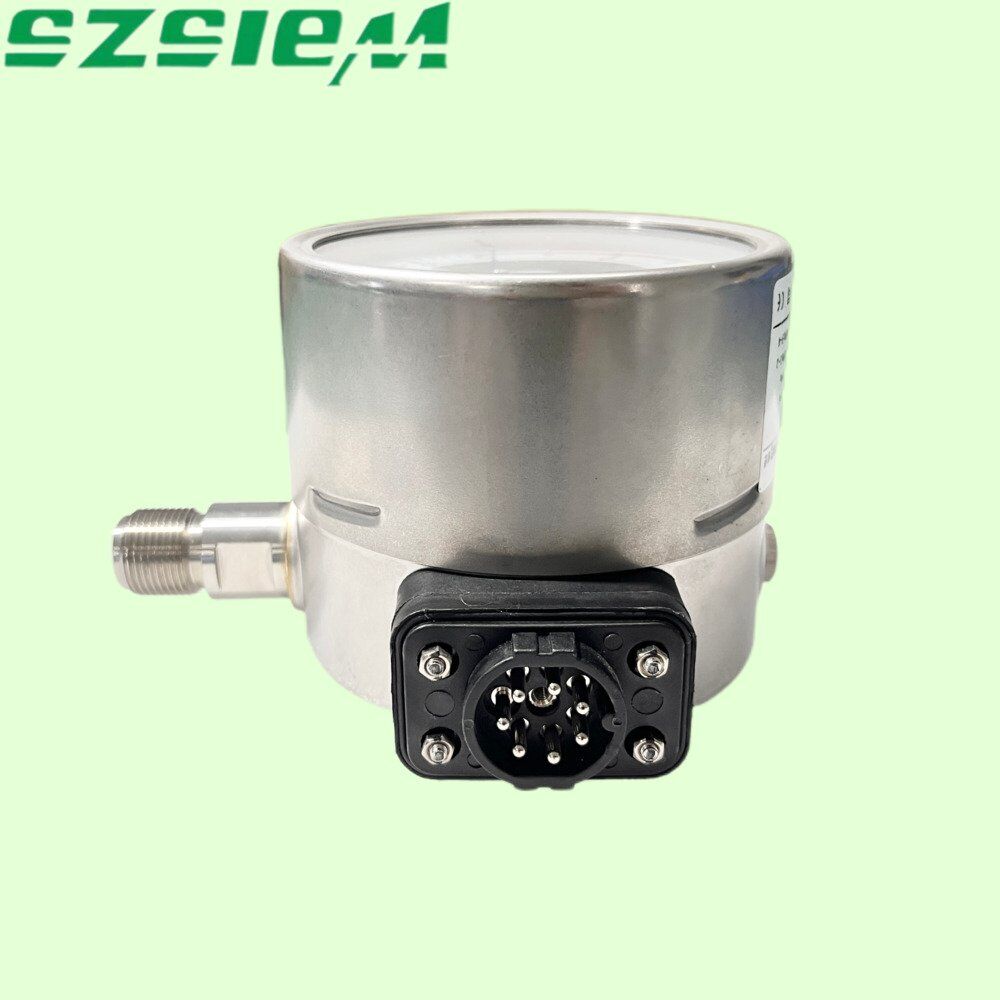

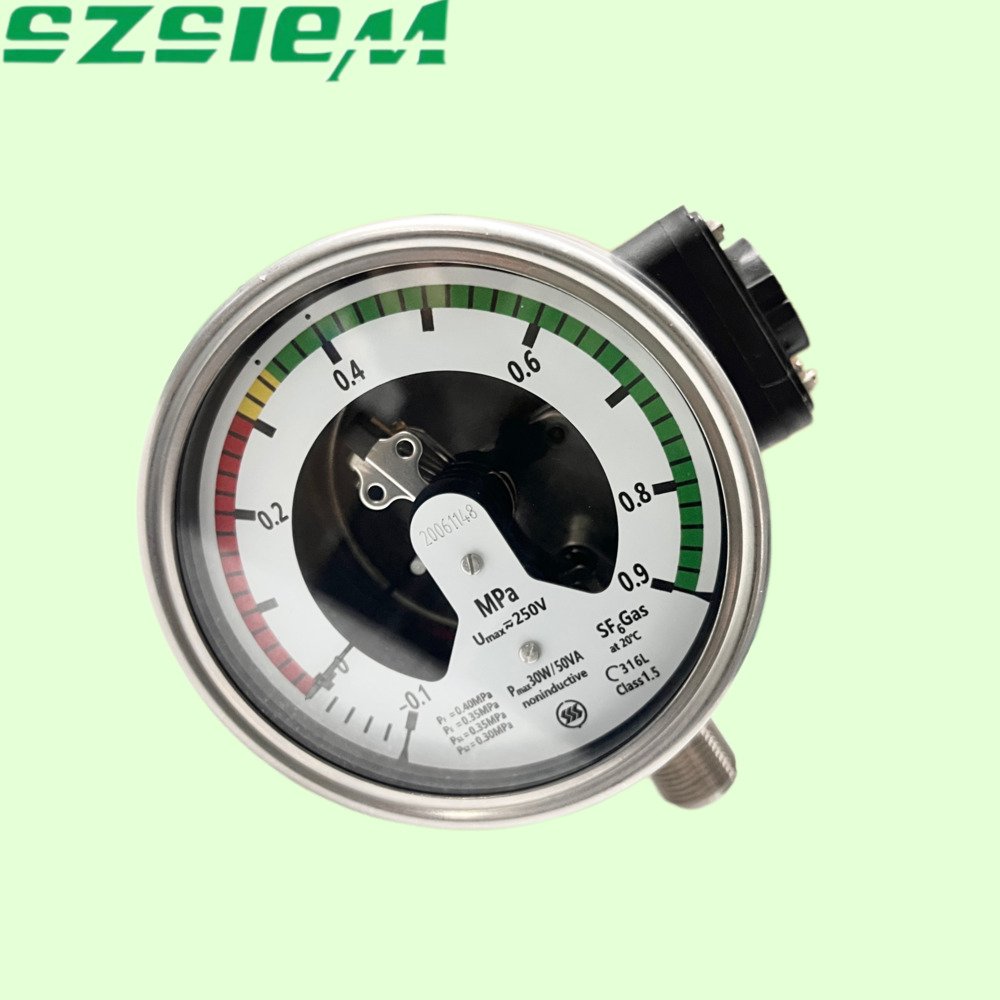

SF6 Gas Density Relay (Shock-Resistant Oil-Filled Type) achieves shock and impact resistance through silicone oil filling. Equipped with temperature compensation, it accurately monitors gas density within SF6 insulated equipment (displayed at standard pressure and 20°C).
Composition:
Consists of a pressure-sensing element, temperature compensation unit, transmission mechanism, magnetically assisted electrical contacts, oil-filled case (silicone oil), and terminal box. Some models incorporate an integrated intelligent monitoring module.
Features:
– All-stainless steel housing + silicone oil filling design for shock and impact resistance (20m/s² shock, 300m/s² impact resistance), waterproof and corrosion-resistant (IP65 protection rating);
Incorporates temperature compensation, ensuring readings remain unaffected by ambient temperature (standard pressure display at 20°C);
Multiple sets of electrical contacts (up to 3-4 sets) enable signal outputs such as alarms and interlocks;
Select models support intelligent remote transmission (RS485/4-20mA) and are compatible with power communication protocols.
| Technical Parameter | Specification |
| Measuring Range | -0.1~0.9 MPa |
| Accuracy Class | Class 1.5 |
| Temperature Compensation Range | -40C~+60C(referencedto20C) |
| Vibration Resistance | 20 m/s2(complies with GB/T 15242) |
| Shock Resistance | 300 m/s2(complies with GB/T 15242) |
| Contact Capacity | AC/DC 250V, 30VA/W |
| Protection Class | IP65(enclosure) |
| Leakage Rate | ≤10-9 Pa.m2/s |
| Filling Medium | Silicone oil (low-temperature resistant, anti-aging) |
| Operating Environment Humidity | ≤95% RH (no condensation) |
Primarily used for SF6-insulated high-voltage electrical equipment:
• High-voltage circuit breakers, GIS (Gas Insulated Switchgear);
• Instrument transformers, surge arresters, disconnect switches;
• SF6 gas condition monitoring for outdoor/indoor high-voltage equipment in substations, converter stations, etc.
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
