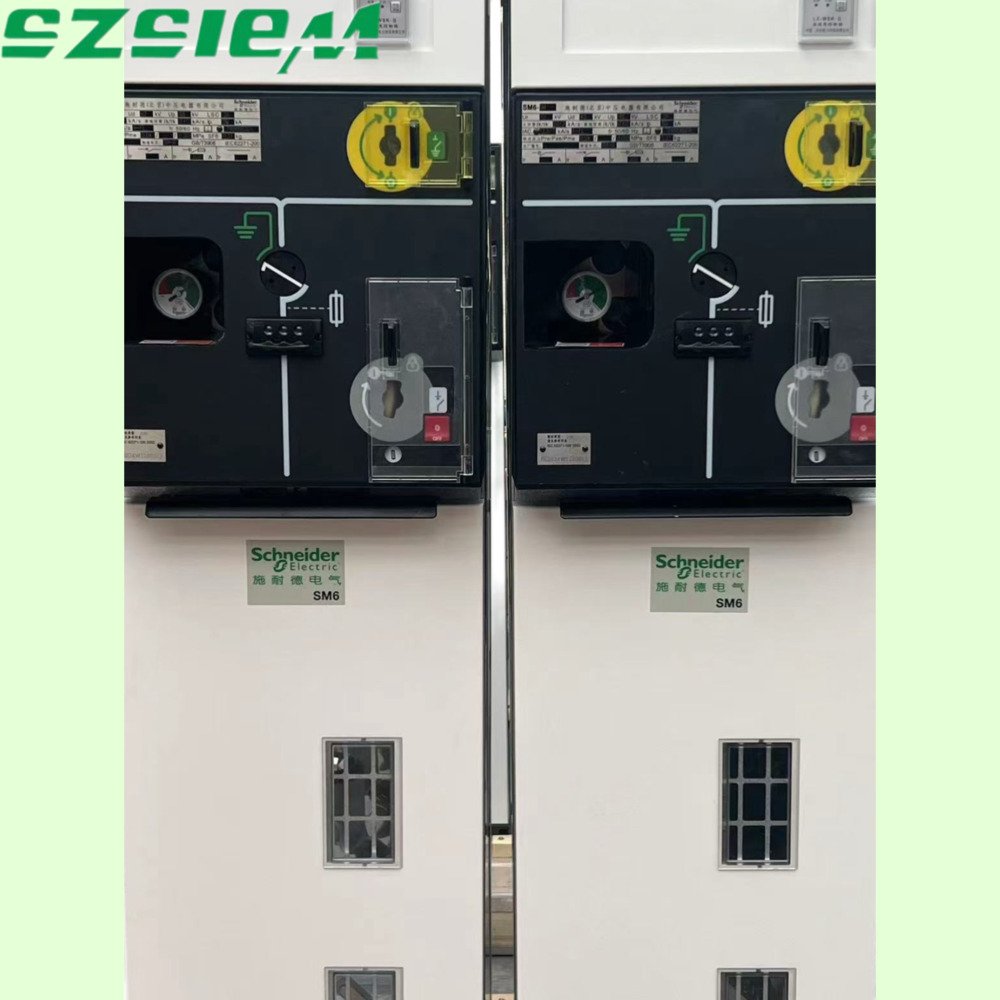

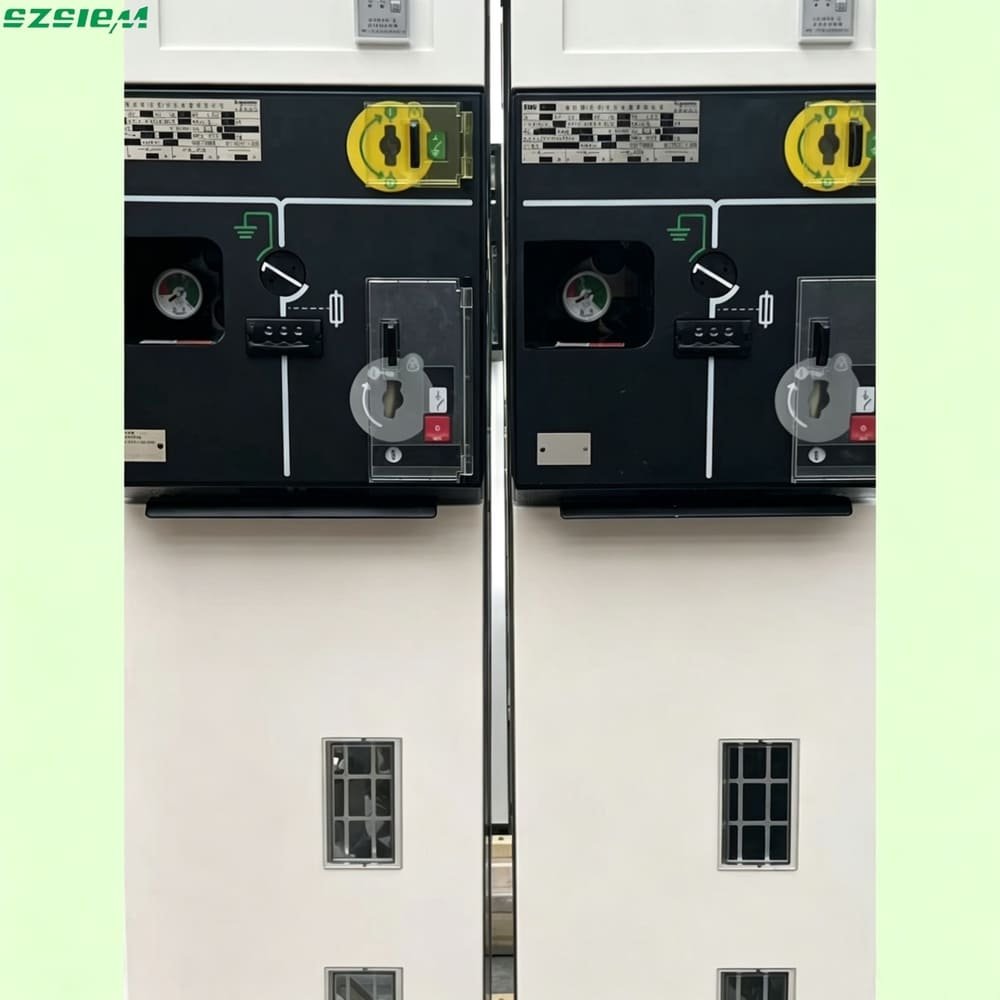

The 7S-SM6-KGG-S SCHNEIDER ELECTRIC MEDIUM-VOLTAGE SWICHGEAR COMPLETE SET is a medium-voltage air-insulated switchgear designed around the core principles of “safety, flexibility, and reliability.”
• Operating Module: Includes status selector knob, emergency trip button, and status indicator (live/open status);
• Insulation Module: Sealed enclosure utilizing SF₆ gas as insulating medium, integrated with Schneider vacuum circuit breaker;
• Control Module: Equipped with circuit status diagram and signal interfaces, supporting status feedback and communication.
• Gas-Insulated Design: Utilizes SF₆ gas insulation for compact size and immunity to environmental factors (humidity, dust);
• Brand Reliability: Schneider SM6 series is a proven medium-voltage product with mechanical/electrical lifetimes meeting industrial standards;
• Safety Design: Incorporates operational interlocks and emergency trip functions to minimize operational errors.
• Power Distribution: Enables electrical energy distribution and state switching for medium-voltage circuits;
• Fault Protection: Rapidly interrupts short-circuit and overload currents to safeguard power grids and loads;
• Status Monitoring: Provides intuitive feedback on energized status and switch positions to support operations and maintenance.
| Parameter Category | Specification Range |
|---|---|
| Rated Voltage | 10kV/20kV |
| Rated Current | 630A~1250A |
| Short-Circuit Breaking Current | 25kA~31.5kA (at rated voltage) |
| Insulation Medium | SF₆ gas |
| Mechanical Life | ≥10,000 switching cycles (opening/closing) |
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
