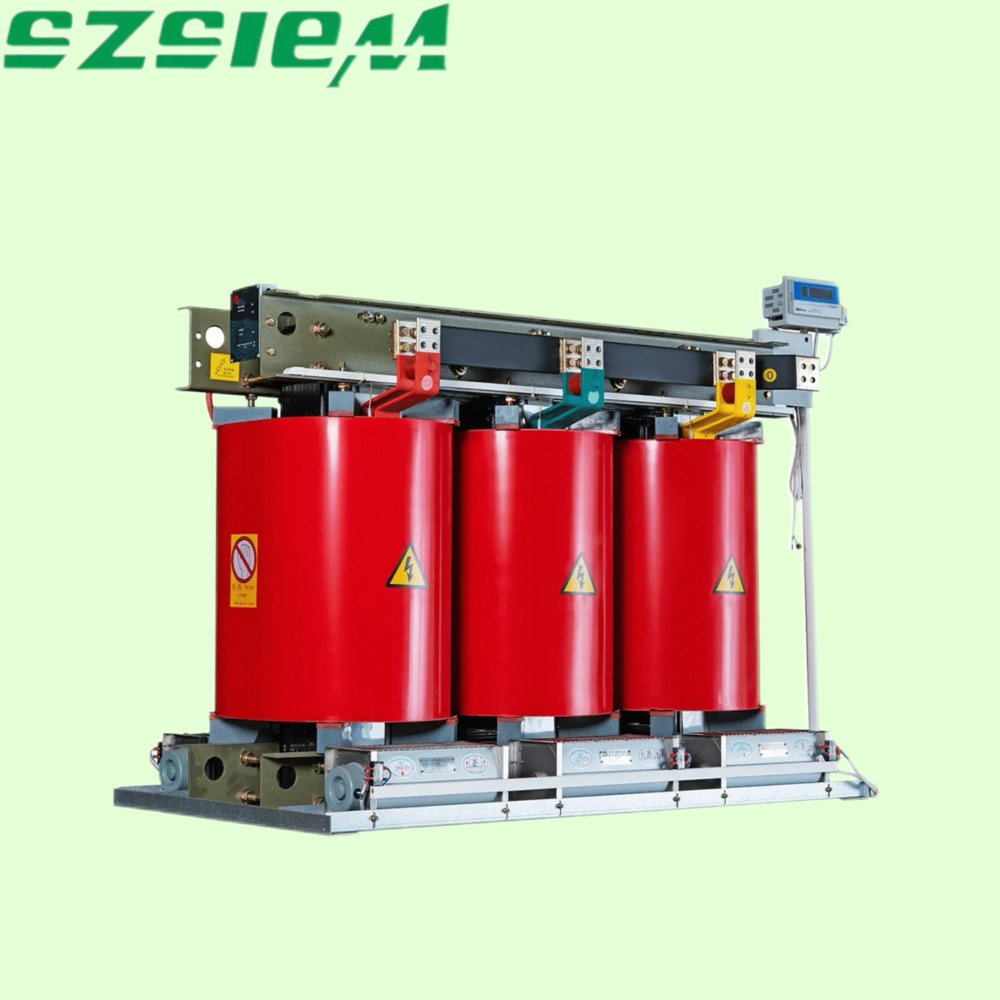

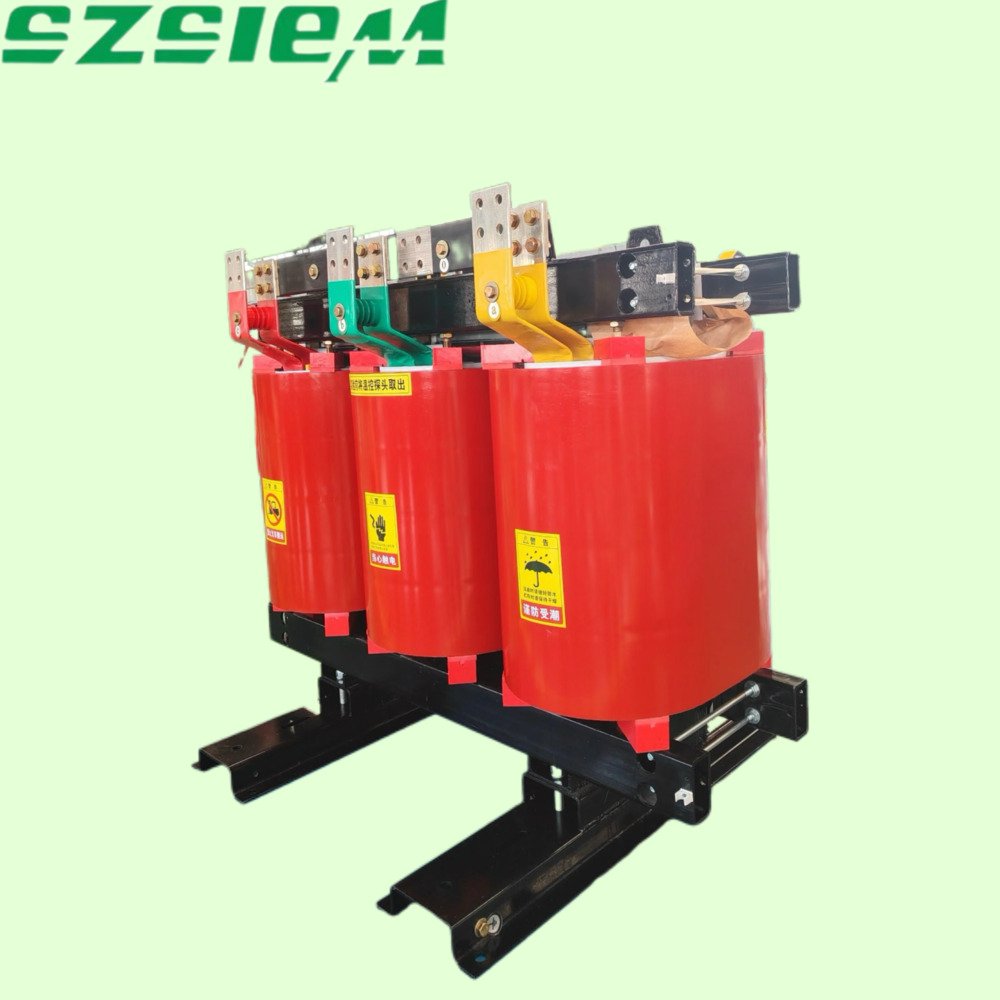

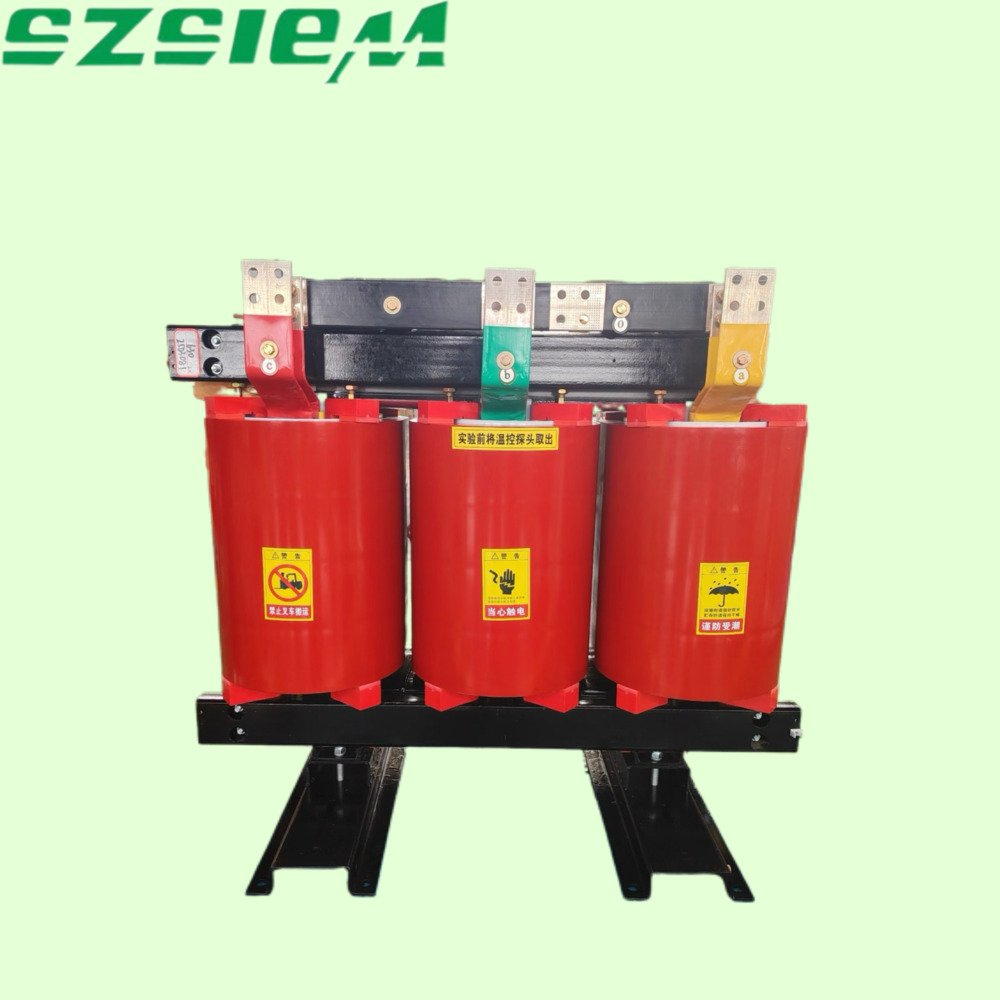

The SCB series are three-phase dry-type transformers fabricated using epoxy resin vacuum casting technology.
This series represents the mainstream product in dry-type transformers, featuring mature technology, high reliability, and wide application.
It is particularly suitable for power distribution areas with high requirements for safety, environmental protection, and reliability.
• Vacuum casting with epoxy resin: The entire coil is cast and molded, providing high insulation strength, moisture-proof, dust-proof, and corrosion-proof properties.
• High fire resistance level: Flame-retardant and self-extinguishing, non-flammable, meeting the F1 level of fire resistance standards.
• Maintenance-free operation: Oil-free design, no risk of oil leakage, basically maintenance-free.
• Foil-type windings (Type B): The low-voltage windings are made by winding copper or aluminum foil. They have strong anti-short-circuit capability and good heat dissipation performance.
• High mechanical strength: The casting body has high mechanical strength and can withstand the impact of short-circuit electric force.
• Low temperature rise design: The heat dissipation structure is optimized, resulting in uniform temperature rise and long thermal life.
•Low Noise: Optimized magnetic circuit design results in noise levels 10-15 dB lower than the national standard.
•High Overload Capacity: Allows for short-term overload operation (e.g., 150% load for 2 hours).
•Strong Environmental Adaptability: Protection level can reach IP20-IP54, suitable for humid and contaminated environments.
| Parameter Category | Technical Specifications |
|---|---|
| Rated Capacity | 30-1600kVA (typical capacity range) |
| Rated Voltage | High Voltage Side: 10kV, 10.5kV, 11kV Low Voltage Side: 0.4kV |
| No-Load Loss | 60-70% lower than S11 Example: 130W for 315kVA (450W for S11) |
| Load Loss | Comparable to or slightly better than S11 Example: 3600W for 315kVA |
| No-Load Current | 0.3-0.5% (significantly lower than S11) |
| Impedance Voltage | 4.0-4.5% |
| Insulation Class | Class A (105℃) |
| Temperature Rise Limit | Winding: 60K, Top Oil: 50K |
| Noise Level | ≤45-50dB(A) (measured at 0.3m distance) |
| Connection Symbol | Dyn11, Yyn0 |
| Protection Rating | IP54 (outdoor type) |
| Energy Efficiency Class | Complies with GB 20052 Grade 1 Energy Efficiency Standard |
