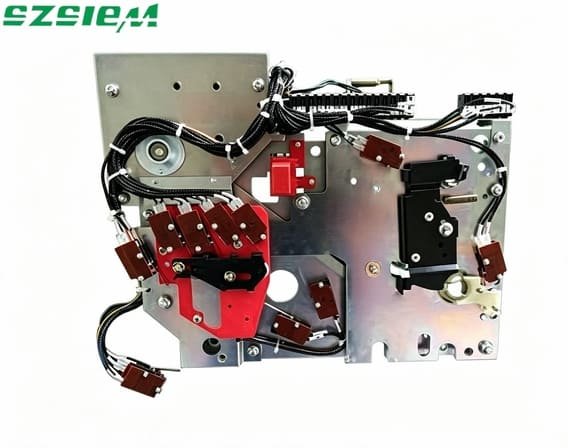

RM6 Q Unit Electric Operating Mechanism Overview
The Q unit is a core functional compartment of RM6 ring main units, specially applied to transformer feeder circuits and equipped with fuse-switch combined devices. Its mechanical structure and auxiliary signal collection requirements are significantly different from D-unit breaker cells and I-unit incoming cells, making targeted customized operating mechanisms essential.
Our RM6 Q unit electric operating mechanism is developed for mainstream compatible Q-unit configurations. It adapts to the conventional mechanical operating interface of fuse-switch units and can be equipped with matching auxiliary detection modules according to customer project needs, including switch position feedback and optional fuse-trip striker detection interfaces.
Core Product Configuration
-
Complete pre-assembled control wiring harness and standard terminal connection block, reducing on-site secondary wiring workload
-
High-precision auxiliary microswitches for real-time operating position signal feedback
-
Optional fuse-trip and striker detection interfaces for transformer protection monitoring scenarios
-
Standard mechanical interlocking features to regulate operating sequences and avoid misoperation risks
-
Reserved manual override structure for emergency operation when motor power supply fails
-
Stable motor drive transmission assembly to ensure smooth remote electric switching
Note: The specific microswitch combination, terminal definition and mechanical interface shall be subject to the actual on-site equipment configuration to ensure accurate matching.
RM6 Motorized Operating Mechanism for RMU Automation
Most traditional RM6 Q units adopt manual operating modes, which cannot adapt to unattended substations and intelligent distribution network construction. Upgrading with an RM6 motorization kit can convert manual switchgear into remotely controllable intelligent equipment, effectively improving grid operation efficiency and reducing manual maintenance costs.
This RM6 motorized operating mechanism supports diversified functional configurations to meet different automation project demands:
-
Remote electric closing and opening via upper computer control system
-
Local manual emergency operation for power failure and maintenance scenarios
-
Real-time switch position auxiliary signal feedback
-
Seamless integration with RTU, DTU, SCADA and other distribution automation control circuits
-
Matching mechanical interlocking design to standard operating logic
All products undergo factory mechanical operation debugging and circuit continuity testing before delivery. For key grid projects, on-site commissioning is recommended to verify operating torque, travel stroke, interlocking sequence and auxiliary circuit compatibility with the actual RMU equipment.
Professional RM6 Operating Mechanism Replacement Solution
In the daily operation of medium-voltage ring main units, aging, damage and failure of manual operating mechanisms are common faults. When carrying out equipment replacement and renovation, it is insufficient to select accessories only by model name. On-site equipment differences in functional units, mechanism versions, control voltage and auxiliary interfaces must be fully considered.
Our aftermarket RM6 electric mechanism replacement solution is tailored for compatible equipment, focusing on mechanical and electrical interface matching to ensure stable and safe operation after replacement.
Key Compatibility Verification Points
1. Functional Unit Confirmation: Verify that the on-site compartment is a Q-unit fuse-switch functional cell, not D-unit or I-unit structure
2. Mechanical Mounting Matching: Check mounting hole position, drive shaft specification, operating direction and transmission connection mode
3. Control Circuit Parameter: Confirm the motor working power supply and auxiliary control voltage of the automation system
4. Auxiliary Signal Demand: Clarify switch position feedback and fuse trip signal collection requirements
5. Interlocking Logic: Match the mechanical interlocking sequence of the original equipment
6. Automation Interface: Confirm the matching standard of upper computer control equipment such as DTU and SCADA
To ensure 100% compatibility, customers are recommended to provide on-site mechanism photos, equipment nameplate information and terminal wiring photos for professional engineering evaluation before quotation and production.
RM6 Motorization Kit | Integrated & Easy Retrofit
Different from scattered loose accessories, our RM6 motorization kit adopts integrated assembly delivery, integrating all core functional components required for mechanism upgrading. It simplifies procurement procedures, unifies product quality standards, and greatly reduces on-site assembly and debugging difficulty.
Full Kit Standard Configuration
-
High-performance drive motor and fixed mounting components
-
Precision mechanical transmission and interlocking components
-
Multi-group auxiliary microswitch signal acquisition module
-
Complete pre-wired control harness and dedicated terminal block
-
Standard manual operating interface and emergency operating components
Quotation Required Information
To provide accurate matching products, please provide the following project information:
-
On-site RMU functional unit type and rated voltage level (12kV/24kV)
-
Required motor control voltage specification
-
Photos of the original mechanism, mounting position and terminal wiring
-
Remote control and signal feedback functional requirements
Important Reminder: The RMU rated insulation voltage is independent of the mechanism control voltage. A 24kV ring main unit does not correspond to a 24V control power supply, and the two parameters need to be confirmed separately.
12kv & 24kv RM6-Compatible Operating Mechanism
This product family supports customized configuration for mainstream 12kV RM6 and 24kV RM6 ring main unit applications, covering most conventional civil and industrial distribution network renovation scenarios.
It is necessary to distinguish the two core voltage parameters clearly: the RMU 12kV/24kV refers to the equipment insulation and rated working voltage, while the mechanism control voltage refers to the power supply voltage of the motor and control circuit. The two parameters do not correspond to each other and need to be confirmed separately according to project design standards.
Diversified RM6 Operating Mechanism Crotrol Voltage Options
Different substation and automation systems have different auxiliary power supply standards. We provide multiple control voltage configurations to adapt to various on-site working conditions:
24V DC Operating Machanism
Suitable for small and medium-sized distribution stations and automation systems with 24V DC control power supply.
48V DC Operating Mechanism
Widely used in municipal power distribution and conventional industrial power supply systems with 48V DC power supply standards.
110V DC Operating Mechanism
Adapt to large substations and professional power grid projects with 110V DC control power supply.
220V AC/DC Operating Mechanism
Customized for special engineering scenarios requiring high-voltage auxiliary power supply.
Note: The control voltage must be confirmed before production and delivery, and non-standard voltage specifications can be negotiated for bulk orders.
RM6 Operating Mechanism Selection & Replacement Guide
Standardized selection process is the key to ensure successful mechanism replacement and upgrading. We have sorted out a complete set of selection verification processes for customer reference:
1. Confirm Unit Type: Strictly confirm that the on-site equipment is RM6 Q-unit fuse-switch configuration
2. Check Original Mechanism: Record the original mechanism structure and identification information
3. Verify Mechanical Interface: Confirm mounting hole size, shaft position and operating direction
4. Determine Control Voltage: Clarify the motor power supply specification of the automation system
5. Sort Out Signal Requirements: Confirm switch position and fuse trip signal feedback functions
6. Confirm Automation Matching: Verify the compatibility of RTU/DTU/SCADA interface protocols
7. Provide On-site Materials: Submit equipment nameplate, mechanism and wiring photos for engineering verification
Our team adopts the standardized process of Configuration Confirmation → Mechanical Interface Verification → Electrical Parameter Matching → Signal Scheme Confirmation → Factory Testing to effectively reduce on-site installation and matching risks.
Technical Specifications
|
Item
|
Specification
|
|
Product Type
|
Electric / Motorized Operating Mechanism (Aftermarket Replacement)
|
|
Applicable Scene
|
Compatible with RM6 Q-unit fuse-switch compartment
|
|
Applicable RMU Voltage
|
12kV / 24kV SF6 Ring Main Unit
|
|
Operating Mode
|
Remote electric operation + manual emergency override
|
|
Optional Control Voltage
|
DC24V, DC48V, DC110V, AC/DC220V
|
|
Signal Configuration
|
Position feedback microswitches, optional fuse-trip detection
|
|
Wiring Form
|
Pre-assembled integrated wiring harness
|
|
Safety Design
|
Standard mechanical interlocking features
|
|
Delivery State
|
Fully pre-assembled, ready for installation
|
|
Typical Application
|
RMU motorization upgrade, equipment maintenance replacement, smart grid retrofit
|
Note: All parameters and interfaces shall be subject to on-site equipment configuration and customized scheme.
Frequently Asked Questions
What Is an RM6 electric operating mechanism?
An RM6 electric operating mechanism is a motorized drive assembly for compatible RM6 ring main units. It upgrades manual switchgear to support remote electric operation and status signal feedback, which is widely used in smart distribution network renovation and equipment replacement projects.
Can an RM6 Q unit be motorized?
Yes. Compatible RM6 Q unit fuse-switch compartments can be upgraded with a matched RM6 Q unit motorized mechanism. Due to the structural differences of different batches of equipment, mechanical and electrical interfaces need to be verified before upgrading.
How do I replace an RM6 operating mechanism?
Complete compatibility verification of unit type, mechanical mounting, control voltage and auxiliary signals first. Replacement construction must be operated by qualified medium-voltage electricians in accordance with power safety isolation specifications.
What control voltage options are available?
We provide DC24V, DC48V, DC110V and AC/DC220V multiple configurations to adapt to different substation control power supply standards.
Can this mechanism support SCADA remote control?
Yes. The mechanism outputs standard dry contact status signals, which can be connected with DTU, RTU and SCADA systems to realize remote monitoring and automatic switching control.
How to confirm compatibility before ordering?
Provide RMU nameplate information, original mechanism photos, mounting dimensions and control voltage parameters. Our engineering team will complete professional compatibility evaluation and scheme confirmation.
