The EKL-4 Panel-type Grounding and Short-Circuit Fault Indicator is a panel-mounted (cabinet-mounted) intelligent fault detection device.
It’s used in 6-35kV distribution network systems, to monitor the grounding faults and phase-to-phase short-circuit faults of the lines in real time, and provide local fault location indications for maintenance personnel through distinct indicator lights.
• Panel-mounted installation: Directly integrated into the instrument door of the switch cabinet, without the need to modify the main circuit.
• Dual-fault identification: It can accurately distinguish between short-circuit faults (where current surges) and grounding faults (in small current systems).
• Intelligent anti-interference: Capable of identifying interference such as closing surge current, and avoiding false alarms.
• Multiple reset methods: Support automatic delay reset, manual button reset, and remote reset (optional).

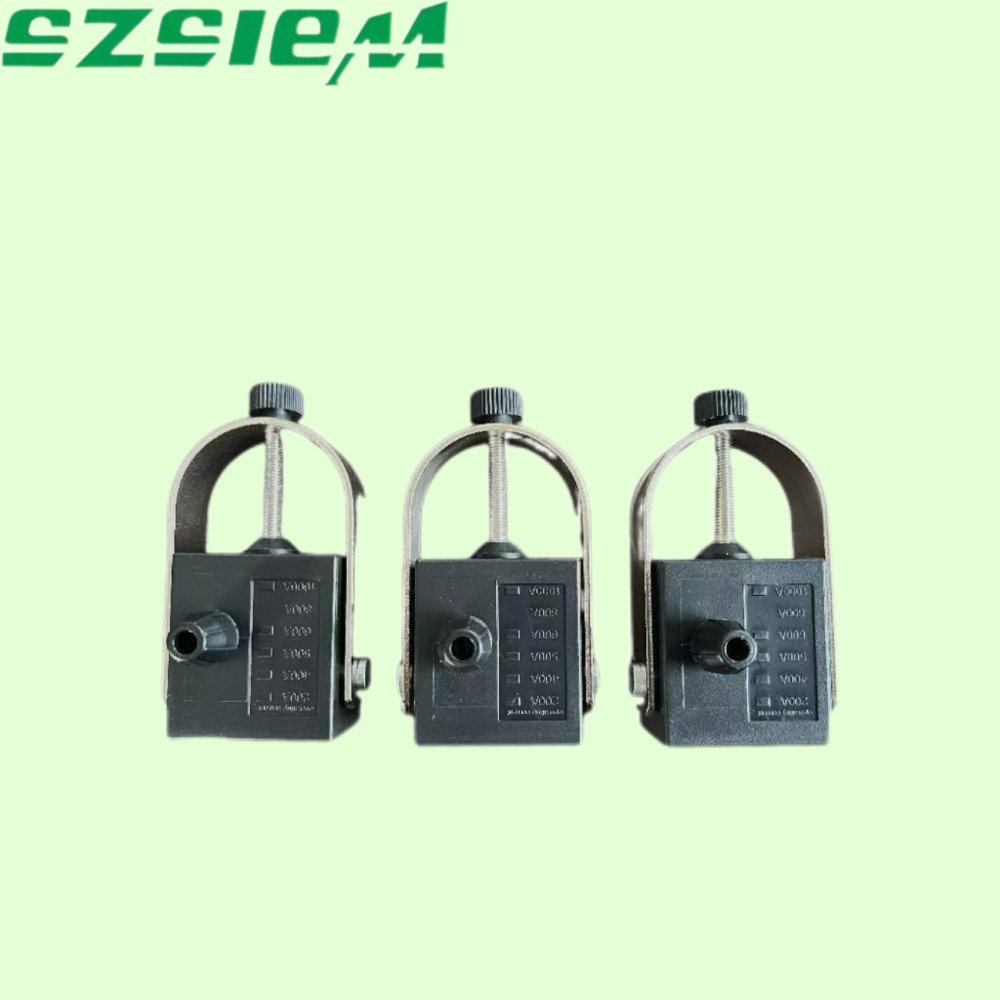

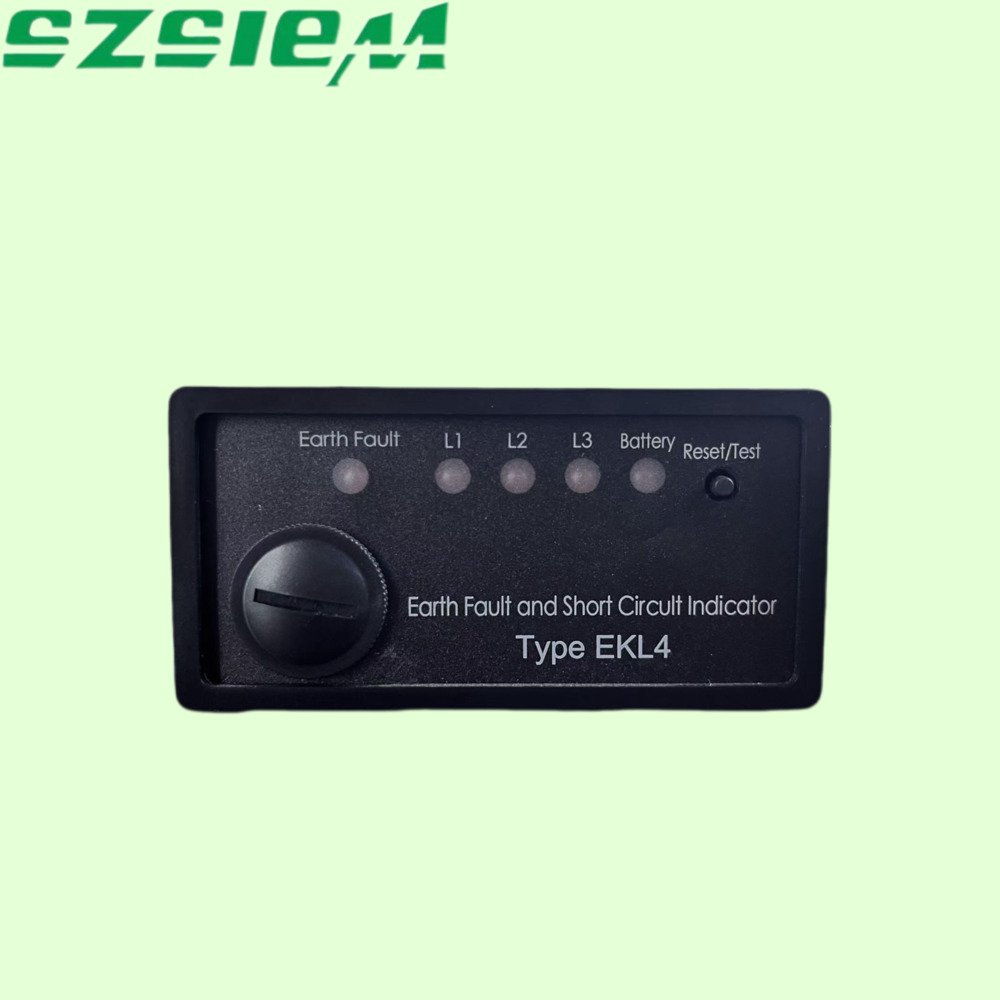

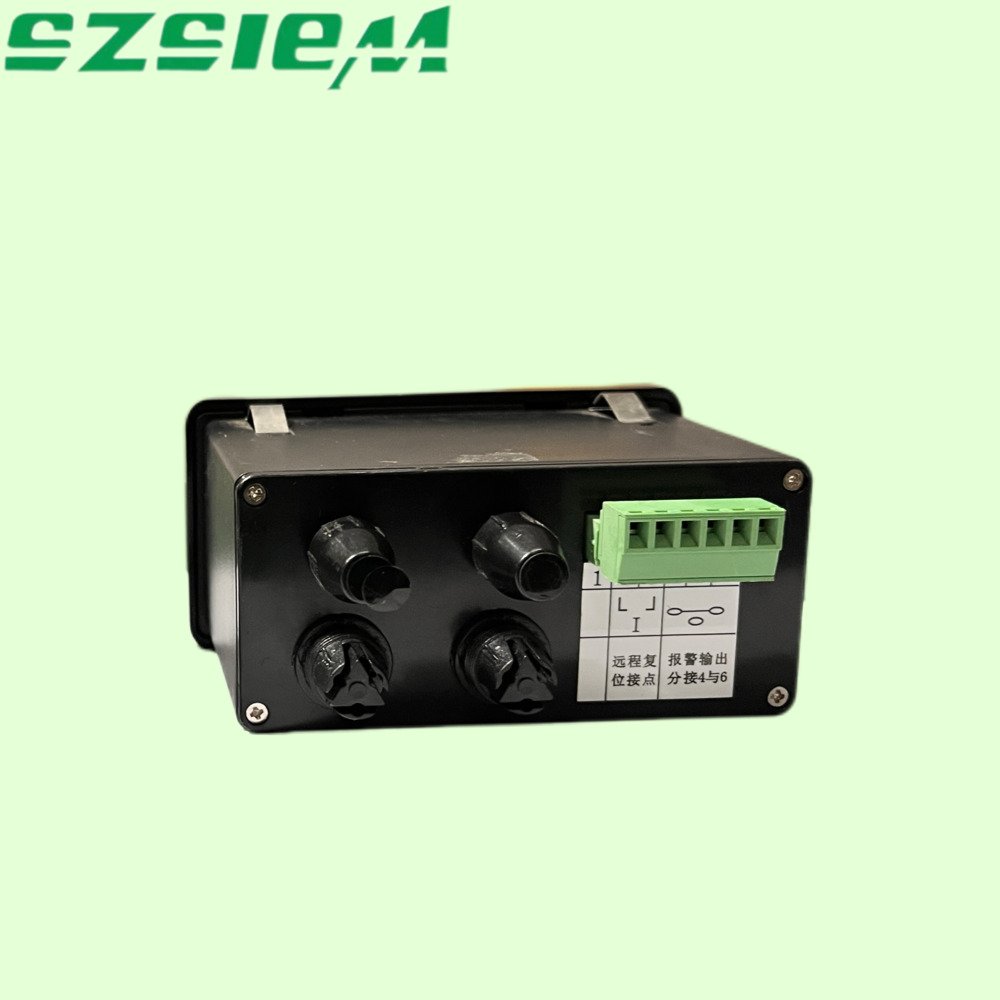

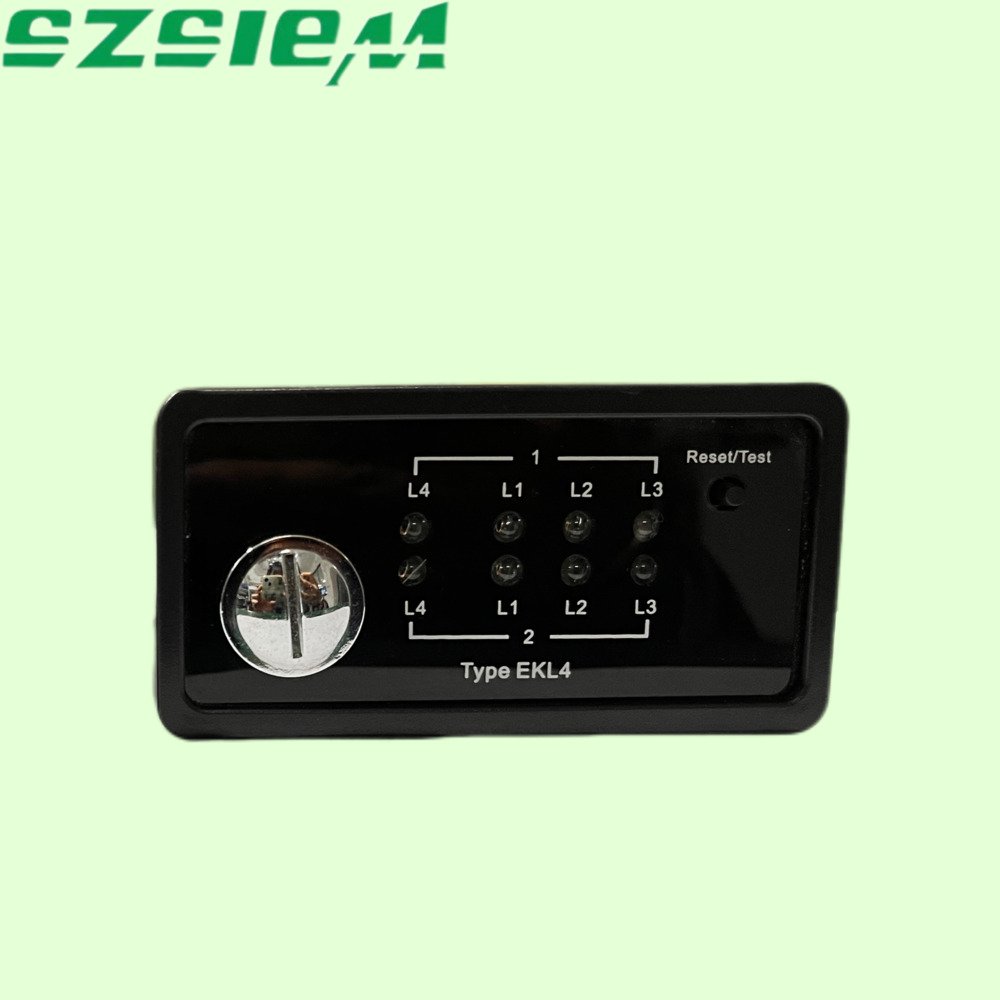

• Intuitive status indication: The fault type and operating status are clearly displayed through red/yellow/green LED lights.
| Item | Typical Parameters |
|---|---|
| Applicable Voltage | 6kV, 10kV, 35kV |
| Short-Circuit Detection | Current surge ≥1.5 times rated, duration ≥30ms |
| Ground Fault Detection | Zero-sequence current range 0.5A–200A |
| Display Method | LED indicators (Red: Short-circuit / Yellow: Ground fault / Green: Normal) |
| Communication Interface | Optional RS485, Wireless (4G/NB-IoT, etc.) |
| Power Supply | AC/DC 85-265V or Battery |
| Protection Rating | IP54 (panel section) |
| Operating Temperature | -20℃ ~ +70℃ |
| Installation Method | DIN rail or panel mounting |
| Fault Recording | Supports storage of recent fault events (type, time, current value) |
| Auto Reset | Programmable delay (6/12/24 hours default) |
• Urban distribution network: Fault location of ring main units, switchgear stations, and cable branch boxes.
• Power distribution in industrial and mining enterprises: Fault monitoring and rapid isolation of high-voltage outgoing circuits within the factory.
• Infrastructure power supply: Power distribution monitoring for key locations such as railways, tunnels, and airports.
• Renovation of old stations: Enhance the ability to detect faults without replacing the primary equipment.
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
