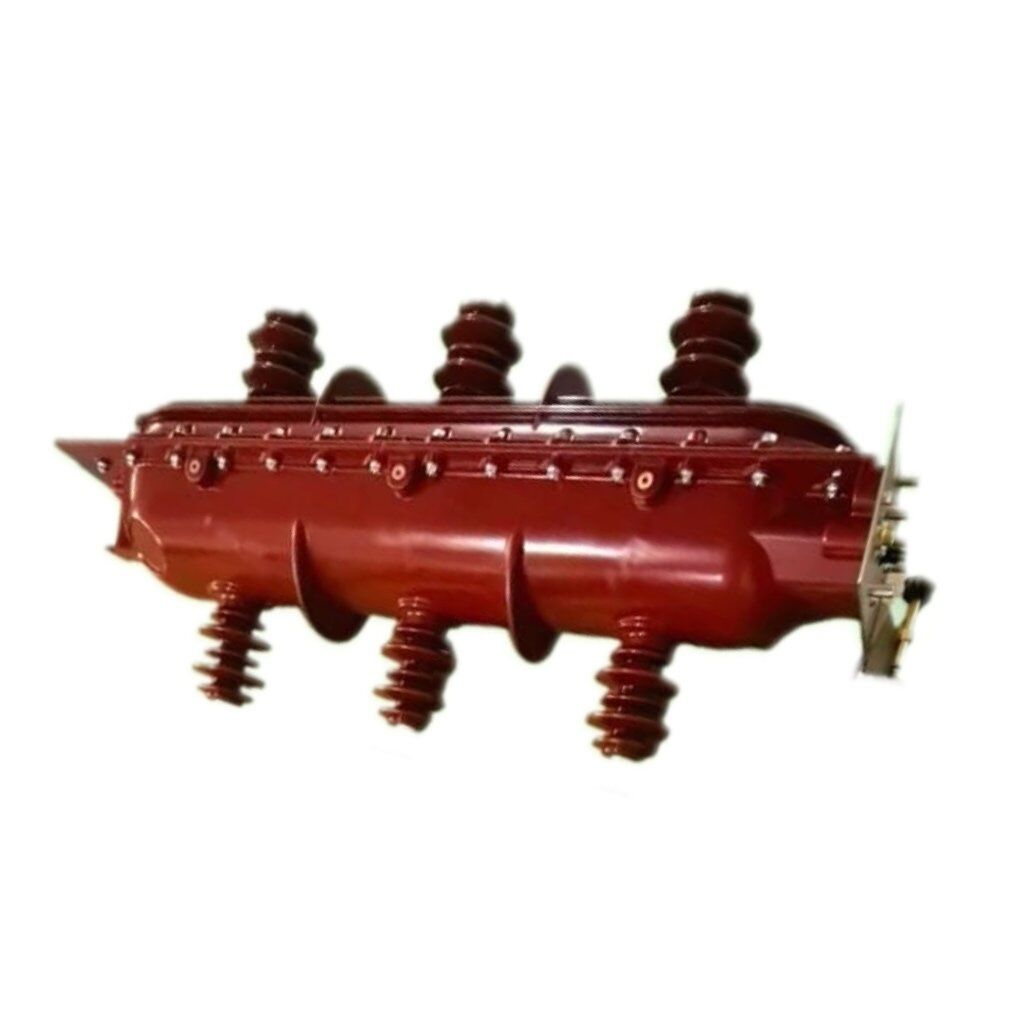

Working Principle of FLN36 36 kV Load Break Switch
The core working principle of the FLN36 36 kV Load Break Switch relies on high-purity SF6 gas insulation and arc extinguishing technology. All contact switching actions are completed inside a fully sealed gas-insulated chamber. During normal load switching, the moving contact separates from the static contact, and SF6 gas instantly extinguishes the switching arc while rapidly restoring dielectric strength, ensuring safe and reliable circuit breaking and closing operations.
Equipped with a precise mechanical transmission structure, the operating mechanism is stably linked with internal contacts to achieve accurate switching positioning. The standard three-position design realizes three independent working states: Close, Open and Earth. Matched with the complete switchgear five-prevention interlock system, it effectively prevents misoperation such as live grounding and faulty closing, greatly improving the overall safety and stability of 36 kV medium voltage distribution systems.
It is critical to clarify that the 36 kV 630A SF6 Load Break Switch is designed for normal load current switching and isolation, not for short-circuit fault breaking. In scenarios requiring large fault current interruption, users must cooperate with circuit breakers or fuse protection combinations to form a complete system protection scheme.
Professional Application for 36 kV SF6 Load Break Switch for RMU
As a dedicated FLN36 SF6 Load Break Switch for RMU, the FLN36 36 kV 630 A model is deeply optimized for ring main unit assembly and is widely used in various 36 kV compact gas-insulated switchgear. Its standardized installation size, reserved interface and compact structural design make it highly compatible with mainstream modular RMU cabinets on the market.
In practical RMU system applications, this 630 A SF6 Load Break Switch undertakes multiple core functions:
- Incoming and outgoing cable switching control for 36 kV ring network cabinets
- Ring network sectionalizing and loop power supply switching
- Transformer feeder switching, isolation and power-off maintenance protection
- Cable circuit isolation and residual voltage release
- Safe earthing operation during equipment overhaul
- Stable switching and distribution control for medium voltage terminal circuits
For OEM switchgear manufacturers and engineering renovation projects, the electrical parameters and mechanical interface dimensions of the 36 kV Indoor SF6 Load Break Switch are fully standardized, which can effectively reduce cabinet design difficulty, shorten production cycles and improve equipment consistency.
Three-Position Structural Advantages of SF6 Load Break Switch with Earthing Switch
This Three-Position SF6 Load Break Switch adopts an integrated Close/Open/Earth three-position design, which is the mainstream high-safety configuration for 36 kV medium voltage switching equipment. Compared with split grounding structures, the integrated design features higher mechanical linkage accuracy and safer operation logic.
Close position
The internal main contacts are fully closed, stably carrying 36 kV/630A rated operating current, ensuring continuous and stable power supply for distribution loops.
Open position
The main circuit is completely disconnected to form a safe electrical isolation gap, providing reliable isolation guarantee for subsequent circuit maintenance and equipment inspection.
Earth position
With the unique advantage of the SF6 Load Break Switch with Earthing Switch, the circuit is reliably grounded after power failure, completely eliminating residual voltage risks and ensuring zero-risk operation for maintenance personnel.
All switching actions are restricted by mechanical interlocking logic, which strictly prohibits illegal operation sequences and fundamentally avoids safety accidents caused by human misoperation.
Difference between 36 kV 630A Load Switch and Circuit Breaker
In 36 kV medium voltage distribution system design, many engineering teams confuse load break switches with circuit breakers, but the two have essential functional differences and clear application boundaries:
FLN36 36 kV 630A SF6 Load Break Switch: Core functions include normal load current closing/opening, circuit isolation and safe earthing. It is only applicable to conventional load switching scenarios and cannot break short-circuit fault current. It is mainly used for loop switching, terminal distribution and equipment isolation protection in RMU systems.
Medium Voltage Circuit Breaker: Professionally designed for short-circuit fault breaking and overload protection, matched with protection relays to realize automatic fault tripping, suitable for substation main incoming lines and key feeder protection.
Switch-Fuse Combination Scheme: On the basis of load break switch switching functions, medium voltage fuses are matched to realize short-circuit and overload protection, which is the most economical and reliable protection solution for 36 kV distribution transformers and terminal feeders.
Engineering selection must be based on system protection logic rather than simply referring to voltage and current parameters to ensure matching equipment functions and project demands.
Technical Specifications of FLN36 36 kV 630A SF6 Load Switch
Our FLN36 36 kV Load Break Switch strictly complies with international medium voltage electrical equipment standards, with stable and complete technical parameters to meet global project export requirements:
| Parameter Item | Technical Specification |
| Product Name | FLN36 36kV 630A SF6 Load Break Switch |
| Rated Voltage | 36kV (36kV-class medium voltage system) |
| Rated Current | 630A |
| Installation Type | Indoor |
| Insulation & Arc Extinguishing Medium | SF6 Insulating Gas |
| Switching Structure | Three Position (Close / Open / Earth) |
| Core Application | RMU, Medium Voltage Switchgear, Transformer Feeder, Cable Distribution System |
| Operating Mechanism | Manual / Motorized Customizable |
| Working Frequency | 50Hz / 60Hz (Customized) |
| Core Advantage | Compact structure, maintenance-free, high safety, strong environmental adaptability |
Note: Power-frequency withstand voltage, lightning impulse voltage, short-time withstand current, gas pressure and mechanical endurance parameters are customized according to project requirements. Please consult our engineering team for official datasheets and type test reports.
Operating Mechanism Configuration & Customization
The operating mechanism determines the switching stability and intelligent level of the 36kV 630A SF6 Load Break Switch. We provide two mainstream configuration solutions to adapt to different project operation modes:
Manual Operating Mechanism
Suitable for conventional unattended substations and ordinary distribution projects. Featuring simple operation, stable machanical performance and low failure rate, it meets daily manual switching and maintenance operation demands, with low later maintenance cost and high cost performance.
Motorized Operating Mechanism
Customized for smart grid and distribution automation projects. It supports remote electric opening and closing, real-time position signal feedback, and docking with SCADA system. Equipped with auxiliary contacts and electric interlocking protection, it realizes intelligent unattended operation of 36KV distribution network.
For renovation and replacement projects, we support customized motor voltage, operating torque, mechanical travel and interface parameters to ensure perfect matching with existing switchgear cabinets.
Main Application Scenarios of 36KV Indoor SF6 Load Break Switch
In equipment replacement and cabinet renovation projects, many purchasers only refer to 36KV/630A parameters, which easily causes mechanical and electrical mismatch. To ensure successful replacement, the following key points must be fully verified:
-
System insulation level and short-circuit withstand current matching
-
Cabinet mounting size, hole position and pole spacing parameters
-
Primary terminal position, wiring direction and phase spacing
-
Operating shaft position, mechanical travel and operating torque
-
Earthing structure and interlocking system matching
-
Auxiliary contact quantity and signal feedback mode
-
SF6 gas chamber structure and air tightness parameters
We provide free compatibility evaluation services. Customers can provide existing switch photos, dimensional installation and operation failures.
Product Quality Testing & Standard Compliance
As a professional 36kV SF6 Load Break Switch Manufacturer, we implement full-process quality control for every FLN36 36kV 630A SF6 Load Break Switch. All products pass routine tests and type, with complete qualification documents to ensure global project compliance.
Core test ltems include insulation withstand test, contact resistance test, mechanism operation endurance test SF6 gas leakage test, interlocking function test and switching performance test. All products comply with international IEC standards, with complete type test reports, factory test reports and technical drawings, supporting project inspection and export certification.
Engineering Selection Guide
To help customers quickly select the most suitables FLN36 36kV Load Break Switch configuration,
we summarize standardized selection steps:
1. Confirm system parameters: Clarify 36kV system voltage, actual load current and short-circuit level
2. Define application scenario: Determine RMU assembly, transformer feeder, ring network switching or equipment replacement
3. Select structural configuration: Confirm whether three-position earthing function is required
4. Match operating mechanism: Choose manual or motorized mode according to intelligent operation demands
5. Verify cabinet interface: Confirm mounting dimensions and mechanical interface for OEM and replacement projects
6. Confirm project standards: Match regional electrical standards and export certification requirements
Why Choose US as Your FLN36 SF6 Load Switch Supplier
We are a professional FLN36 Load Break Switch Manufacturer and reliable FLN36 SF6 Load Switch Supplier integrating R&D, production and sales of medium voltage SF6 switching equipment. Focusing on 36kV medium voltage distribution component manufacturing for many years, we have mature production technology and strict quality control system.
We provide standardized 36kV 630A SF6 Load Break Switch products, customized configuration, OEM supporting services and complete technical support. All equipment features stable performance, low gas leakage rate and log service life, helping global switchgear manufacturers and EPC contractors reduce procurement costs impreove project operational reliability.
FAQ
What is FLN36 36kV 630A SF6 Load Break Switch?
The FLN36 36kV 630A SF6 Load Break Switch is a three-position 36kV Indoor SF6 Load Break Switch with 36kV rated voltage and 630A rated current. It uses SF6 gas for insulation and arc extinguishing, mainly used for load switching, isolation and earthing protection of 36kV medium voltage RMU and switchgear systems.
Is FLN36 36kV load break switch suitable for RMU?
Yes. This model is a dedicated 36kV SF6 Load Break Switch for RMU. It has compact size, standardized interface and high compatibility, which is specially optimized for gas-insulated ring main unit assembly and is widely used in 36kV RMU complete sets of equipment.
Does this 36kV 630A load break switch have earthing function?
Yes. It adopts three-position integrated design, belonging to high-performance SF6 Load Break Switch with Earthing Switch, which can complete safe grounding isolation of circuits to ensure maintenance safety.
What is the difference between load break switch and circuit breaker?
FLN36 SF6 Load Break Switch is used for normal load switching and isolation, while circuit breakers are used for short-circuit fault breaking. The two have difference functional positioning and cannot be replaced arbitraily in engineering design.
Can the 36kV 630A model be customized with motorized operation?
It can be used for 36kV old switch renovation and replacement, but mechanical dimensions, electrical parameters and interlocking logic need to be fully verified to ensure compatibility.
Request Custom Quotation & Technical Datasheet
If you are sourcing a FLN36 36kV 630A SF6 Load Break Switch for an RMU, medium-voltage switchgear project or replacement application, send us the following information:
36kV / 630A + switchgear or RMU model + operating mechanism + mounting dimensions + required electrical parameters
Our engineering team can review the application, verify the configuration and provide the corresponding technical documentation and quotation.
