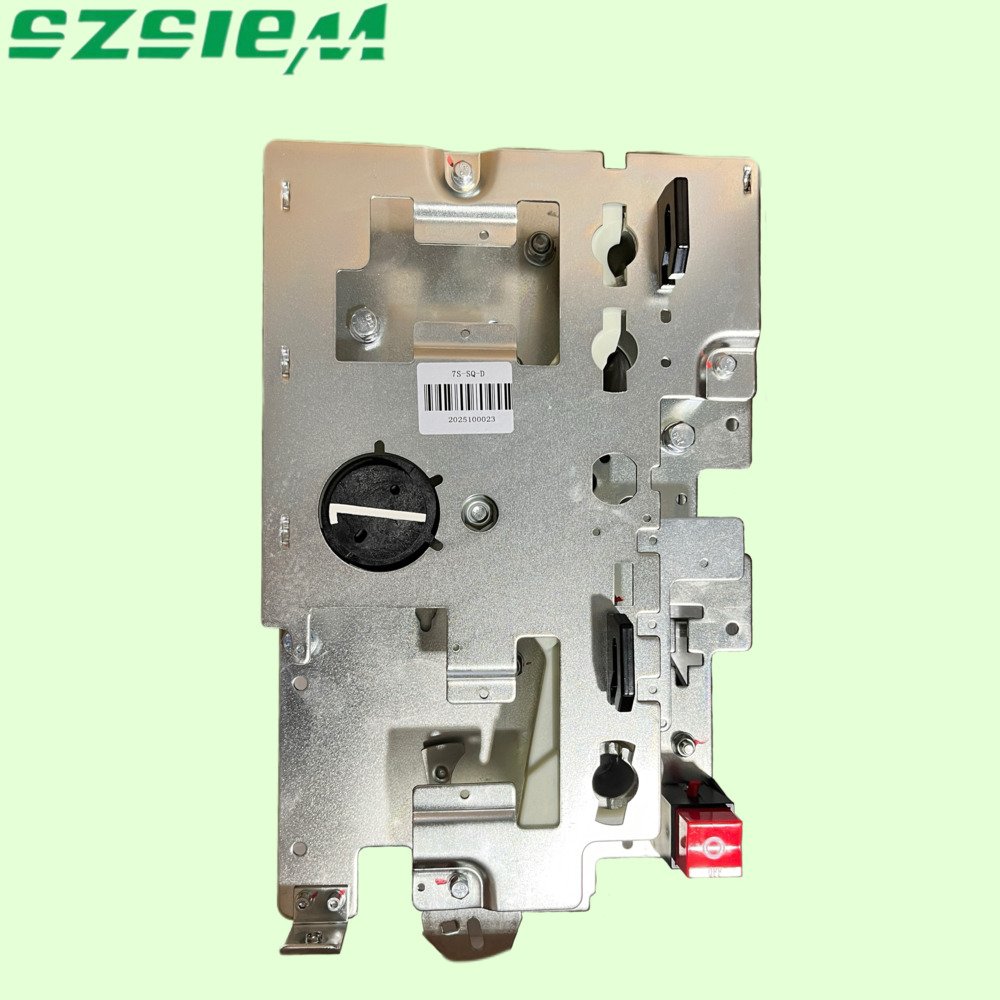

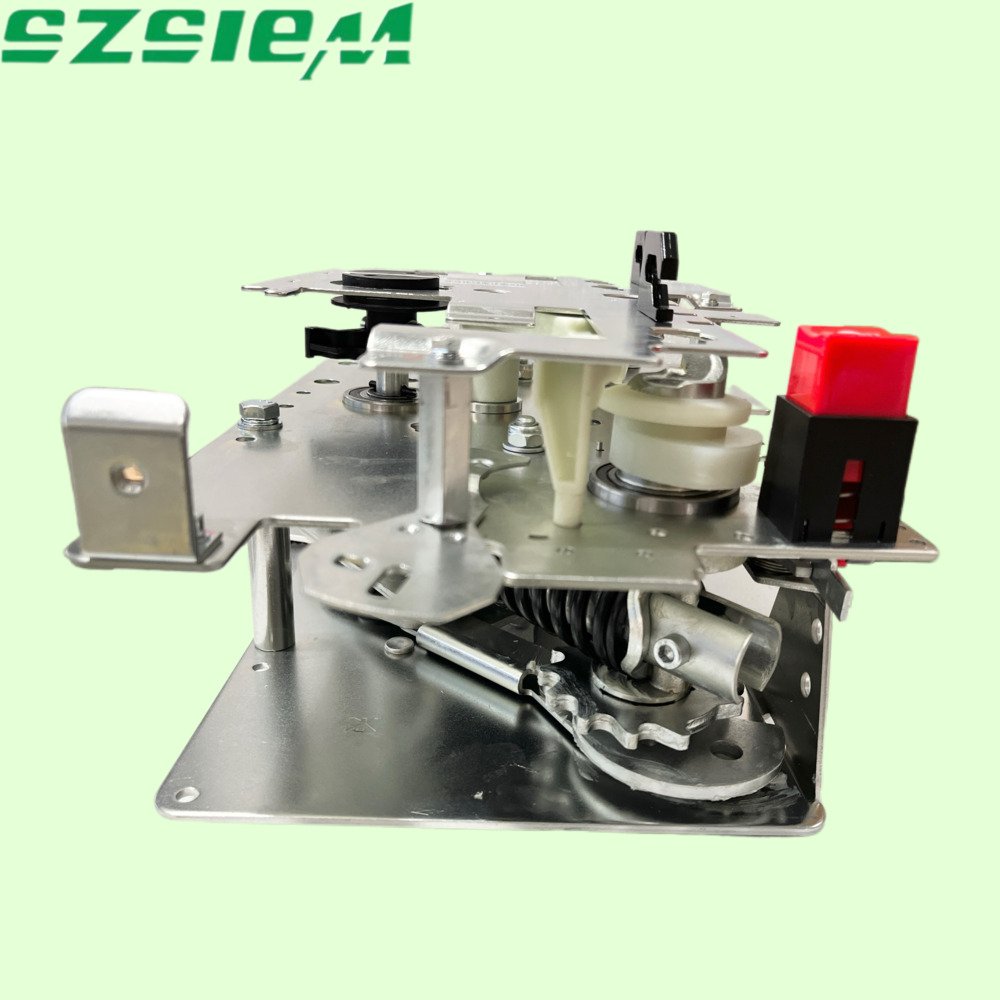

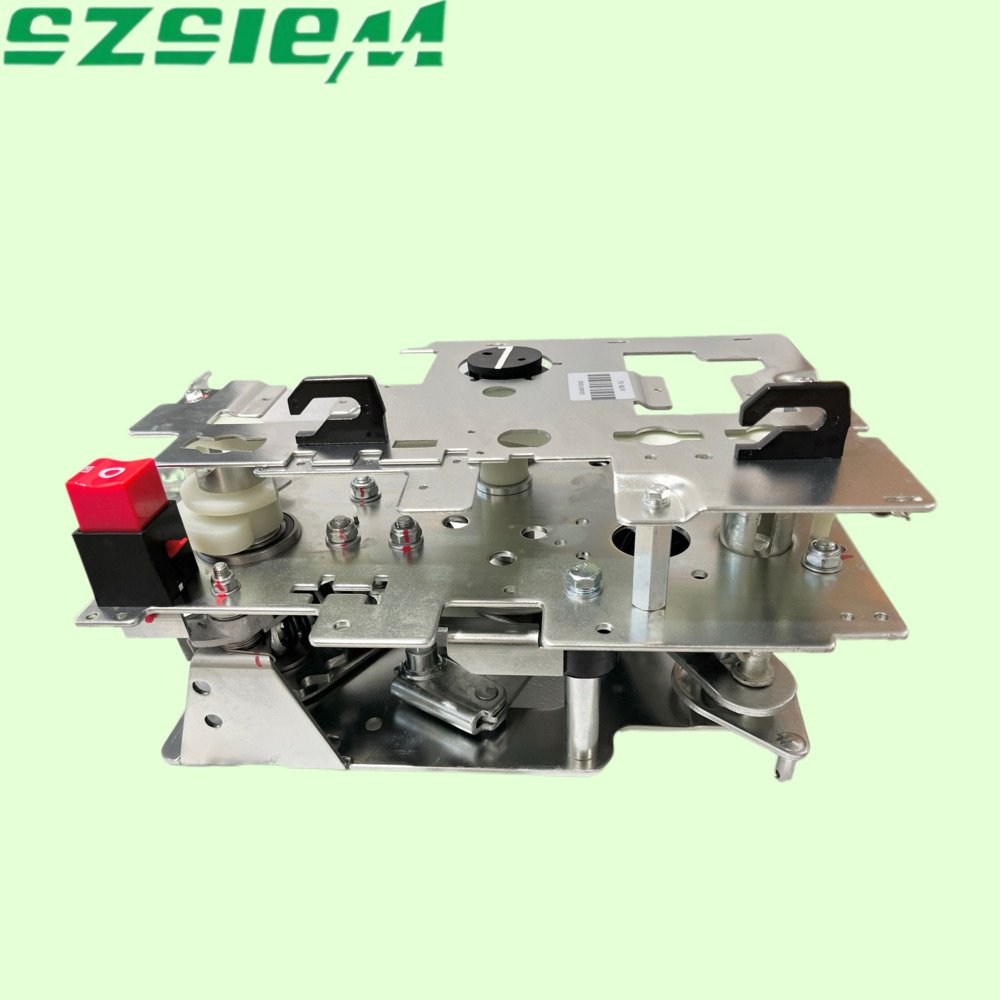

The 7S-SQ-D is a spring-stored electric operating mechanism specifically designed for the SM6 series air-insulated switch cabinets.
It is mainly used to drive the fixed three-position disconnectors/grounding switches, enabling the electric operation and automatic control of the switch equipment.
• Specialized Design: Specifically customized for the SM6 cabinet-type fixed three-position switch, the mechanical interface is fully compatible
• Spring Energy Storage Mechanism: Motor-driven spring energy storage, the operation is completed instantly upon release, not relying on continuous power supply
• Forced Mechanical Program Lock: Built-in cam mechanism to enforce the operation sequence, preventing jumping position operations
• Integrated Five-Prevention Interlock: Achieves complete mechanical and electrical interlocking with circuit breakers, cabinet doors, etc.
• Anti-misoperation Design: Physically prevents malicious misoperations such as closing the grounding switch while energized
• Self-Preservation of Status: Mechanical locking occurs after the operation is completed to prevent accidental displacement
• Dual Status Indicators: Local display through mechanical window + remote signal feedback via auxiliary contacts
• Fast Response: Storage time ≤ 10 seconds, operation time ≤ 3 seconds
• Low Power Consumption: The storage motor has moderate power, suitable for DC system power supply
• Environmental Adaptability: Protection level IP54, suitable for distribution room environment
| Compatible Switchgear | SM6 Series Air-Insulated Switchgear |
| Operating Object | Fixed Three-Position Disconnector/Earthing Switch |
| Rated Voltage | DC 48V/110V/220V, AC 220V (optional) |
| Spring Charging Motor Power | 120–200 W |
| Spring Charging Time | ≤10 seconds (at rated voltage) |
| Operation Time | Close/Open/Earthing: ≤3 seconds |
| Mechanical Life | ≥10,000 operation cycles |
| Protection Rating | IP54 |
| Operating Temperature | –25 °C to +70 °C |
| Auxiliary Contacts | 8–12 sets (NO/NC configurable) |
| Position Indication | Mechanical indicator: I (Close) / O (Open) / E (Earth) |
| Installation Method | Front operator-panel mounting |
| Interlocking Interface | Standard mechanical interlock interface |
