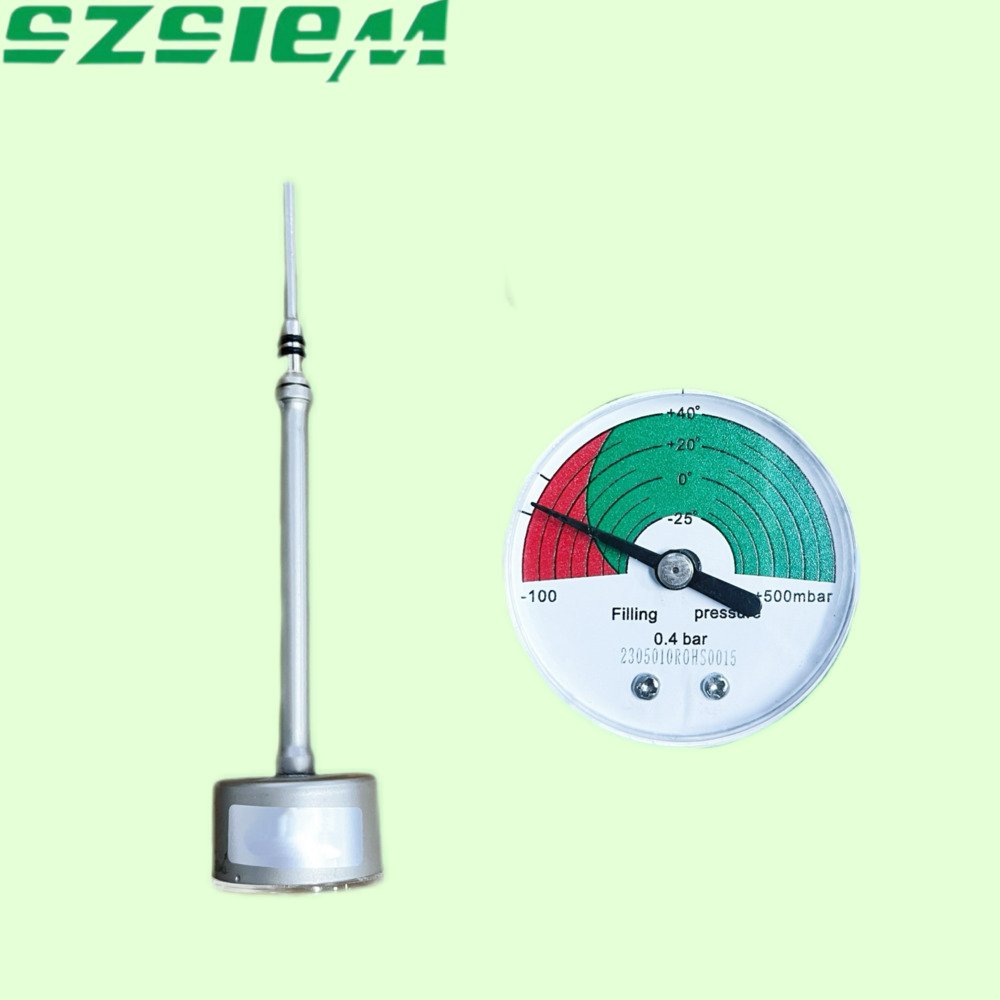

The 7S-S6-GC is a mechanical, temperature-compensated density meter designed for SF₆ switchgear.
• Monitoring Unit: Includes pressure sensing probe and long-rod sealed connection assembly;
• Display Unit: Dial with temperature compensation (marked with pressure range and temperature scale).
• Temperature Compensation Design: Integrated temperature scale on dial corrects SF₆ pressure deviations at varying temperatures, ensuring measurement accuracy;
• Visual Status Indication: Red (low pressure) and green (normal) zones provide intuitive gas condition recognition;
• Sealing Adaptability: Long rod + sealed connection structure adapts to monitoring enclosed chambers in SF₆ charging equipment.
• Pressure Monitoring: Real-time display of SF₆ gas pressure reflects the state of the equipment’s insulating medium;
• Fault Warning: Alerts for gas leakage when pressure enters the red zone, requiring prompt maintenance;
• Operational Support: Combined with temperature scales, assists in determining whether actual SF₆ density meets insulation requirements.
| Parameter Category | Specification Details |
|---|---|
| Measuring Medium | SF₆ gas |
| Measurement Range | -100~500mbar |
| Rated Charging Pressure | 0.4bar (at 20℃ ambient temperature) |
| Connection Method | Sealed long-rod connection |
| Applicable Equipment | SF₆ gas-insulated switchgear, load switches, etc. |
• High-Pressure Inflatable Equipment Accessories: Used in SF₆ switchgear, load switches, and similar equipment to monitor internal gas pressure;
• Equipment Operation and Maintenance: Serves as a condition monitoring component for SF₆ equipment, supporting gas leak detection and pressure replenishment operations;
• Power System Maintenance: Assists in assessing the health status of insulating media in pressurized equipment, ensuring safe operation.
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
