| Parameter Category | Detailed Specification |
|---|---|

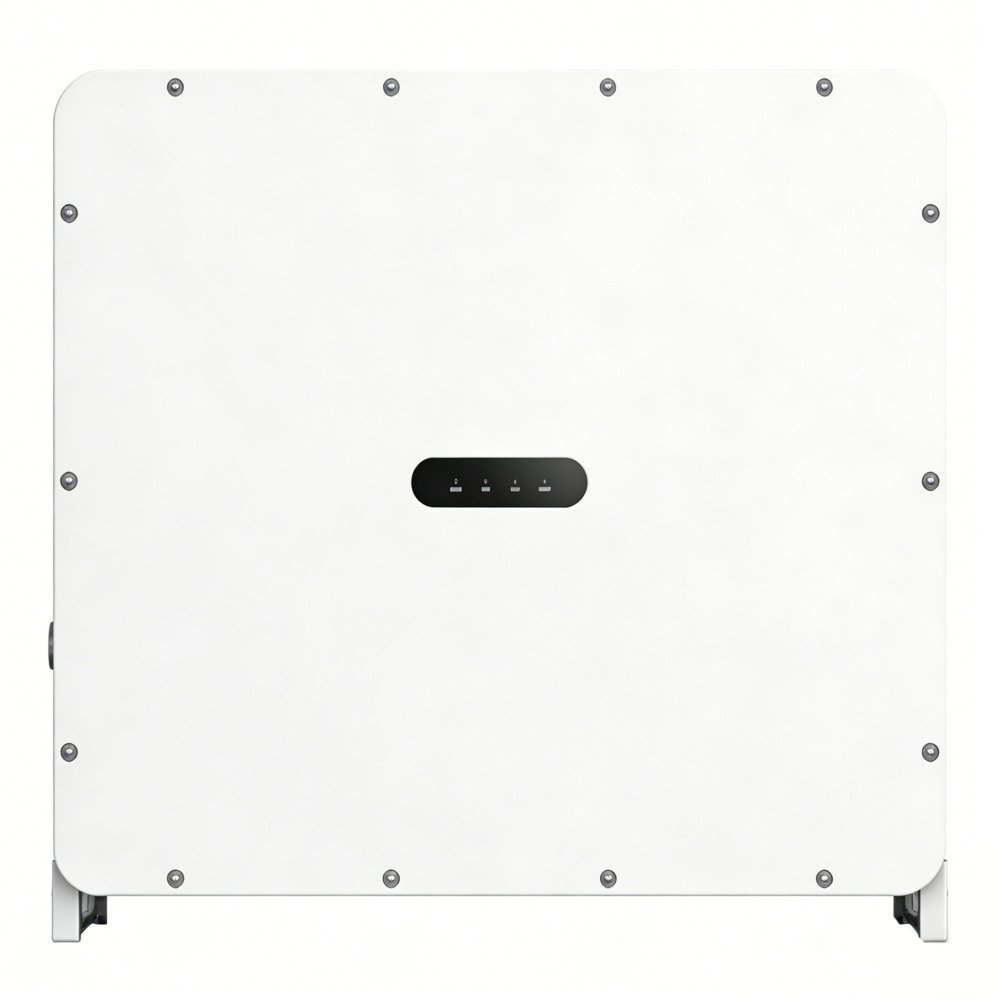

| Model | 320K-D01 |
| DC Side Parameters | Max Input Voltage: 1500V
Startup Voltage: 550V Working Voltage Range: 500V~1500V MPPT Quantity: 8 channels 65A Max Input Current per MPPT MPPT Input Strings: 8×4 Total 32 String Inputs |
| AC Side Parameters | Rated Output Power: 320kW
Max Active Power (cosθ=1): 352.0kW Rated Grid Voltage: 800V (3W＋PE) Rated Output Current: 230.9A Max Output Current: 692.8A 3x Max Reactive Current Overload (1.25s duration) Rated Grid Frequency: 50Hz Power Factor: 0.8 leading ~ 0.8 lagging Total Current Harmonic Distortion (THD): ＜3% |
| Efficiency | Max Efficiency: 99.00%
China Efficiency: 98.50% |
| Protection & Core Functions | DC/AC Level 2 Surge Protection, Insulation Resistance Detection
Residual Leakage Current Detection, String Connection Detection DC Reverse Polarity Protection, Anti-Islanding Protection AC/DC Terminal Over-Temperature Protection, Intelligent Isolating Switch Built-in PID Recovery, Black Start Function Grid-Following/Grid-Forming Mode Switching, Optional AFCI |
| General Parameters | Protection Grade: IP66
Working Temperature Range: -40℃ ~ ＋60℃ Cooling Method: Intelligent Air Cooling Max Operating Altitude: 4000m (derating required above 3000m) Display: LED Indicator + Wi-Fi + Mobile APP Communication: PLC / RS485 / 4G (optional) DC Terminal: DC Connector AC Terminal: OT / DT (supports max 400mm² wire) |
| Mechanical Parameters | Dimension (W×H×D): 1135×919×418mm
Net Weight: ≤142kg |
