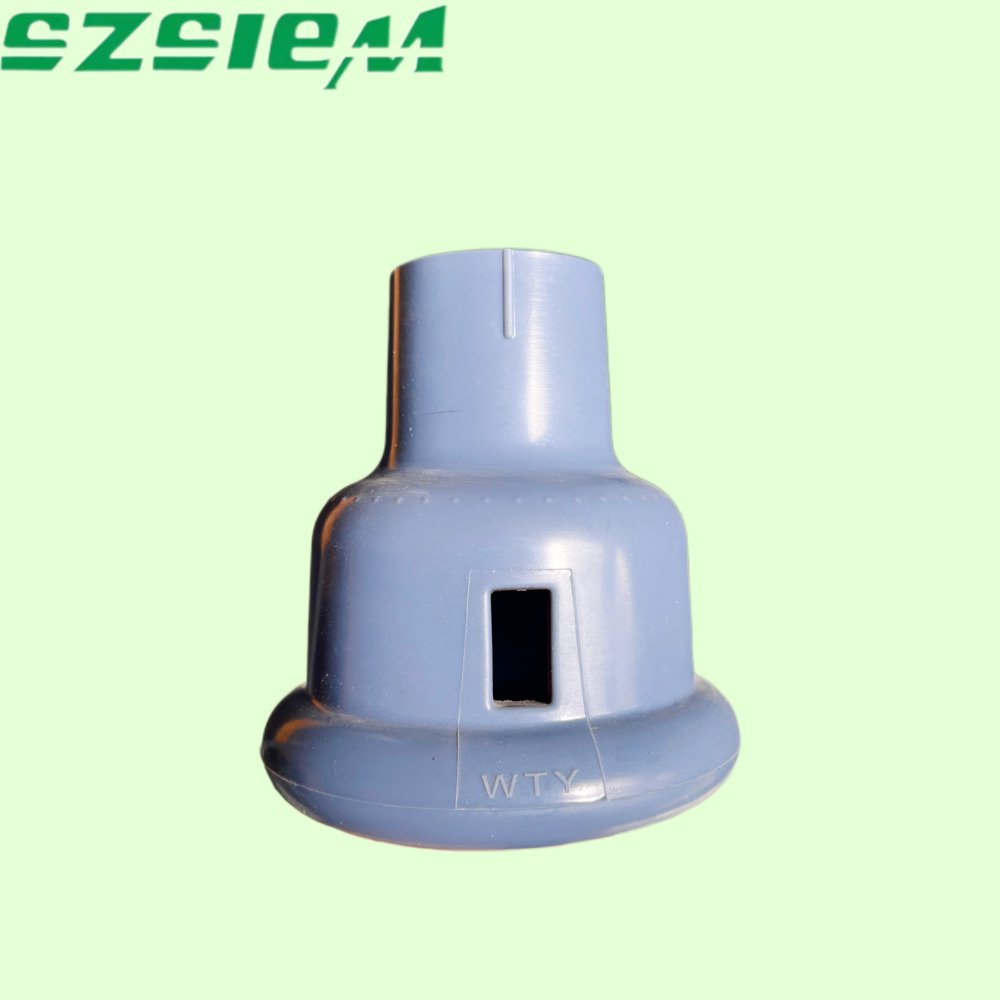

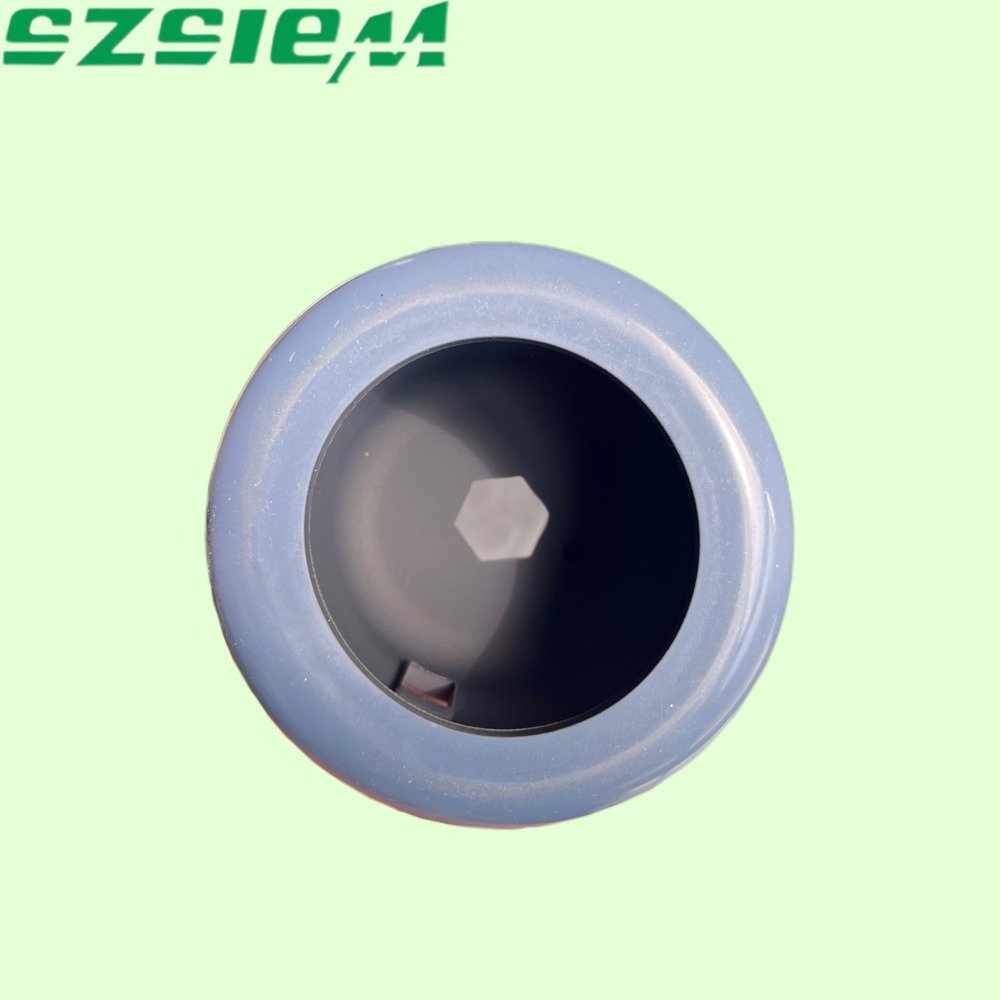

1. Superior Electrical Insulation: Molded from high-temperature cured epoxy resin, it provides reliable high-voltage isolation between live contacts and earthed metal frames, meeting strict creepage distance requirements for SF6 gas-insulated switchgear.
2. Arc & Corrosion Resistance: Smooth, dense surface withstands short-circuit arc impacts and SF6 gas corrosion, ensuring long-term durability in harsh operating environments.
3. SF6 Gas-Tight Design: Precision-machined structure integrates with the RMU gas compartment, preventing SF6 leakage and maintaining the integrity of the gas insulation system.
4. Standardized Compatibility: Universal dimensions fit 12kV/24kV SF6 ring main units and inflatable cabinets, enabling easy installation and retrofitting with mainstream switchgear models.
5. Physical & Electrical Protection: Acts as a protective cover to prevent accidental contact with live parts, while enhancing insulation performance for safe operation.
| Parameter | Specification |
|---|---|
| Rated Voltage | 12kV / 24kV |
| Insulation Material | High-temperature cured epoxy resin |
| Insulation Resistance | ≥1×10¹² Ω |
| Dielectric Strength | ≥20kV/mm |
| Operating Temperature | -40°C ~ +85°C |
| Protection Grade | IP67 (when installed in SF6 gas compartment) |
| SF6 Leakage Rate | ≤1×10⁻⁶ mbar·l/s |
| Compliance | IEC 60282, GB 3906 |
1. SF6 Ring Main Units : Core insulation accessory for 12kV/24kV gas-insulated switchgear, isolating live contacts in earthing switch and circuit breaker chambers.
2. Urban & Industrial Power Grids: Deployed in urban distribution networks, industrial substations, commercial buildings, and data centers to ensure reliable insulation and safety.
3. Renewable Energy Integration: Used in solar/wind farm grid-tie systems to protect medium-voltage distribution links within SF6 RMU configurations.
4. Smart Grid Systems: Supports intelligent monitoring and interlocking functions, enhancing the reliability of modern power distribution infrastructure.
We offer comprehensive OEM and ODM services tailored to your specific requirements. Should you require customized products, our professional team will provide full support to meet your needs.
